Quick Details
-
Voltage:
-
Customer Requirement, according customer requirement
-
Dimension(L*W*H):
-
1450*1650*2200 mm
-
Warranty:
-
1 Year
-
CNC or Not:
-
Normal
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-

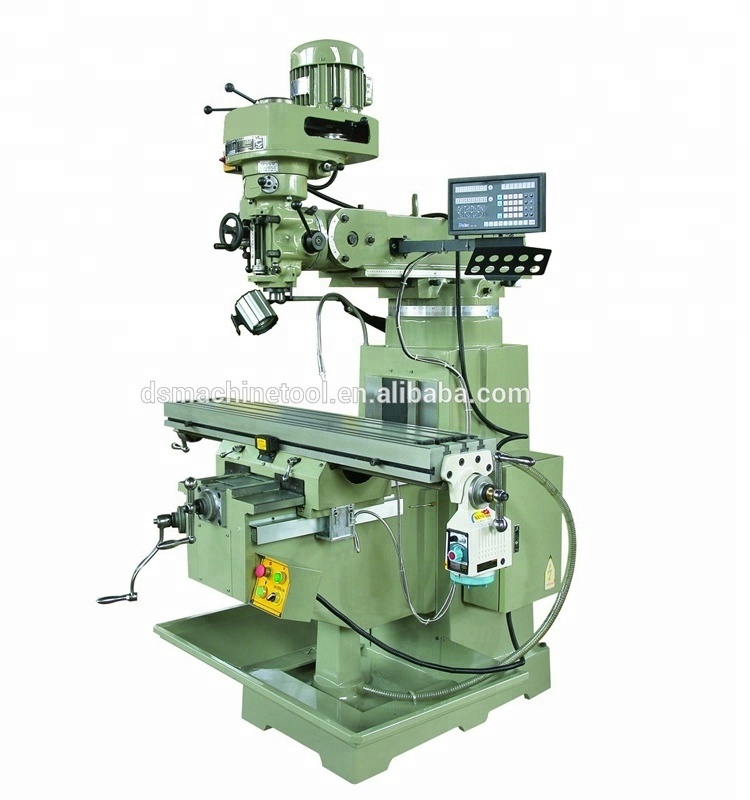

Digital readout for bridgeport taiwan turret vertical milling machine
-
Machine Type:
-
X6325
-
Color:
-
Custom-made
-
Table size:
-
1270*254mm
-
Spindle taper:
-
R8/NT30 (optional: ISO40 / NT40)
-
Weight:
-
1200kg/1300kg
-
Certification:
-
ISO9001 CE
-
Power:
-
2.2kw (3HP)
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DS MACHINETOOL
-
Model Number:
-
X6325
-
Voltage:
-
Customer Requirement, according customer requirement
-
Dimension(L*W*H):
-
1450*1650*2200 mm
-
Warranty:
-
1 Year
-
CNC or Not:
-
Normal
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Digital readout for bridgeport taiwan turret vertical milling machine
-
Machine Type:
-
X6325
-
Color:
-
Custom-made
-
Table size:
-
1270*254mm
-
Spindle taper:
-
R8/NT30 (optional: ISO40 / NT40)
-
Weight:
-
1200kg/1300kg
-
Certification:
-
ISO9001 CE
-
Power:
-
2.2kw (3HP)
Feature :
1.Cost-effective machine
2.2.2(3hp) Hight speed taiwan Vertical milling head
3.high stability
Performance:
1. Multi-purpose milling machines for workshop, single part production, design and training;
2.Universal use;
3.Head swivel through 2 axes, swivel: 90 degree; tilt: 45 degree;
4.More rigid and powerful with (X6325) 2.2KW / (X6330) 3.7KW motor;
5.X6325 Spindle Taper ISO30/R8 (optional: ISO40/NT40)
X6330 Spindle taper:ISO40/NT40
6.Manual coarse feed for quill, toggles to micro-feed;
7.Infinitely variable speed as optional;
8.Auto quill feed with 3 steps.
9. X6325 : rectangular way on Y axis slideway, swallow tail way on Z axis slideway
X6330 :rectangular way on Y Z axis slideway.
10. Hardened and ground work table
11. Hardened and ground on XYZ axis slide ways
|
Specifications |
X6325 |
|
Table size (mm) |
1270*254 or 1370*254 |
|
Travel(XYZ) (mm) |
750 (max:850)*400*400 |
|
T-Slot Numbe / width / spacing (mm) |
3 / 16 / 65 |
|
Max.table load (KG) |
350 |
|
Ram travel (mm) |
400mm |
|
Distance from spindle nose totable top (mm) |
0-460 |
|
Distance from spindle to column (mm) |
155-635 |
|
Spindle taper |
(Standard): R8/ISO30 (Optional): ISO40 |
|
Spindle travel |
127mm |
|
Spindle speed range (r.p.m) |
66-4540 (16 steps) |
|
Milling head tilt (left/right) |
90° |
|
Milling head tilt ( front / back) |
45° |
|
Spindle Motor (HP) |
3 |
|
N.W/G.W (KG) |
1200/1300 |
|
Packing size (mm) |
1450*1650*2200 |
X6330
|
Specification |
X6330 |
X6330V |
|
Spindle taper |
NT 40 vertical |
NT 40 vertical |
|
Milling head tilt angle |
Left / right:90 degree |
Left / right:90 degree |
|
Milling head tilt angle |
forward / backward 45 degree |
forward / backward 45 degree |
|
Spindle travel (mm) |
127 |
127 |
|
Spindle speeds range (r.p.m) |
80-3700 |
80-5440 |
|
Spindle nose to table top (mm) |
0-460 |
0-460 |
|
Arm travel (mm) |
550 |
550 |
|
Rotary arm |
360° |
360° |
|
Table size (mm) |
1370*305 |
1370*305 |
|
Max. travel of table (mm) |
750/850(max)*400*400 |
750/850(max)*400*400 |
|
T-slot number width distance (mm) |
3/16/65 |
3/16/65 |
|
Max.table load |
350kg |
350kg |
|
Main motor power (kw) |
3.7(5hp) ) |
3.7(5hp) |
|
Machine dimension (mm) |
1750*1650*2100 |
1750*1650*2100 |
|
N.W/G.W(kg) |
1300/1500 kg |
1300/1500 kg |
|
X6325 AND X6330 Standard Accessories: |
|
1.mill chuck(8pcs) 2.machine vice(160mm) |
|
3.machine light 4. clamping kit (58pcs) |
|
5.coolant pump |
|
6.chip tray |
|
7.Electrical panel |
|
8.tool box |
|
9.bellow cover |
|
10.Draw bar |
|
11.Handle oil pump |
|
12. Operation manual |
Rust-proof oil + plasticbag + fumigation-free wooden boxes+ wooden pallets/iron pallets;
After-sale services
1. Technical support online service provided.
2. Technical files service provided.
3. Spare parts replacement and repair service provided.
4. Questions will be replied within 24 hours
We will supply enough spare parts and accessories with our machine when shipment. Within one year after receiving our machine, If there are any damaged parts or accessoreis, We will supply them to you by air-mail free of charge.
