Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RENHOTEC
-
Model Number:
-
M8 Molding Cable Connector
-
Rated Voltage:
-
60V for 3/4/5/6 pin, 30V for 8 pin
-
Rated Current:
-
4A for 3/4/5 pin, 2A for 6 pin, 1.5A for 8 pin
-
Insulation resistance:
-
≥100 MΩ
-
Contact resistance:
-
<10 MΩ
-
Coupling method:
-
Threaded Connection
-
Mechanical operation:
-
>500 Mating Cycles
-
Wire gauge:
-
0.14/0.25/0.34mm²/(26/24/22AWG)
-
Temperature range:
-
-25°C ~ + 85°C
-
Protection degree:
-
IP67/IP68
-
Certificate:
-
CE ROHS
Quick Details
-
Type:
-
Circular Connector
-
Application:
-
Automotive
-
Gender:
-
Female
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RENHOTEC
-
Model Number:
-
M8 Molding Cable Connector
-
Rated Voltage:
-
60V for 3/4/5/6 pin, 30V for 8 pin
-
Rated Current:
-
4A for 3/4/5 pin, 2A for 6 pin, 1.5A for 8 pin
-
Insulation resistance:
-
≥100 MΩ
-
Contact resistance:
-
<10 MΩ
-
Coupling method:
-
Threaded Connection
-
Mechanical operation:
-
>500 Mating Cycles
-
Wire gauge:
-
0.14/0.25/0.34mm²/(26/24/22AWG)
-
Temperature range:
-
-25°C ~ + 85°C
-
Protection degree:
-
IP67/IP68
-
Certificate:
-
CE ROHS

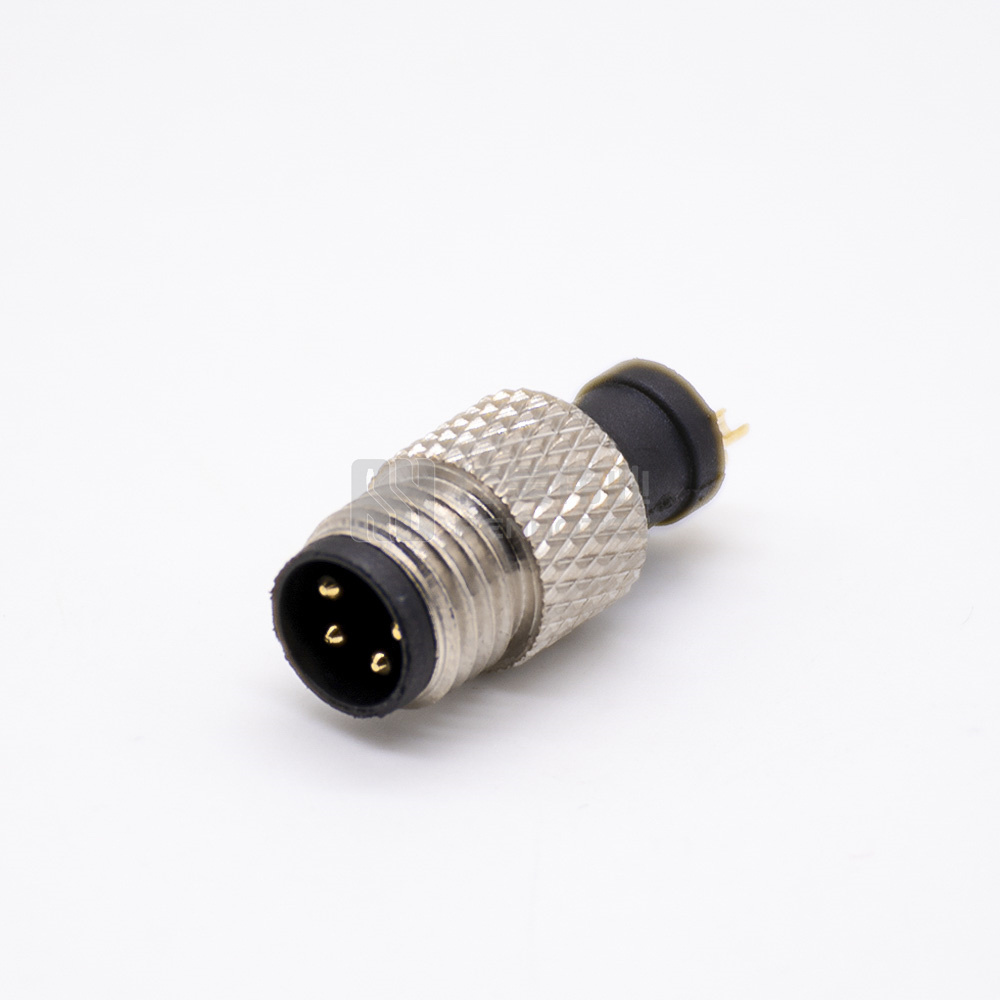

4way M8 Push Pull Electrical Connector Plug Male Cable Connector
M8 series with IP67/68 rating, provides with 3,4,5,6,8 contacts, different pin match specific applications.
We supply full series of M8 with field wireable connector, molded cable connector, panel connector, overmoled cables, wire harness and accessories. PVC (general) or PUR (oil resistant) cables available with customized length according to user requirements.
Products Feature
1. M8*1 thread locking mechanism, anti-vibration locking design;
2. Easy quick connect and disconnect coupling;
3. Pin configurations: 3,4,5,6,8 positions;
4. A, B coding available;
5. Shield and un-shield Version Available;
| M8 Field Wireable Connetor/M8 Molded Cable Connector | |
| Coding | A, B |
| Number of Positions | 3, 4, 5, 6, 8 |
| Gender | Male, Female |
| Orientation | Straight, Right Angle |
| Mounting Type | Cable |
| Shell Material | Metal, Plastic |
| Termination Style | Screw-joint, Solder Type |
| Shield | Shield, Unshielded |
