Quick Details
-
Brand Name:
-
Banatton/OEM
-
Model Number:
-
SRV-20000
-
Product Name:
-

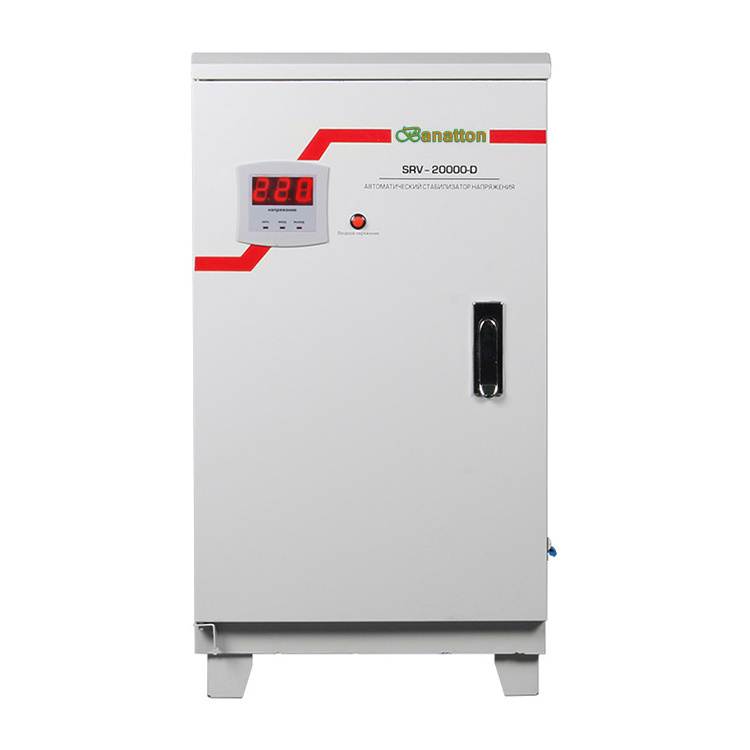

20KVA Single Phase AC Voltage Stabilizer
-
Input Voltage:
-
AC80-260V,140-260V
-
Output Voltage:
-
220V±8%
-
Protection:
-
Overvoltage/Overcurrent/Short Circuit/Overload/Overheat
-
Certificate:
-
CE / ISO9001/RoHS
-
Power factor:
-
0.8(can Customized 100%full Power)
-
Frequency:
-
>95%
-
Type:
-
Relay Control
-
Display:
-
LED
-
certificate:
-
CE / ISO9001
Quick Details
-
Phase:
-
Single Phase
-
Current Type:
-
AC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Banatton/OEM
-
Model Number:
-
SRV-20000
-
Product Name:
-
20KVA Single Phase AC Voltage Stabilizer
-
Input Voltage:
-
AC80-260V,140-260V
-
Output Voltage:
-
220V±8%
-
Protection:
-
Overvoltage/Overcurrent/Short Circuit/Overload/Overheat
-
Certificate:
-
CE / ISO9001/RoHS
-
Power factor:
-
0.8(can Customized 100%full Power)
-
Frequency:
-
>95%
-
Type:
-
Relay Control
-
Display:
-
LED
-
certificate:
-
CE / ISO9001
The advantages of this model:
1. Number of relays 3 +1
2. The high output voltage accuracy (220V ± 8%)
3. Wide stabilization range
4. High speed stabilization
5. Terminal block connection
6. High accuracy
7. Informative LED-display
8. Modern design
9. Microprocessor control
10. The multistage defense
TECHNOLOGY PARAMETER
| Model | SRV-15000-D | SRV-20000-D |
| Nominal Power | 15000VA | 20000VA |
| Power Factor | 0.6-1.0 | |
| Input | ||
| Operating Voltage Range | A:70~285V,B:90~285V,C:125~285V | |
| Regulation Voltage Range | A:80~260V,B:100~260V,C:140~260V | |
| Frequency | 50HZ | |
| Connection Type | Input terminal block | |
| Output | ||
| Operating Voltage | 180~255V | |
| High Cut Voltage | 255V | |
| Low Cut Voltage | 180V | |
| Safety Cycle | 3 Seconds / 180 Seconds (Optional) | |
| Frequency | 50HZ | |
| Connection Type | Output terminal block | |
| Regulation | ||
| Regulation % | 8% | |
| Number of Taps | 5 | |
| Transformer Type | Toroidal auto transformer | |
| Regulation Type | Relay type | |
| Indicators | ||
| LED display | Input voltage ,Output voltage ,Delay time | |
| Protection | ||
| Over Temperature | Auto Shutdown at 120 ℃ | |
| Short Circuit | Auto Shutdown | |
| Overload | Auto Shutdown | |
| Over / Under Voltage | Auto Shutdown | |
| Model | Unit(PCS) | Device Size(MM) | Package Size(MM) | G.W.(KGS) |
| SRV-15000-D | 1 | 310*270*560 | 410*360*650 | 30 |
| SRV-20000-D | 1 | 360*340*620 | 450*430*725 | 37 |
Production Function:
Introduction:
SDR Series All panels are made with ABS materials, and all indicator gauges are digital display, it leaves you a brand-new impression.
These high-performance products are specialized for users of unstable voltage and precision electronic instruments and equipment.
Applications:
Mainly used in Computer, Home, office equipment, Test equipment, Light system, Safe alarm system, Ray equipment, Medical equipment, Copy machine, Numerical control machine tools, Industrial automation equipment, Color and drying equipment, Hi-Fi equipment etc.
