Quick Details
-
Dimension(L*W*H):
-
standard
-
Weight:
-
760 KG
-
Marketing Type:
-
Hot Product 2023
-
Product name:
-

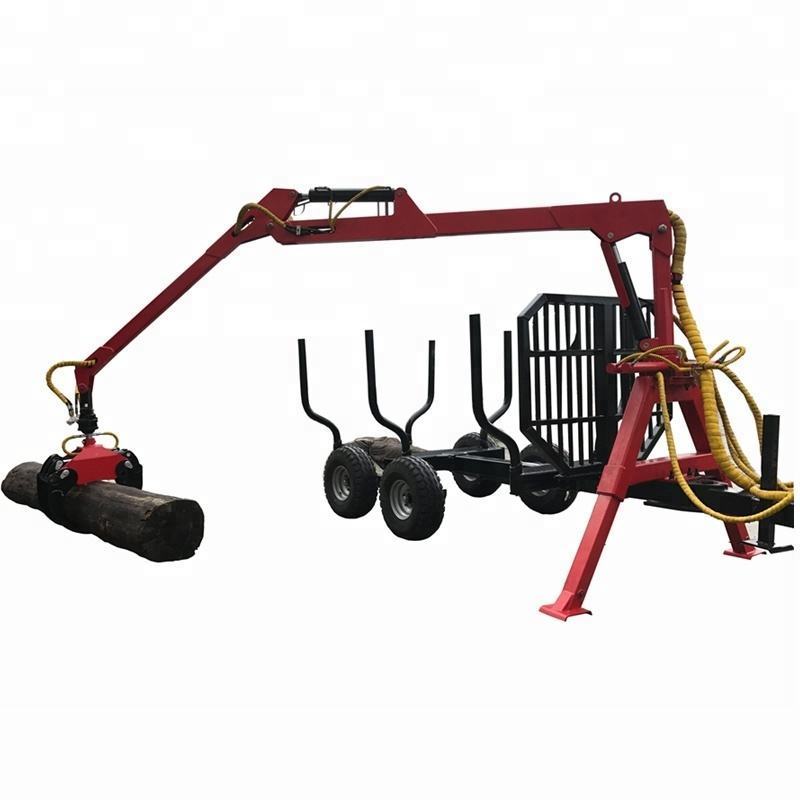

log trailer with crane
-
Max. load:
-
1.5 ton
-
Total length:
-
3.23 m
-
Width with wheels:
-
1.44 m
-
Height:
-
1.6 m
-
Height of front plate:
-
1.1 x 0.7 m
-
Length of loading area:
-
2.12 - 3.52 m
-
Loading area volume:
-
1.6 -- 3 m3
-
Min. ground clearance:
-
0.2 m
-
Standard wheel:
-
22x11-10
Quick Details
-
Use:
-
Timber Trailer with Crane
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
RIMA
-
Dimension(L*W*H):
-
standard
-
Weight:
-
760 KG
-
Marketing Type:
-
Hot Product 2023
-
Product name:
-
log trailer with crane
-
Max. load:
-
1.5 ton
-
Total length:
-
3.23 m
-
Width with wheels:
-
1.44 m
-
Height:
-
1.6 m
-
Height of front plate:
-
1.1 x 0.7 m
-
Length of loading area:
-
2.12 - 3.52 m
-
Loading area volume:
-
1.6 -- 3 m3
-
Min. ground clearance:
-
0.2 m
-
Standard wheel:
-
22x11-10
|
Model
|
RT06
|
A type outriggers weight
|
170 KG
|
|
Max Outreach
|
4.7m
|
B type outriggers weight
|
210 KG
|
|
Lifting Moment, gross KNm
|
28 KNm
|
Load capacity up to 40 km/h
|
6000kg
|
|
Lifting capacity at 4 m (excl. grapple and rotator)
|
400 KG
|
Length of loading area
|
3288mm
|
|
Lifting capacity at full reach (excl. grapple and rotator)
|
300 KG
|
Total length
|
5332mm
|
|
Valve Block
|
5/7
|
Total width with standard wheels
|
1980mm
|
|
Slewing torque
|
7 KNm
|
Standard wheels
|
10.0/80-12
|
|
Rotator
|
3 Ton
|
High of the bloster “S”
|
1.2m
|
|
Grapple
|
0.18 m2
|
Number of the bloster “S”
|
3 sets
|
|
Slewing angle
|
360°
|
Height of the front gate
|
1300mm
|
|
Slewing cylinders
|
4 PCS
|
Centre distance between the tyres
|
970mm
|
|
Working pressure
|
175 BAR
|
Cargo Width at the top wagon
|
1700mm
|
|
Crane's weight (without outriggers and valve block)
|
350 KG
|
Cargo Width at the bottom trailer
|
1.1 m
|
|
3-Point Linkage
|
Cat-1&2
|
Weight(without tyres)
|
760kg
|
We have been building simple, powerful and 100% in-house made trailer and crane for more than 10 years, choosing RIMA means you're choosing a product that you can depend on to get the job done.
01 Are you factory or trading company?
Factory, mainly manufacture Forestry & Farm Machinery.
02 What's your company advantages?
With our two factories and more than 100 workers, we can offer you the following service:
A. Very competitive advantage products!
B. Small order welcome!
C. Alibaba trade assurance payment for your safety!
D. QC for each product before delivery
E. Nice after sale service.
03 Can we buy one sample?
Yes, one sample order is welcome. However, we need to add sample fee to the price.
04 What's your delivery time?
After receiving your payment, we start to produce your order. It usually takes about 15-45 days depending on the products you order.
05 How do you control your quality?
To guarantee high quality and efficient management, our whole manufacturing processes are under a very serious and strict system, and we have passed ISO9001 quality management system certificate. All of our products are 100% inspected before shipment.
06 What's your product warranty?
The warranty time of the machine is one year. During this period, we will send you the replacement for the broken part(not man made).
To meet the every demand of customer is our goal. We are standing by for any question of customer. We try to make our service fast, efficient and satisfied.
07 What's your company mainly exporting market?
We mainly export to European, North American, Australia, English and Southeast Asia Market. Because of good quality and service.
We have establish good and long business relations with many clients. Welcome clients from all over the world to visit our factory.
08 If I need different measurements or weight, could you offer OEM service?
Sure, we can provide OEM service, also we can make new mould for your product, attaching your name brand.
