Quick Details
-
Model Number:
-
FS90MG
-
Size:
-
23.2*12.5*22.0mm
-
Style:
-
Radio Control Toy
-
Micro servo 9g:
-
for 450 Helicopter
-
metal gears:
-
for airplane
-
Bearring:
-
2BB
-
Color:
-
Blue
-
Product name:
-
90MG
-
Certificate:
-
CE ROHS
-
Function:
-
Control direction
-
Description:
-
9g micro servo motor metal gear servo for robot
-
Gear:
-
Metal
Quick Details
-
Use:
-
Vehicles & Remote Control Toys
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FEETECH
-
Model Number:
-
FS90MG
-
Size:
-
23.2*12.5*22.0mm
-
Style:
-
Radio Control Toy
-
Micro servo 9g:
-
for 450 Helicopter
-
metal gears:
-
for airplane
-
Bearring:
-
2BB
-
Color:
-
Blue
-
Product name:
-
90MG
-
Certificate:
-
CE ROHS
-
Function:
-
Control direction
-
Description:
-
9g micro servo motor metal gear servo for robot
-
Gear:
-
Metal
Product Description

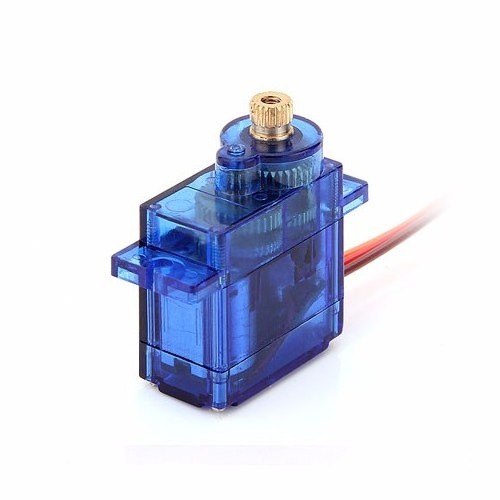

MG90S Servo Micro 180 9G Servo Motor Geared Micro Servo Motor 9G Smart Robot Compatible with Raspberry Pi Project Car Helicopte
If the servo does not match your requirements , please do not hesitate to contact with us,
we have hundreds of servos for optional, and we are professional servo manufacturer since 2011,
customizing servo as per requirements is our advantage.
1.Your Logo label or print
2.Servo Wire:length,wire core,wire color.
3.Packing:PE Bag,Color Box,plastic box with your Logo
4.Cable connector:1-4 pin JR,JST, XH
5.Output Gear:
The material:Plastic,Copper,steel,aluminium.
Output teeth:25 T Spline,hexagonal,and so on
6.CNC case:Case structure,color
7.Electronic function More......
We offer customized services. Please let us know your requirements.
Contact us
Skype: Jenny-fitec
Whats App: 0086 13686413808
WeChat: 0086 13686413808
✔️【High Speed Servo】Torque: 1.7kg-cm/4.8V; 1.9kg-cm/6.0V 23oz-in/4.8V; 26oz-in/6.0V Speed:0.09sec/60°/4.8V; 0.08sec/60°/6.0V Mini Analog Servo FS90MG
13g/1.9kg-cm/0.08sec
✔️【High performance】rc helicopter servo.Precision metal gears forms a strong and solid framework.
✔️【High-strength】FS90MG RC Servo Suitable for use in planes, helis, cars and robots. Mini Analog Servo FS90MG
13g/1.9kg-cm/0.08sec. Interface Type: JR
✔️【Metal Gear Servo Motor】Over-spec refined design out performs ordinary micro size servo.Weight:13g / 0.5oz (not include wires weight); Dimension:22.4*12.5*22.8mm³ / 0.9*0.5*0.9in³
✔️【Good Quality Servo】Strict production and quality control of plastic components.High reliability,good stability,strong adaptability, Low noise,small vibration,smooth operation long life。
Parameter:
Model Type:Analog Servo FS90MG
Motor Type:Brushed
Case material:Plastic
Gear material:Metal
Bearing Type:No BB
Operation Voltage:4.8-6V
Torque: 1.7kg-cm/4.8V; 1.9kg-cm/6.0V 23oz-in/4.8V; 26oz-in/6.0V
Speed:0.09sec/60°/4.8V; 0.08sec/60°/6.0V
Pulse Width:900-2100μs
Dead band width:4μs
Interface Type:JR
Operating Temperature:-10 to 60 centigrade
Splining:20T
Application:RC Airplane, Helicopter, Car and Robot
180 Degrees MG90S Metal Gear Servo
Features:
1. For Boat Car/ Plane/Helicopter/Robot
2. Dimensions: 23 x 12.2 x 29mm
3. Weight:. 20g
4. Operating Speed : (4.8V no load): 0.11sec / 60 degrees
(6.0V no load): 0.10sec / 60 degrees
5. Stall Torque (4.8V): 2.2 kg/cm
6. Stall Torque (6.0V): 2.5 kg/cm
7. Temperature Range: - 30 to + 60 degree
8. Dead Band Width: 10us
9. Connector Wire Length 150mm
10. Interface Specifications: JR / FP General
11. Accessories: Multi-arm, fixing screws
12. Scope: Helicopters KT, fluttering, gliding, small robots,etc.
13. Recommend Model: Mini Car /Ship / Helicopter & Airplane
Features:
1. For Boat Car/ Plane/Helicopter/Robot
2. Dimensions: 23 x 12.2 x 29mm
3. Weight:. 20g
4. Operating Speed : (4.8V no load): 0.11sec / 60 degrees
(6.0V no load): 0.10sec / 60 degrees
5. Stall Torque (4.8V): 2.2 kg/cm
6. Stall Torque (6.0V): 2.5 kg/cm
7. Temperature Range: - 30 to + 60 degree
8. Dead Band Width: 10us
9. Connector Wire Length 150mm
10. Interface Specifications: JR / FP General
11. Accessories: Multi-arm, fixing screws
12. Scope: Helicopters KT, fluttering, gliding, small robots,etc.
13. Recommend Model: Mini Car /Ship / Helicopter & Airplane
Specification
|
item
|
MG90S Servo Micro 180 9G Servo Motor Geared Micro Servo Motor Smart Robot Compatible with Raspberry Pi Project Car Helicopter
|
|
Type
|
Motor Components, MOTORS, Charging Components
|
|
Gender
|
Unisex
|
|
Age Range
|
14 Years & up
|
|
Use
|
Vehicles & Remote Control Toys
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
FEETECH
|
|
Model Number
|
FS90MG
|
|
Size
|
23.2*12.5*22.0mm
|
|
Style
|
Radio Control Toy
|
|
Micro servo 9g
|
for 450 Helicopter
|
|
metal gears
|
for airplane
|
|
Bearring
|
2BB
|
|
Color
|
Blue
|
|
Product name
|
90MG
|
|
Certificate
|
CE ROHS
|
|
Function
|
Control direction
|
|
Description
|
9g micro servo motor metal gear servo for robot
|
|
Gear
|
Metal
|
Contact Us
Packing & Delivery
1.servo*1pcs 2.servo arm*1 bag 3.GW:18g
