Quick Details
-
Application:
-
Construction
-
Rated Lifting Moment:
-
1.7Ton.m
-
Span:
-
3.7m
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
CLW
-
Weight (KG):
-
2650 kg
-
Chassis brand:
-
SINOTRUK, DONGFENG, FOTON, JMC, JAPAN BRAND, etc
-
Drive cabin:
-
4x2, 3 seats, LHD/RHD
-
Crane:
-
HY1.3Z4 1.3tons 4 section folding boom crane
-
Overall dimension:
-
5650*1850*2200mm
-
Load box dimension:
-
3000*1700*340mm
-
Curb weight:
-
2250kg
-
Engine:
-
70KW/95HP diesel engine
-
Tranmission:
-
Manual type, 5 forward and 1 reverse
-
Axle & tire:
-
2 axles, 6 wheels, 6.50R16 tires with a spare tire
-
Max speed:
-
90km/h
Quick Details
-
Rated Loading Capacity:
-
2 ton
-
Max. Lifting Height:
-
5.6m
-
Engine Brand:
-
SINOTRUK
-
Application:
-
Construction
-
Rated Lifting Moment:
-
1.7Ton.m
-
Span:
-
3.7m
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
CLW
-
Weight (KG):
-
2650 kg
-
Chassis brand:
-
SINOTRUK, DONGFENG, FOTON, JMC, JAPAN BRAND, etc
-
Drive cabin:
-
4x2, 3 seats, LHD/RHD
-
Crane:
-
HY1.3Z4 1.3tons 4 section folding boom crane
-
Overall dimension:
-
5650*1850*2200mm
-
Load box dimension:
-
3000*1700*340mm
-
Curb weight:
-
2250kg
-
Engine:
-
70KW/95HP diesel engine
-
Tranmission:
-
Manual type, 5 forward and 1 reverse
-
Axle & tire:
-
2 axles, 6 wheels, 6.50R16 tires with a spare tire
-
Max speed:
-
90km/h
CLW 1.3tons mini mounted mounted crane
1. Crane truck is specially designed and produced on the basis of common cargo trucks or dump trucks, but need strong chassis frame with high strength to support the crane when lifting heavy cargos.
2. Our product type is available in 1 tons~200 tons capacity crane, correspondingly the truck chassis wheel drive from 4x2/4x4/6x2/6x4/6x6/8x4/x10x4.
3. Special crane design: common the end of crane is a hook linked with stee rope, but we can mount a gripping device, holder or other special designed mechanism to achieve the functions of gripping action to hold cargos, not always hooking cargo.
4. Hydraulic system: all the actions of crane and outriggers are driving by hydraulic system, high quality sealed oil cylinder and hydraulic pipe,etc.
5. Control system: for lifting capacity under 6 tons, crane is controlled by the operation handles on both sides; over 8 tons, on the top of crane, there is a seat and operation handles on the top of crane.
6. Cargo box: box length from 3meters to 10 meters and can produce according to your special requirements, you can check from the following photos below.
Specifications of mini truck mounted crane:
|
CLW5030JSQ3 mini truck mounted crane Produced by ChengLi Special Automobile Co.,Ltd |
||
|
Dimension
|
Capacity |
1.3 tons lifting capacity |
| Overall L x W x H(mm) |
5650*1850*2200mm |
|
| Load box L x W x H (mm) |
3000*1700*340mm |
|
| Thickness of load box |
3mm deck board, 2mm side wall |
|
| Gross weight(kg) |
3350 |
|
| Curb Weight (kg) |
2350 |
|
| Payload (kg) |
2000 |
|
|
Crane |
Crane |
HY-1.3Z4 4-section straight telescopic boom |
| Tonnage( ton) | 1.32 tons | |
| Max lifting moment (ton.m) | 1.7 Ton.m | |
| Max lifting height (m) |
5.6
|
|
| Max working radius (m) | 4.2 | |
| Weight of crane (kg) | 650 | |
| Rotation | 360° full circle | |
| Engine | Power | 70KW/90HP |
| Type | 4 cylinder inline, diesel engine | |
| Transmission | Gearbox | 5 forward and 1 reverse |
| Type | Manual | |
| Wheel & Tire | Type | 6.50-16 |
| Number | 6 + 1 spare tire | |
| Cab seat | Single row, 3 seats | |
| Control of crane | Operation handles | |
| Crane auto-lock | Set | |
| Mobile Charger | Set | |
| Steel wheel | LHD, power steering | |
| Tool kits | Set | |
| Spare tire | 1 | |
* More details or special requirements about our 1.3 tons crane truck, please contact us by 0086 18372220016(whatsapp/wechat).

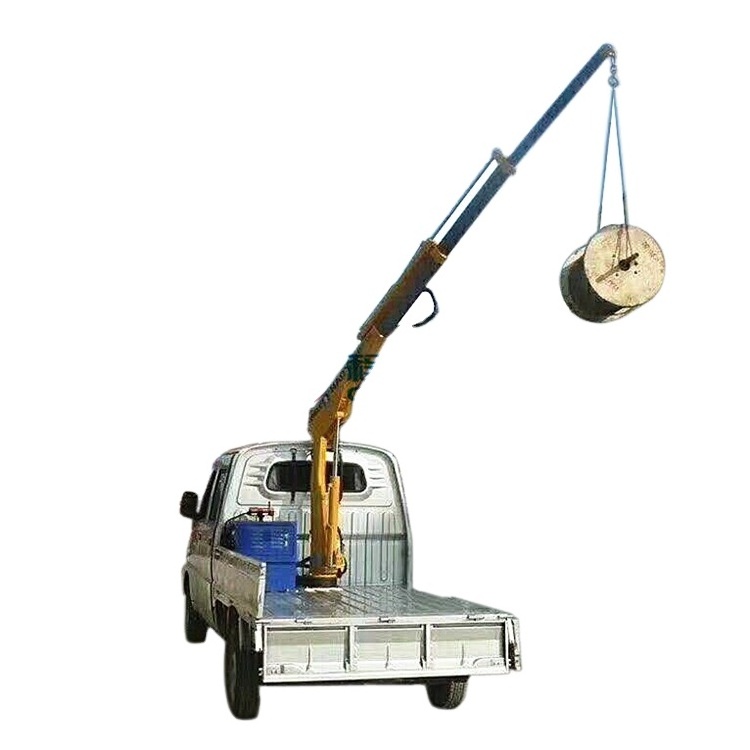

Product Images of mini truck mounted crane:
A lot of special designs to meet different customers' different requirements.
