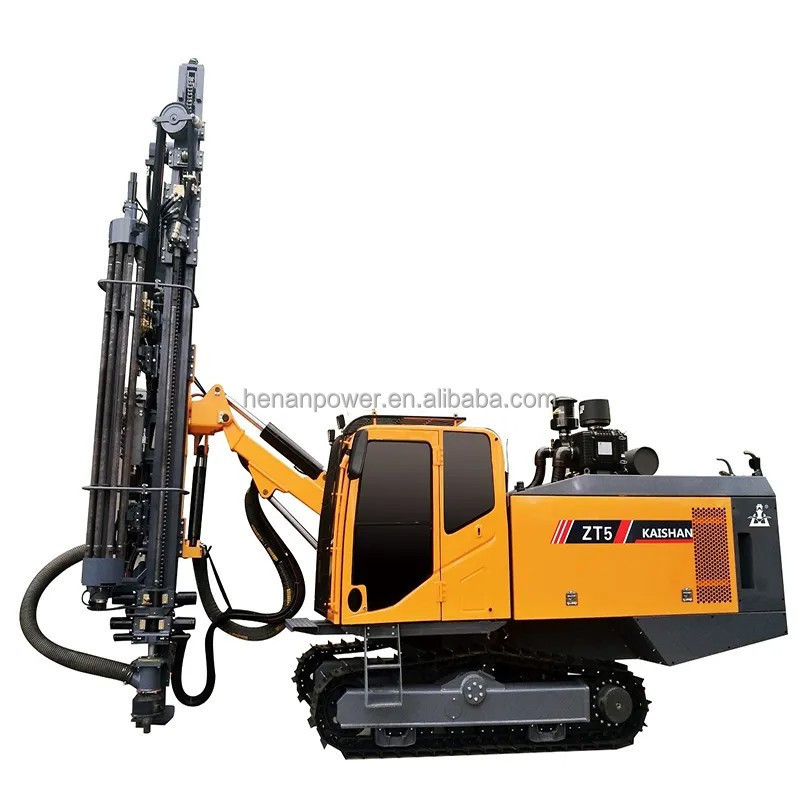

The ZT5 integrated down the hole drill rig for open use is a new drilling device developed by Kaishan Group after years of development and production of down the hole drill rig to meet the needs of large open-pit mines. Its travelling, propulsion, rotation and angle adjustments are based on hydraulic drive, thereby proving its powerfulness. The high air-pressure screw nose and high air-pressure pneumatic Hammer contribute to efficient drilling. It is equipped with the dry hydraulic dust collector, thus reducing pollution. The hydraulic mechanism is used to dismountthe drilling rod, the floatingjoint to protectthe thread of drilling rod, the automatic unloading rod deviceto relieve labor intensity, the air-conditioned cab provides comfortable space and the anti-Jamming valvewith automatic controlreduces the possibility of sticking. And what is more, the drill rig is characterized by excellent integrity, high automation, efficient drilling,environment-friendliness, energy conservation, simple operation, flexibility and travelling,safety,etc.
1. Has a strong climbing ability and adaptive to the rough pavement.
2. Adapt to a wide range, can be furnished with various types of DTH impactor, can drill different diameter and different depth in variety of position and angle.
3. Also can be furnished with dry or wet dust collector when working, effectively reduce dust pollution to the environment, and protect the worker.
4. Anti-jamming system, safety operation
5. Crawler type undercarriage with track oscillation system.
|
Model
|
ZT5
|
|
Transport dimensions (L×W×H)
|
8630*2100*2830mm
|
|
Weight
|
13000Kg
|
|
Rock hardness
|
f=6-20
|
|
Drilling diameter
|
90-105mm
|
|
Ground clearance
|
430mm
|
|
Leveling angle of track
|
±10°
|
|
Travelling speed
|
0-3Km/h
|
|
Climbing capacity
|
25°
|
|
Traction
|
120KN
|
|
Torque
|
1400N.m
|
|
Rotation speed
|
0-120rpm
|
|
Lifting angle of drill boom
|
Up 47°, down 20°
|
|
Swing angle of drill boom
|
Left 20°, right 50°
|
|
Swing angle of carriage
|
Left 35°, right 95°
|
|
Tilt angle of beam
|
120°
|
|
Compensation stroke
|
1200mm
|
|
Rotation Head stroke
|
3490mm
|
|
Maximum propelling force
|
25KN
|
|
Method of propulsion
|
Motor + roller chain
|
|
Depth of economical drilling
|
24m
|
|
Number of rods
|
7+1
|
|
Specifications of drilling rod
|
Φ64x3000mm
|
|
DTH hammer
|
M3
|
|
Engine
|
WEICHAI WP6240E330
|
|
Number of cylinders
|
6
|
|
176KWRated power
|
176KW
|
|
Rated revolving speed
|
2200r/min
|
|
Hydraulic pump
|
4* gear pump
|
|
Screw air compressor
|
Zhejiang Kaishan
|
|
Capacity
|
10m3/min
|
|
Discharge pressure
|
15bar
|
|
Traveling control system
|
Hydraulic pilot
|
|
Drilling control system
|
Hydraulic pilot
|
|
Anti-Jamming
|
Automatic electro-hydraulic anti-jamming
|
|
Voltage
|
24V DC
|
|
Safe cab
|
Meet the requirements of ROPS & FOPS
|
|
Indoor noise
|
Below 85dB (A)
|
|
Seat
|
Adjustable
|
|
Air-conditioning
|
Standard temperature
|
|
Entertainment
|
Radio
|
Details Images
Details Display
Product Application
ZT5 integrated drilling rigs is an advanced drill, whose drilling system and screw air compressor system are together on one machine.
And it does not need to buy separated air compressor to use
. The machine fitted with six-cylinder diesel engine to provide power for the two systems. Also it is fitted with dust collection, environmental protection and energy saving,.It is suitable for open-pit mine, quarry, highway,railway, water conservancy, electric power, construction and other medium and deep hole in the stone engineering extension rod drilling operation.
