Quick Details
-
Voltage:
-
380v
-
Power:
-
75KW
-
Dimension(L*W*H):
-
7500*4000*3500mm
-
Weight:
-
15000 kg
-
Name:
-
paper pulper equipment a4 toilet tissue napkin paper forming machine
-
small scale toilet paper making machine:
-
model 1092
-
paper width:
-
1092mm
-
raw materials:
-
wast paper,old carton box,reed,wheat straw,pulp board,cotton stalk
-
Output paper:
-
Toilet Paper Tissue Paper Napkin Paper
-
Application:
-
Paper Industry
-
Capacity:
-
5T/D
-
Paper weight:
-
14-40g/m2
-
Factory area:
-
300m2
-
After-sales Service Provided:
-
Field installation, commissioning and training
Quick Details
-
Production Capacity:
-
150 m/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Meida
-
Voltage:
-
380v
-
Power:
-
75KW
-
Dimension(L*W*H):
-
7500*4000*3500mm
-
Weight:
-
15000 kg
-
Name:
-
paper pulper equipment a4 toilet tissue napkin paper forming machine
-
small scale toilet paper making machine:
-
model 1092
-
paper width:
-
1092mm
-
raw materials:
-
wast paper,old carton box,reed,wheat straw,pulp board,cotton stalk
-
Output paper:
-
Toilet Paper Tissue Paper Napkin Paper
-
Application:
-
Paper Industry
-
Capacity:
-
5T/D
-
Paper weight:
-
14-40g/m2
-
Factory area:
-
300m2
-
After-sales Service Provided:
-
Field installation, commissioning and training

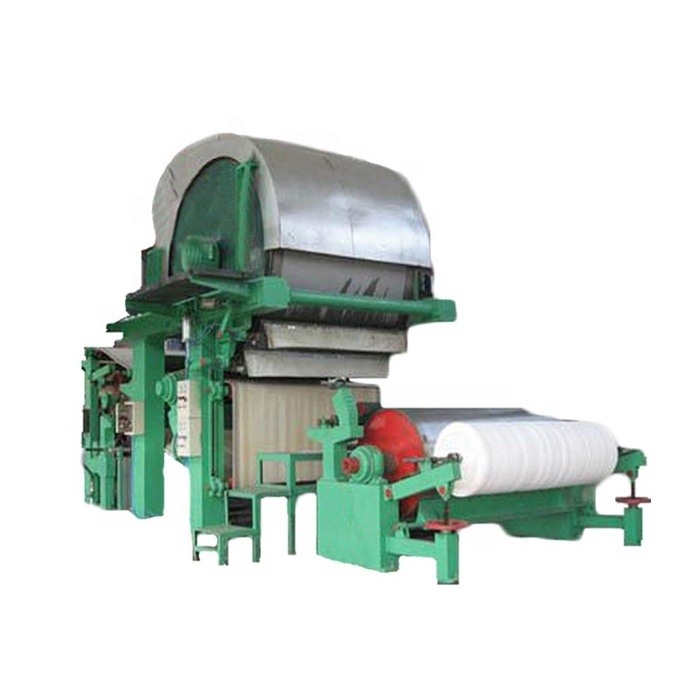

High quality automatic kraft mini small paper pulper equipment a4 toilet tissue napkin paper forming machine
mini small paper pulper equipment a4 toilet tissue napkin paper forming machine
| 1 model | 1092 automatic facial tissue paper making machine price |
| 2. Output paper | Toilet paper,napkin paper |
| 3. Gram weight(g/m2) | 12—48g/m2 |
| 4. Net paper width (mm) | 1092mm |
| 5. Design work speed (m/min) | 80-120m/min |
| 6. Work speed (m/min) | 80--120m/min |
| 7. Daily capacity (t/d) | 2-3t/d ( based on different size dryer ) |
| 8. Drive way | AC variable frequency, section drive |
| 9 Model design | Box structure, operation by left or right hand |
| 10. Sizing way: | Inversion Pulping |
| 11. Matched felt | Normal Chemical fiber woven felt |
| 12. Forming wire type | Stainless Steel plate |
| 13 structural layout | Monolayer |
| 14. Power (v, HZ) | standards 380v/50HZ/3 phase ( if need we change voltage,please tell us ) |
| 15. Pneumatic medium | Compressed air, 0.6 MPa, level 3 industrial compressed air standards |
| 16.Steam | 0.3MPa-0.6Mpa |
| 17. Water quality standard | PH-7, total alkalinity(take CaCO3 as example, mg/L)≤350 |
| 18. Factory area: | 300m2 |
| 19.Worker number | 3-5 worker |
| 20. Raw material |
Rice straw, wheat straw, wood, waste paper, virgin pulp ( different raw materials need use
different paper pulp machines, so better tell us your raw materials in advance) |
The Raw Materials
Notes : raw materials can be various, but different raw materials need different paper pulping machine ,so whole line price is different too
mini small paper pulper equipment a4 toilet tissue napkin paper forming machine
The tissue paper making machine - Jumboo Paper Roll Making Process
The tissue paper making machine - Small Toilet Paper Roll Making Process
Toilet paper rewinder, automatic paper cutter, automatic packaging machine
Toilet paper rewinder, paper cutter
mini small paper pulper equipment a4 toilet tissue napkin paper forming machine
Tissue paper make machine - Napkin Paper/Facial Boxed Paper Making Process
Toilet paper slitting and rewinding machine
Facial tissue paper folding and embossing machine
Napkin folding embossing machine
Kraft paper making machine
Main spare parts of tissue paper making machine toilet paper making machine
DIntroduction to drying cylinders, mesh cages, boilers, and rollerss
Machine Parts-automatic facial tissue paper making machine priceName: Cylinder
Materials: Stainless steel structure for the film, cast iron spokes Bearing :113622(3618) |
|
Main Parts-automatic facial tissue paper making machine price
Name : dryer
Cylinder block material: HT200
|
|
Machine Parts-automatic facial tissue paper making machine price
Name:
couch roller
rubber hardness:shore A38±2° Cladding thickness: 25mm Spindle nose: 45#steel for thermal refining Bearing: 113620 |
|
Main Features-automatic facial tissue paper making machine price
Name: boiler
Boiler style : GAS / OIL / COAL 3 style |
mini small paper pulper equipment a4 toilet tissue napkin paper forming machine
|
Pre-Sales Service -automatic facial tissue paper making machine price* Inquiry and consulting support. * Come to our factory to see machine * View local customers' running factory
|
After-Sales Service-automatic facial tissue paper making machine price* Training how to instal the machine, training how to use the machine. * Engineers available to service machinery overseas. |
mini small paper pulper equipment a4 toilet tissue napkin paper forming machine
Contact
For more details of Complete Line automatic facial tissue paper making machine price Best After Sale
mini small paper pulper equipment a4 toilet tissue napkin paper forming machinePlease Contact Whatsapp +8618537138115
The
automatic facial tissue paper making machine price
with models we have :
600/787/1092/1200/1575/1600/1760/1880/2400/2880/3200/etc for choose etc
mini small paper pulper equipment a4 toilet tissue napkin paper forming machine
Welcome contact us by tell us more detailes include your raw materials,your final products, your daily capacity to help us suggest and make best quote for you
mini small paper pulper equipment a4 toilet tissue napkin paper forming machine
kraft paper make machine ,click to see more
a4 paper make machine , click to see more model
mini small paper pulper equipment a4 toilet tissue napkin paper forming machine
