Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SGSK
-
Model Number:
-
ZAY7032G
-
Voltage:
-
220V, 380V, 410V
-
Dimension(L*W*H):
-
770*880*1860
-
Power (kW):
-
0.75
-
Weight (KG):
-
365 KG
-
Product name:
-

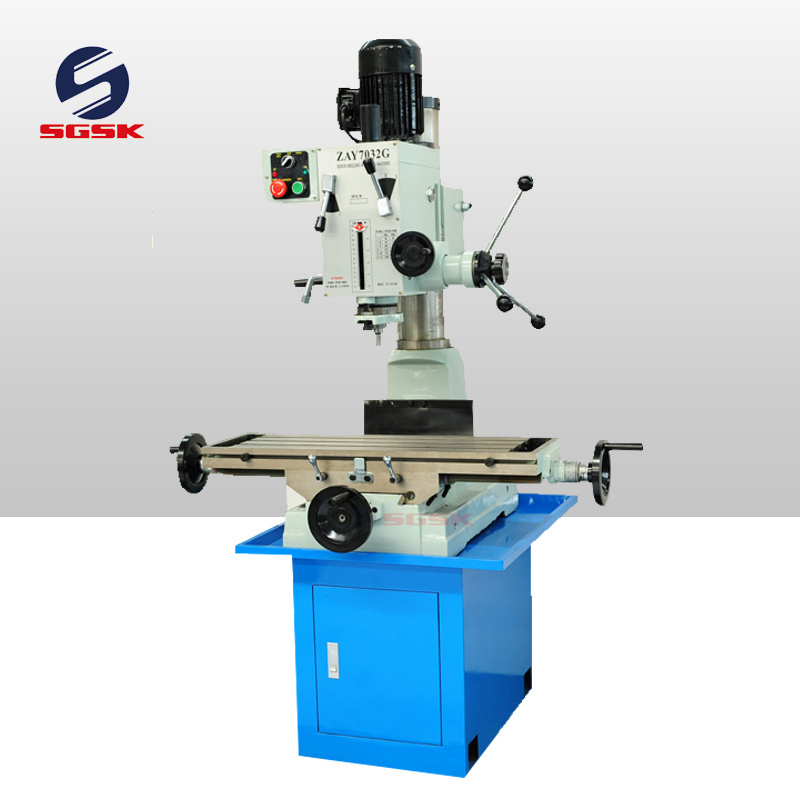

drilling milling machines ZAY7032G manual mill drill hobby mill drill
-
Application:
-
Metal Processing
-
Machine type:
-
Milling Drilling Machine
-
Model:
-
ZAY7032G
-
Color:
-
Blue
-
Motor Power:
-
0.75
-
Max drilling capacity:
-
32mm
-
Table size:
-
800*240
-
Spindle taper:
-
MT3/R8
-
Spindle travel:
-
130
Quick Details
-
type:
-
Drilling & Milling Machine
-
Max. Drilling Dia. (mm):
-
32
-
Range of Spindle Speed(r.p.m):
-
80 - 1250 r.p.m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SGSK
-
Model Number:
-
ZAY7032G
-
Voltage:
-
220V, 380V, 410V
-
Dimension(L*W*H):
-
770*880*1860
-
Power (kW):
-
0.75
-
Weight (KG):
-
365 KG
-
Product name:
-
drilling milling machines ZAY7032G manual mill drill hobby mill drill
-
Application:
-
Metal Processing
-
Machine type:
-
Milling Drilling Machine
-
Model:
-
ZAY7032G
-
Color:
-
Blue
-
Motor Power:
-
0.75
-
Max drilling capacity:
-
32mm
-
Table size:
-
800*240
-
Spindle taper:
-
MT3/R8
-
Spindle travel:
-
130
drilling milling machines ZAY7032G manual mill drill hobby mill drill
Products Description
Product Paramenters
Features:
The main performance characteristics：
1. Gear-driven type and round column
2. Milling, drilling, boring, reaming
3. Headstock swivels 360 horizontally
4. Micro feed precision
5. Adjustable gibs on table precision.
6. Strong rigidity, powerful cutting and precisely positioning.
Standard accessories:
Allen wrench
Drift
Spanner
Drill chuck rod
Screw-driver
Draw bar and gasket
Optional accessories:
Stand
Oil basin
Power feed attachment
Machine vice
Drill chuck
Milling cutter holder
Reducing sleeve
Mill chuck
Boring rod
Tapping electrical system
Coolant system
Product main technical specifications:
|
ITEM
|
ZAY7020G
|
ZAY7032G
|
ZAY7040G
|
ZAY7045G
|
|
Drilling capacity
|
20mm
|
32mm
|
40mm
|
45mm
|
|
Face milling capacity
|
63mm
|
63mm
|
80mm
|
80mm
|
|
End milling capacity
|
20mm
|
20mm
|
32mm
|
32mm
|
|
Distance from spindle nose to table
|
439mm
|
440mm
|
440mm
|
440mm
|
|
Min.distance from spindle
axis to column |
197.5mm
|
272.5mm
|
272.5mm
|
272.5mm
|
|
Spindle travel
|
85mm
|
130mm
|
130mm
|
130mm
|
|
Spindle taper
|
M.T.3 or R8
|
M.T.3 or R8
|
M.T.4 or R8
|
M.T.4 or R8
|
|
Step of spindle speed
|
6
|
6
|
6
|
6
|
|
Range of spindle speed 50Hz
|
95-1420 r.p.m
|
80-1250 r.p.m
|
80-1250 r.p.m
|
80-1250 r.p.m
|
|
60Hz
|
115-1700 r.p.m
|
95-1500 r.p.m
|
95-1500 r.p.m
|
95-1500 r.p.m
|
|
Swivel angle of headstock
(horizontally/perpendicularly) |
360°/±90°
|
360°/±90°
|
360°/±90°
|
360°/±90°
|
|
Table size
|
520×160mm
|
800×240mm
|
800×240mm
|
800×240mm
|
|
Forward and backward travel of table
|
140mm
|
175mm
|
175mm
|
175mm
|
|
Left and right travel of table
|
290mm
|
500mm
|
500mm
|
500mm
|
|
Motor power
|
0.37KW
|
0.75KW(1HP)
|
1.1KW(1.5HP)
|
1.5KW(2HP)
|
|
Net weight/gross weight
|
130kg/190kg
|
315kg/365kg
|
318kg/368kg
|
320kg/370kg
|
|
Packing size
|
680×750×1000mm
|
770×880×1160mm
|
770×880×1160mm
|
770×880×1160mm
|
Recommend Products
Why Choose Us
All our machine include cnc lathe machine, cnc milling machine , lathe machine , milling machine , drilling machine will running 24hours . And it have finished all test , then we will arrange package.
Choose SGSK machines, we will supplied the 5 star service to you .
FAQ
1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
A: MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
