Quick Details
-
Warranty:
-
1 years
-
Brand Name:
-
TX
-
Model Number:
-
ZBW-100E
-
Place of Origin:
-
Fujian, China
-
Horsepower:
-
5.5kw
-
Power:
-
5.5kw
-
Model:
-
ZBW-80E
-
Type:
-
Oil-free rotary vane vacuum pump
-
Sea port:
-
Xiamen
-
weight:
-
140KG
-
Rated exhaust pressure:
-
80kpa
-
Motor speed:
-
1420r/min
-
Logistics model:
-
Express, sea, land, air
-
Noise:
-
76 dB(A)
-
Motor power:
-
5.5KW
-
dimension:
-
882*460*336mm
Quick Details
-
Application:
-
Food and Beverage Industry, HVAC OEM, Industrial Utilities, Machining, Pharmaceutical industry, Other
-
Pressure:
-
Low Pressure
-
Voltage:
-
380V
-
Warranty:
-
1 years
-
Brand Name:
-
TX
-
Model Number:
-
ZBW-100E
-
Place of Origin:
-
Fujian, China
-
Horsepower:
-
5.5kw
-
Power:
-
5.5kw
-
Model:
-
ZBW-80E
-
Type:
-
Oil-free rotary vane vacuum pump
-
Sea port:
-
Xiamen
-
weight:
-
140KG
-
Rated exhaust pressure:
-
80kpa
-
Motor speed:
-
1420r/min
-
Logistics model:
-
Express, sea, land, air
-
Noise:
-
76 dB(A)
-
Motor power:
-
5.5KW
-
dimension:
-
882*460*336mm

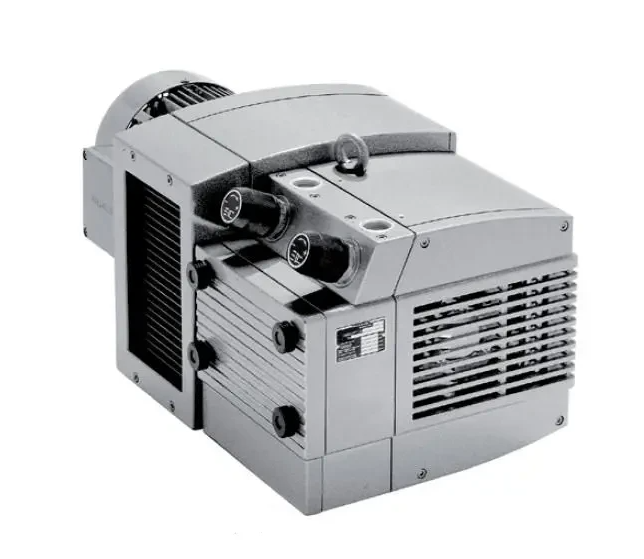

ZBW-100E single stage rotary vane vacuum pump 5.5KW self-lubricating vacuum pump
ZBW series self-lubricating pressure air pump is professionally produced according to the requirements of grain processing
industry at home and abroad, which is a special pressure pump for low pressure pulse dust removal. With pure gas, high
performance, low noise, low temperature rise, easy maintenance and other excellent characteristics, can also be designed and
produced according to the special needs of customers.
industry at home and abroad, which is a special pressure pump for low pressure pulse dust removal. With pure gas, high
performance, low noise, low temperature rise, easy maintenance and other excellent characteristics, can also be designed and
produced according to the special needs of customers.
Product Description
|
ZBW-E 系列主要技术参数
|
|
|
|
|
|
|
|
|||||||
|
ZBW-E series main technical parameters
|
|
|
|
|
|
|
|
|||||||
|
项目
Ttem |
单位
Unit |
ZBW60E
|
ZBW80E
|
ZBW100E
|
ZBW140E
|
ZBW160E
|
ZBW320E
|
|||||||
|
额定吸气真空
Rated suction vacuum |
kPa
|
-80
|
-80
|
-80
|
-80
|
-80
|
-80
|
|||||||
|
电机功率
Motor rating |
kw
|
3.0
|
3.0
|
5.5
|
5.5
|
5.5
|
11
|
|||||||
|
电机转速
Motor speed |
r/min
|
1420
|
1420
|
1420
|
1420
|
1420
|
1420
|
|||||||
|
噪声
Noise leve |
dB(A)
|
72
|
72
|
76
|
77
|
77
|
77
|
|||||||
|
吸气管口径
Inlet port thread |
G"
|
1"
|
1”
|
1¹/₂"
|
1¹/₂"
|
1¹/₂"
|
1¹/₂"
|
|||||||
|
重量
Weight |
kg
|
95
|
105
|
140
|
160
|
170
|
400
|
|||||||
|
外形尺寸
(长×宽×高) Overall dimensjons |
mm
|
730
360 X 310 |
y
310 |
882
480 336 |
884
480 X 336 |
884
X 460 W 336 |
1100
×。 720 1400 |
|||||||
Applications:
Dry rotary vane vacuum pressure compound pump air pump has the advantages of pure exhaust, low noise and reliable operation. Thepump uses scientific cooling principle and thickens zuang's unique cooling device, which sends the compressed air humidity is veryideal.
Application: widely used in printing, packaging industry of sheet material conveying and drying; Food processing, woodworking machinery, environmental protection, medical, and other fields of powdery material transport and sewage treatment in the field of liquid stirring.
Features:
High pressure/large flow/light weight.
Reasonable price
Excellent ultimate vacuum
Constant pressure oil circulating inlet check valve system
Die-cast aluminum alloy housing.
Both 50Hz and 60Hz available
Dual-usage: Compressor and Vacuum(suction and blow)
Electronic motor with IP55 protection and Insulation class H.
No oily odors.
Low noise and Vibration
Easy installation
Full range styles and sufficiently finished products of each model make quickly delivery be possible.
Special air-flow-adjust designs offer stable flows and easily control.
Dry rotary vane vacuum pressure compound pump air pump has the advantages of pure exhaust, low noise and reliable operation. Thepump uses scientific cooling principle and thickens zuang's unique cooling device, which sends the compressed air humidity is veryideal.
Application: widely used in printing, packaging industry of sheet material conveying and drying; Food processing, woodworking machinery, environmental protection, medical, and other fields of powdery material transport and sewage treatment in the field of liquid stirring.
Features:
High pressure/large flow/light weight.
Reasonable price
Excellent ultimate vacuum
Constant pressure oil circulating inlet check valve system
Die-cast aluminum alloy housing.
Both 50Hz and 60Hz available
Dual-usage: Compressor and Vacuum(suction and blow)
Electronic motor with IP55 protection and Insulation class H.
No oily odors.
Low noise and Vibration
Easy installation
Full range styles and sufficiently finished products of each model make quickly delivery be possible.
Special air-flow-adjust designs offer stable flows and easily control.
Industry application
Company Introduction
Xiamen star too mechanical and electrical co., LTD., founded in August 2009, the main focus on: vacuum pump, vacuum unit, vacuumsystem, helium mass spectrometer leak detector, molecular pump, lubricating oil, diffusion pump, vacuum measuring instrument,water ring vacuum pump, screw vacuum pump, roots pump, diaphragm pump, corrugated pipe and connector, vacuum parts, consumables,dry ice cleaning machines and other kinds of vacuum industry. More than 10 years in the company's technical efforts have become avacuum research, vacuum development, production of vacuum equipment professional company more than 1000 specifications, from roughvacuum to ultra high vacuum, from single pump to unit, from the acquisition of equipment to application equipment research anddevelopment production capacity. Vacuum products involve a number of scientific research to industrial applications, includinghigh energy physics, semiconductor industry, the chemical and physical analysis, vacuum coating, heat treatment, medical equipment, food packaging, building materials, electrical appliances, coal washing, vacuum deaeration, sewage treatment, hospitaland laboratory, electric power, metallurgy, textile, bathroom, blister, molds, freon, papermaking, and many other industrialapplications.
