Quick Details
-
Brand Name:
-
iPuray
-
Model Number:
-
BRT-F005-T
-
Mechanical Life:
-
5 years
-
Product Name:
-
Ceiling fan remote control
-
Fan Load:
-
100W Max
-
Light Load:
-
150W Max
-
Wire Mode:
-
2 wire system
-
Loads:
-
AC Motor and Light
-
Operating Temperature:
-
0~55℃
-
Fan Speed:
-
Five Step
-
Mounting Hole Spacing:
-
60mm
-
Matching Wall Box:
-
75*75*50mm
-
Color:
-
White
Quick Details
-
Max. Current:
-
0.68A
-
Max. Voltage:
-
240V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
iPuray
-
Model Number:
-
BRT-F005-T
-
Mechanical Life:
-
5 years
-
Product Name:
-
Ceiling fan remote control
-
Fan Load:
-
100W Max
-
Light Load:
-
150W Max
-
Wire Mode:
-
2 wire system
-
Loads:
-
AC Motor and Light
-
Operating Temperature:
-
0~55℃
-
Fan Speed:
-
Five Step
-
Mounting Hole Spacing:
-
60mm
-
Matching Wall Box:
-
75*75*50mm
-
Color:
-
White
Product Description

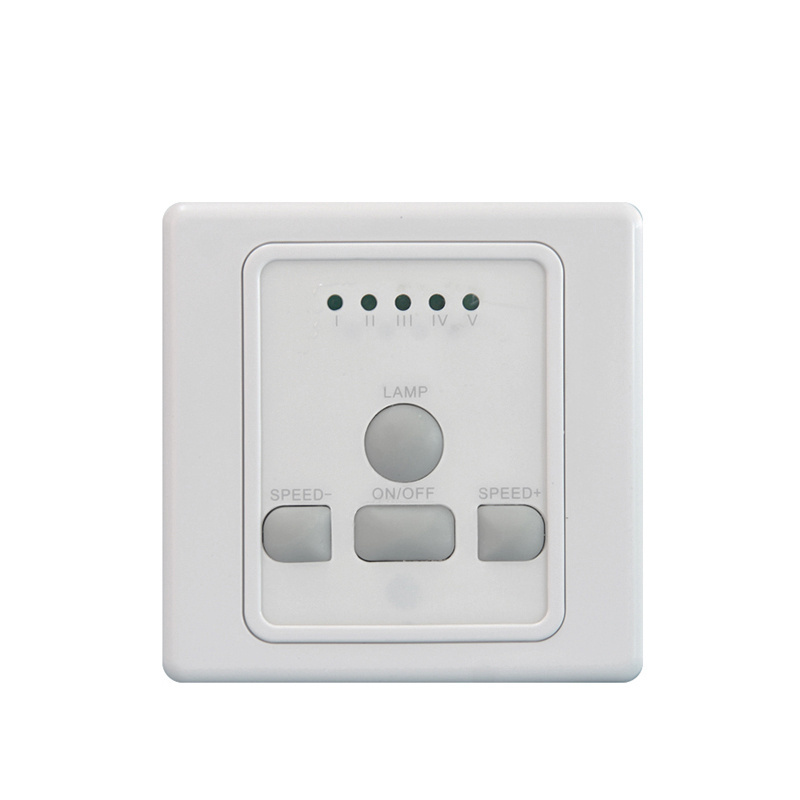

5 Speed Ceiling Fan Speed Control Switch Motor Regulator 220V AC
Features:
BRT-F005-T is a speed control switch which has a built-in micro controller unit. In addition to a wall mount keypad unit, it also has a handheld remote control. The wall mount unit is designed for easy installation and retrofit, directly fit into standard wall box with no need for the neutral.
Two load control outputs, one for fan and another one for lights;
5 step speed control using wall mount keypads or a remote control ;
Memory function. The motor always starts at last speed;
Adjustable minimum speed. The minimum speed can be fine-tuned by the user to suit for all kind of motors;
ABS-V0 flame resistance material; and
Classical 86 series design and high quality build.
BRT-F005-T is a speed control switch which has a built-in micro controller unit. In addition to a wall mount keypad unit, it also has a handheld remote control. The wall mount unit is designed for easy installation and retrofit, directly fit into standard wall box with no need for the neutral.
Two load control outputs, one for fan and another one for lights;
5 step speed control using wall mount keypads or a remote control ;
Memory function. The motor always starts at last speed;
Adjustable minimum speed. The minimum speed can be fine-tuned by the user to suit for all kind of motors;
ABS-V0 flame resistance material; and
Classical 86 series design and high quality build.
Specification
|
Input Voltage
|
220~240V(50Hz/60Hz)
|
Operation Environment
|
No-condensation 20-90% RH,-20℃~55℃
|
|
Wattage
|
Motor: 150W
Lights: 300W |
Load type
|
Motor, all types of lights
|
|
Mounting Hole
Spacing |
60mm
|
Matching
Box |
75mm x 75mm x 50mm
|
|
Wall Unit Dimension
|
86mm x 86mm x 43mm
|
Wall Unit Weight
|
95g
|
|
Remote Control Mode
|
IR
|
Remote Control Distance
|
Up to 7m
|
|
Remote Control Dimension
|
107mm x 36mm x 14mm
|
Remote Control Weight
|
52g
|
Company Profie
Our company:
Shenzhen Asia Bright Industry Co.Ltd, founded in March 2000, specializes in design, development, manufacturing. sales and marketing of smart control products for home appliance, lights and fans. We have been awarded with more than 50 patents on smart control technologies.
We provide ODMOEM services and supply products in four categories:
Home Appliance PCBAS and Smart PCBA Cortollers,
Smart Appliance Switches,
Smart Home Switches and Smart Home Systems.
Our ODM/OEM services include developing and supplying smartphone Apps and cloud server application software related to our hardware products. Our products control and automate just about every device and appliance at your home with various features and functionalities. We sell and distribute our products under two brand names: iPuray for the end users in domestic market; and A-BR7 for wholesales and distributors on ODM/OEM basis in overseas markets.
FAQ
Q1. Are you manufacturer or trader?
We are 20 years experience manufacturer in Home Appliance PCBAs, Smart Switches and Smart Home Systems.
Q2. What is the warranty of your products?
We offer 12 month warranty after you received the goods.
Q3. Can I get sample for testing?
Sample order is acceptable.
Q4. How about the price? If I buy more, can I get better price?
Of course YES. The more you order, the cheaper unit price you get.
Q5. What about the lead time?
7 days for the sample order, 45 days for OEM/ODM orders.
Q6. Is it OK to print my logo on your product? What's the MOQ for mass?
Of course, we can laser your logo on our product, and the MOQ is 1000pcs.
