Quick Details
-
Max. Wheel Weight:
-
200kg
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DAYANG
-
Model Number:
-
DY-P990B
-
Warranty:
-
1 Years
-
colour:
-
red or blue
-
Application:
-
Tire Service
-
Language:
-
English
-
Function:
-
Test Wheel Balancing
Quick Details
-
Power:
-
550W
-
Power Supply:
-
380/220V,50Hz/60HZ
-
Balancing Speed:
-
230rpm
-
Max. Wheel Weight:
-
200kg
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DAYANG
-
Model Number:
-
DY-P990B
-
Warranty:
-
1 Years
-
colour:
-
red or blue
-
Application:
-
Tire Service
-
Language:
-
English
-
Function:
-
Test Wheel Balancing
Dayang car wheel balancing machine

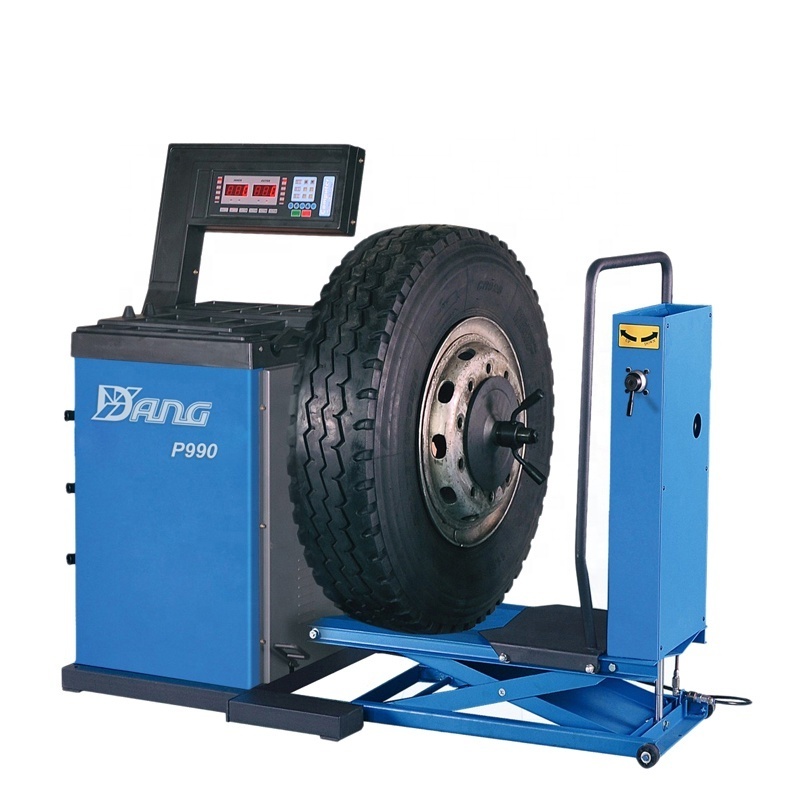

1. Pictures of wheel balancer
2. Main features of wheel balancer
1. Electronic balancing machine with microprocessor for off-vehicle wheels of trucks, buses and vans.
2. Specially for balancing the large-sized wheels.
3. Piezoelectric ceramic sensor provide more accurate measurement.
4. Three phase electromagnetic braking motor.
5. Balancing time less than 10s .
6. Unbalance value read-out from LED display.
7. Indication of unbalance in convertible grams and ounces.
8. Pneumatic wheel lifting device.
3. Specifications
Max. wheel weight---------- 200kg
Max. wheel diameter------- 1200mm
Rim diameter----------------- 10”-24”
Rim width--------------------- 1.5”-20”
Balancing precision ---- ±1g for car or ±25g for truck
Cycle time------------------7s for car or10s for truck
Motor power----------------- 0.55kw
Power supply---------------- 220/380V,60/50Hz
Balancing speed-------------210rpm
Package sizes-------------- 1300X990X 1130mm
18 sets can be put into a 20ft container
4. Factory
5. Our machines in worldwide
6. Delivery
Warranty will continue to be valid for a period of 12 months provided the following warranty conditions are observed.
Warranty Conditions:
1. This warranty is valid from the date of receiving equipments.
2. This warranty is given for the benefit of the first owner only and claims by parties other than the original purchaser will not be recognized, as the warranty is not transferable.
3. This warranty is only valid when the product has been used in accordance with the Installation, Operation, Maintenance and Instruction Manual and by a competent person trained in its use.
4. This warranty does not apply to damage or deterioration, which is caused by human.
5. During warranty period, shipping cost of replacement products or parts are our responsibility.
6. Beyond the warranty period, we provide spare parts to customers at factory cost.
