- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
R250
-
Place of Origin:
-
China
-
Memory:
-
8G
-
Hard disk drive:
-
1T SATA
-
Power supply:
-
450Wcold
Quick Details
-
Type:
-
Rack
-
Processor Type:
-
E-2314
-
Processor Main Frequency:
-
2.8GHz
-
Model Number:
-
R250
-
Place of Origin:
-
China
-
Memory:
-
8G
-
Hard disk drive:
-
1T SATA
-
Power supply:
-
450Wcold
Product Description
|
Product Name
|

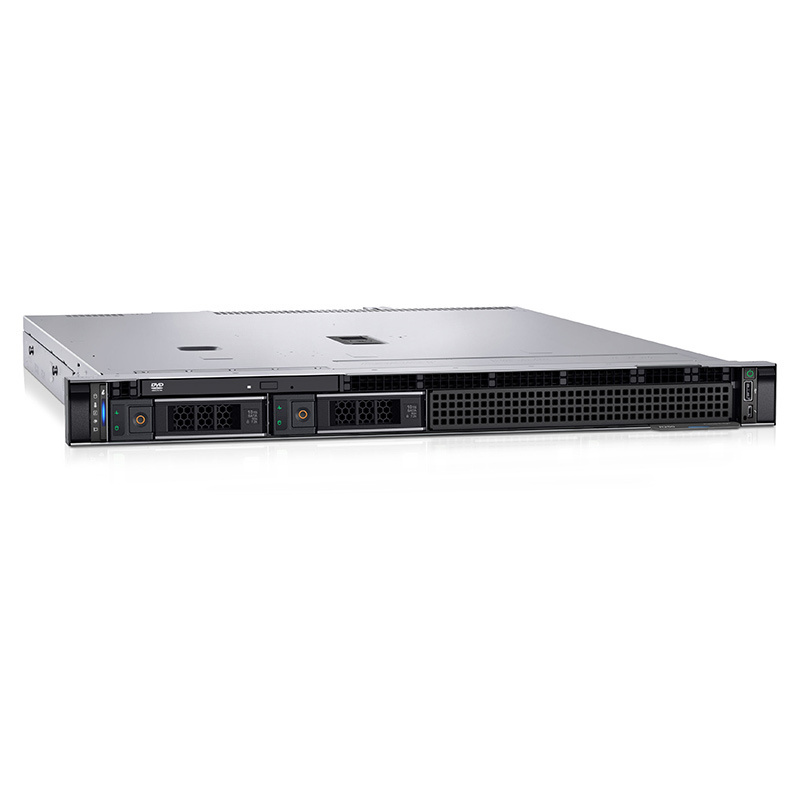

PowerEdge R250 server
|
|
processor
|
An Intel Xeon E-2300 series processor with up to eight cores
|
|
memory
|
• Four DDR4 DIMM slots supporting up to 128 GB UDIMMs and speeds up to 3200 MT/s
• Only non-stored ECC DDR4 DIMMs are supported
Note: For Pentium processors, the maximum memory speed is 2666 MT/s |
|
Driver bracket
|
Front bracket:
• Up to 4 x 3.5 inches hot-swappable SAS/SATA (HDD/SSD), up to 30.72 TB
• Up to 2 x 3.5 inches wired SAS/SATA(HDD/SSD), up to 15.36 TB
• Up to 4 x 3.5 "wired SAS/SATA (HDD/SSD) up to 30.72 TB
|
|
Memory controller
|
• Internal controller: PERC H345, H355, H755, HBA355i, S150
• Internal Boot: Internal dual SD modules or USB or Boot Optimized
Storage Subsystem (BOSS-S1) : HWRAID 2 x M.2 SSD
• External HBA (non-RAID) : HBA355e
|
|
Power supply unit
|
• 450 W Bronze Class 100-240 VAC, wired
• 450 W Platinum Grade 100-240 VAC, wired
|
|
Dimension
|
• Height: 42.8 mm (1.68 in)
• Width: 482 mm (18.97 in)
• Depth: 598.64 mm (23.56 in) with flapper 585 mm (23.03 in) without baffle
|
|
Contour specification
|
1U
|
|
Embedded management
|
• iDRAC9
• iDRAC Direct • have Redfish 的 iDRAC RESTful API
• iDRAC Service Module
|
|
PCIe
|
Two PCIe slots:
• 1 x8 4.0 (x16 connector) half height and half length
• 1 x8 4.0 (x8 connector) half height and half length
|
|
Embedded NIC
|
2 x 1 GbE LOM
|
|
OpenManage software
|
• OpenManage Enterprise
• OpenManage Power Manager Plug-in program • OpenManage SupportAssist Plug-in program • OpenManage Update Manager Plug-in program |
|
Security
|
• Encryption signature firmware
• Safe guidance
• Secure erasure • Wafer trust root
• System lock (requires iDRAC9 Enterprise or Datacenter)
• TPM 1.2/2.0 FIPS, CC-TCG certification, TPM 2.0 China NationZ
|
-
PowerEdge R250
An innovation engine for businesses of all sizes
Powered by an Intel ® Xeon ®E-2300 processor, the PowerEdge R250 delivers powerful computing power and optimized productivity for common business applications. It supports 3200 MT/s DDR4 speeds and 32 GB DIMMs, up to 128 GB, for memory-intensive workloads.
In addition, for significant throughput improvements, the PowerEdge R250 supports PCIe Gen 4 and provides enhanced heat dissipation efficiency to support growing power and heat dissipation requirements. This makes the PowerEdge R250 an ideal rack-mounted server with 1U form-factor specifications, ideal for handling business-critical workloads, cloud infrastructure, and point-of-sale transactions, both inside and outside the data center for small and medium-sized enterprises.
Improve efficiency and speed up operations through autonomous collaboration
The OpenManage Systems Management portfolio addresses the complexity of administration and protects IT infrastructure. Using Technologies' intuitive end-to-end tools, IT can focus on business development by reducing processes and information repositories to provide a secure, integrated experience. The OpenManage portfolio is the key to an innovation engine that takes full advantage of tools and automation to help you extend, manage, and secure your technology environment.
• Built-in telemetry streams, heat management, and Redfish RESTful apis provide simplified visibility and manageability for better service
Device management
• Intelligent automation allows you to collaborate between human operations and system functions to increase productivity
• Integrated change management capabilities for update planning and seamless zero-touch configuration and implementation
• Full stack management integration with Microsoft, VMware, ServiceNow, Ansible, and many other tools
Protect your data assets and infrastructure with active resilience
The PowerEdge R250 server is designed with a network resilience architecture that deeply integrates security into every stage of the product lifecycle, from development to design to disuse.
• Operate your workload on a secure platform based on encrypted trusted boot and silicon chip trust roots
• Maintain server firmware security using digitally signed firmware packages
• Prevent unauthorized configuration or firmware changes through system locking
• Use the system erase function to securely and quickly erase all data in storage media, including hard disks, SSDS, and system memory
Company Introduction
Beijing Space Time Future Co. LTD, founded on May 10, 2012, located in Haidian District, Beijing, is the sole general agent of mobile workstation in China. The company has diversified its business around the main line of mobile workstation products, and its core business is to provide hardware for , Lenovo, Eaton, Fetian Supercomputer and other customers.
The main industries served are: manufacturing, film and television industry, construction industry, energy industry, universities, financial securities and research. workstation, server, uninterruptible power supply, switch, storage, data room construction, intelligent operation and maintenance management, to provide customers with intelligent room overall solution.
The company is committed to providing customers with high-quality and professional services, developing together with customers, and always pursuing excellent service quality. In order to ensure the efficient and stable operation of customers' integrated system and information system, the company is willing to build a comprehensive service network with our rich experience in technical service group management and standardized and information-based management. Strong technical team for enterprises and institutions IT system escort.
