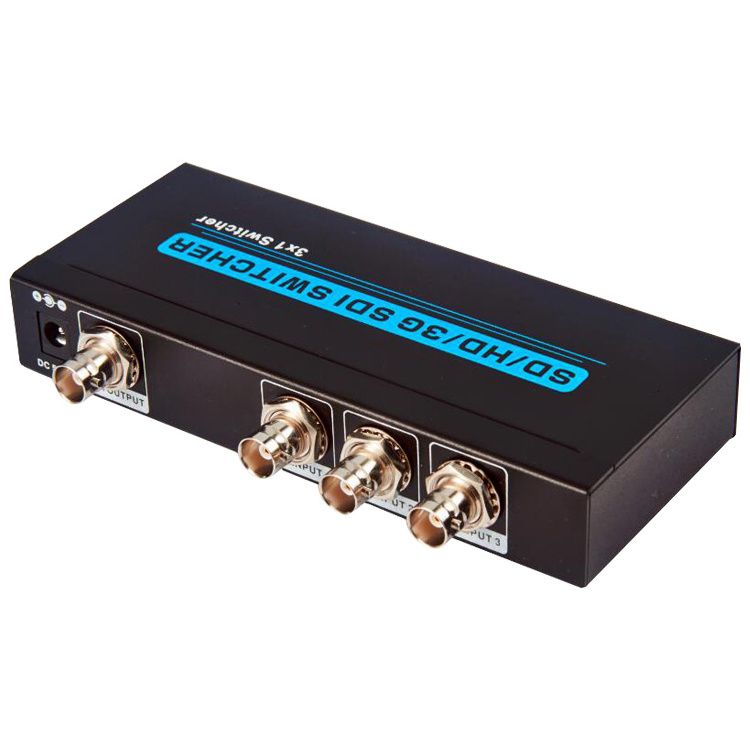

3x1 HD SDI Switcher Extender Converter Monitor Camera Camcorder DV DVR 3G SDI switcher

3x1 HD SDI Switcher Extender Converter Monitor Camera Camcorder DV DVR  3G SDI switcher

1. Introduction

This is a SDI signal switcher , It can switch more groups of SDI signal to a SDI HD monitor by manual button or remote control. This product built-in automatic identification and compatible with SD-SDI, HDSDI, 3GSDI all format of SDI signal. It is the support 2.97Gbps bandwidth, and supports lossless transmission over long distances.

2. Features

This Converter has many features that enable it to perform in a superior manner Among those features you will find:

1. Supports 3 SDI input signal switch to 1 HD SDI monitor .

2. Supports SD-SDI(270Mb/s), HD-SDI(1.485Gb/s), 3G-SDI(2.97Gb/s) video format.

3. Built-in cable equilibrium, clock recovery and drive.

4. Supports resolutions up to 1920x1080@60Hz.

5. Supports signal input and output distances of up to 300m for SD signals, 200m for HD signals and 100m for 3G signals.

6. Supports 5-12V wide voltage input.

3. Package Contents

Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:

(1)3 x 1 SDI S witcher --------------------------------------------- 1PCS

(2) 5V 1A DC Power Supply adapter ------------------------ 1PCS

(3)Remote control-------------------------------------------------1PCS

( 4 ) Operation Manual -------------------------------------------- 1PCS

4. Specifications

5. Operation Controls and Functions

5.1 Transmitter Panel

Please study the panel drawings below and become familiar with the signal

input(S),output(S)and power requirements

.

IR SIGNAL------------------------------IR Signal Receiver

L3------------------------------------------- Input 3 Indication

L2--------------------------------------------Input 2 Indication

L1------------------------------------------- Input 1 Indication

POWER -----------------------------Power input Indication

MANUAL SELECT--------- Input Signal Switch Button

ON/OFF ----------------------------------------Power Switch

DC 5V-12V -------------------------Power input I nterface

SDI OUTPUT-----------------------SDI Output I nterface

SDI IN PUT 1-3 -------------------SDI Input 1-3 I nterface

6. Connection Diagram
