Quick Details
-
Filling Accuracy:
-
≤±1%
-
Voltage:
-
220/380
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MEITAR
-
Dimension(L*W*H):
-
according to customer
-
Weight:
-
KG
-
Product name:
-
Fast Speed Full Automatic Aerosol Filling Machine Line Tin Can Filler
-
Filling range:
-
30-750ML
-
Material:
-
Stainless Steel 304/316
-
applicable can height:
-
85-330mm
-
applicable can diameter:
-
35-71mm
-
Max. Air Consumption:
-
3-5m3/min
-
Function:
-
Automatic Filler
-
Model:
-
2021051806
-
Keywords:
-
aerosol filling machine
Quick Details
-
Machinery Capacity:
-
3600 BPH
-
Packaging Material:
-
Metal
-
Filling Material:
-
aerosol
-
Filling Accuracy:
-
≤±1%
-
Voltage:
-
220/380
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MEITAR
-
Dimension(L*W*H):
-
according to customer
-
Weight:
-
KG
-
Product name:
-
Fast Speed Full Automatic Aerosol Filling Machine Line Tin Can Filler
-
Filling range:
-
30-750ML
-
Material:
-
Stainless Steel 304/316
-
applicable can height:
-
85-330mm
-
applicable can diameter:
-
35-71mm
-
Max. Air Consumption:
-
3-5m3/min
-
Function:
-
Automatic Filler
-
Model:
-
2021051806
-
Keywords:
-
aerosol filling machine

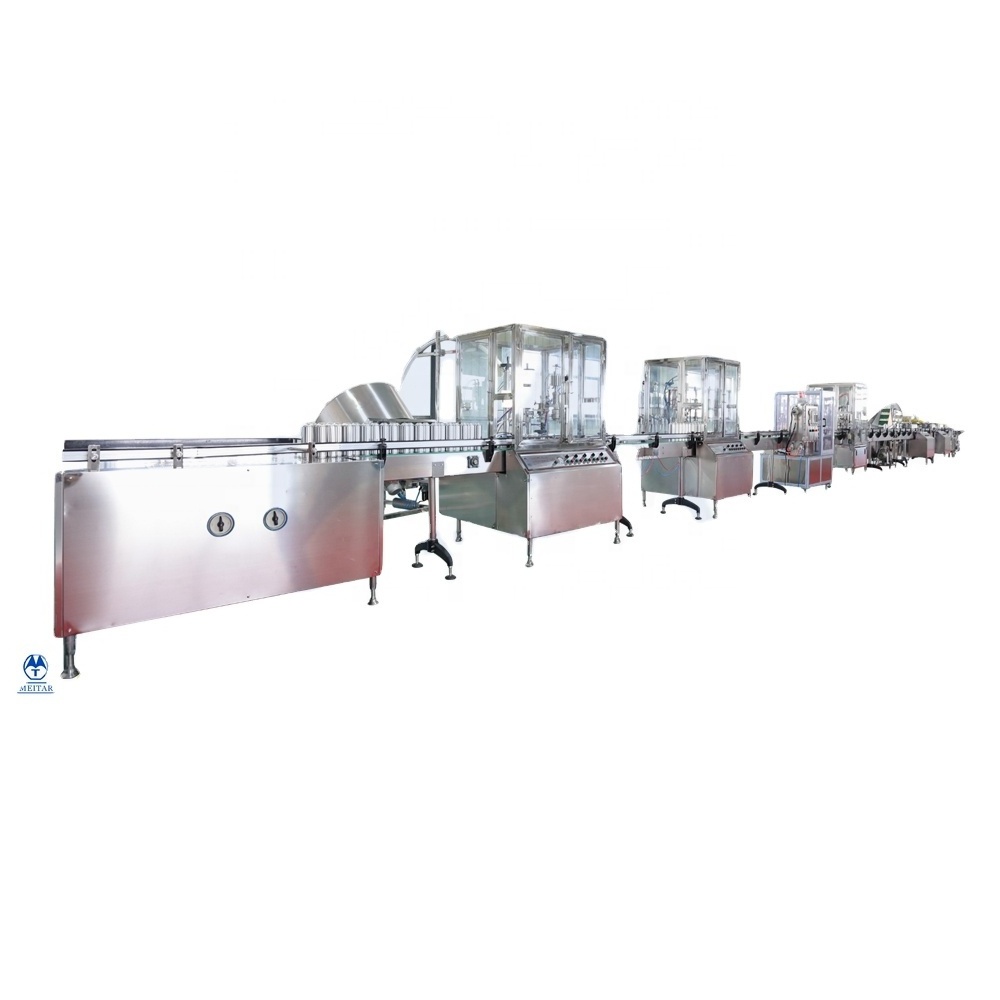

Fast Speed Full Automatic Aerosol Filling Machine Line Tin Can Filler
Product Description
1
Automatic high quality aerosol spray filling machine
is suitable for all typical aerosol products manufacturing covering house care, personal care, health care, car care and other industries. Optional working stations such as valve inserting, weight checking, water bath leakage testing, actuator pressing and cap pressing are optional for customer depending on budget. All the parts that will contact material are made of stainless steel 316 by CNC machine to guarantee an accurate filling.consist of cans arranging machine, rotary liquid filling machine, valve inserting machine, rotary sealing and gas filling , automatic weight checker, water bath, nozzle presser, cap presser, ink jet printer, packing table, etc.
2 Suitable for all typical aerosol products, such as:
air freshener, deodorant, perfume, body spray, fragrance,eau de toilette , toilet spray, disinfection spray;
insecticide, mosquito killer spray, Insect killer,pesticide;
spray paint, color paint spray, snow spray;
pharmaceutical spray,engine cleaner, lubricants ,detergents,leather spray, hair spray, cosmetic spray, self deference spray, pepper spray, food spray, wound spray, type repair spray, mound release spray, furniture spray, anti rust spray, PU foam, fire
extinguisher and LPG cartridge.
air freshener, deodorant, perfume, body spray, fragrance,eau de toilette , toilet spray, disinfection spray;
insecticide, mosquito killer spray, Insect killer,pesticide;
spray paint, color paint spray, snow spray;
pharmaceutical spray,engine cleaner, lubricants ,detergents,leather spray, hair spray, cosmetic spray, self deference spray, pepper spray, food spray, wound spray, type repair spray, mound release spray, furniture spray, anti rust spray, PU foam, fire
extinguisher and LPG cartridge.
|
Technical Parameter
|
|
|
|
Production capacity
|
2400-3600cans/h
|
|
|
Filling capacity
|
30-750ml
|
|
|
Filling accuracy
|
≤±1%
|
|
|
Sealing accuracy
|
≤0.3%
|
|
|
Air pressure
|
0.8-1Mpa
|
|
|
Max. Air Consumption
|
3-5m
3
/min
|
|
|
Applicable can diameter
|
35-71mm
|
|
|
Applicable can height
|
85-330mm
|
|
MAIN FEATURES
1)Full automatic machine contain cans arranging machine, rotary liquid filling machine, valve inserting machine, rotary sealing and gas filling , automatic weight checker, water bath, nozzle presser, cap presser, ink jet printer, packing table, etc.
2) It has intuitive and convenient operation, measuring accurate.
3) Fully in accordance with the GMP standard production and passed CE certification.
4) No bottle no filling
5) High stable, High speed, High precision.
1)Full automatic machine contain cans arranging machine, rotary liquid filling machine, valve inserting machine, rotary sealing and gas filling , automatic weight checker, water bath, nozzle presser, cap presser, ink jet printer, packing table, etc.
2) It has intuitive and convenient operation, measuring accurate.
3) Fully in accordance with the GMP standard production and passed CE certification.
4) No bottle no filling
5) High stable, High speed, High precision.
Name: Aerosol can arranging machine
Name: Liquid filling, Valve supplying& sealing machine
The turntable will choose valves automatically, the valves will be sent to producing line from the pipe productivity. Under the air power, putting the valves and press them on the can tightly. This machine has good capping quality, it saves labors and increase the working efficiency.
Name: Sealing & Gas filling machine
Automatic crimping & gas filling machine are an independent table device. It has one set of valve sealing head and filling heads, also equip with pressure boosters, gas storage tank . All air control operation, which are all SMC brand. Sealing heads has automatic locking device to stabilize sealing size. Will not filling gas if there are no cans there in filling heads.
Name: Automatic weighing machine
This machine adopted advanced weighing sensor, Siemens PLC controlling system and Schneider low-voltage apparatus; the whole
machine is fully explosion-proof, and with the function such as adjustable stepless motor, human-computer dialogue interface, related fault and waiting for feeding indicator, it could detect the weight of each finished can, and reject the unqualified can automatically.
machine is fully explosion-proof, and with the function such as adjustable stepless motor, human-computer dialogue interface, related fault and waiting for feeding indicator, it could detect the weight of each finished can, and reject the unqualified can automatically.
NAME:AUTOMATIC WATER BATH LEAK TESTER
The machine has an explosion proof motor and is equipped with an automatic overload breaker to guarantee the safety running. The explosion proof electric heating tubes installed in the water tank can quickly heat up the water to a desired temperature and automatically control the temperature. The hanging jig is tightly clamped and won't be dropped off. The machine is attached with the automatic all-drying device.
NAME: AUTOMATIC SPRAY NOZZLE PRESSER
This machine consist of nozzle head machine, spray nozzle head presser and PLC programmed control,sort and conveyor of spray head, self compress of spray head and aerosol cans, all can come true, It is excellence in high speed, low noise and high automation.
NAME: AUTOMATIC CAP PRESSER
This machine consist of cap arranging machine,cap presser and PLC programmed control,Can finished sort and conveyor of cap, self compress of cap and aerosol cans, It is excellence in high speed, low noise and high automation.
