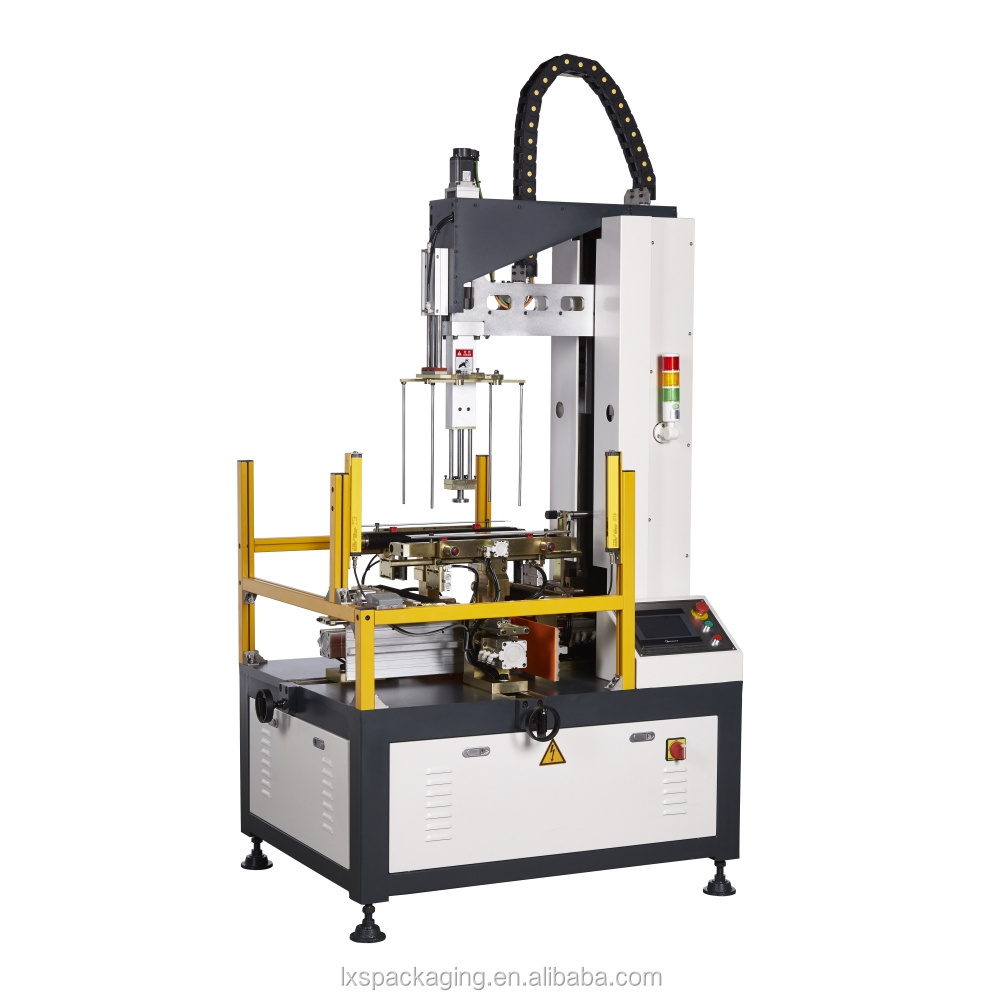

LS-F6 Automatic mobile phone case boxes making machine
LS-F6 Automatic mobile phone case boxes making machine
LS-F6 Automatic mobile phone case boxes making machine
LS-F6 Automatic mobile phone case boxes making machine
LS-F6 Automatic mobile phone case boxes making machine
LS-F6 Automatic mobile phone case boxes making machine
LS-F6 Automatic mobile phone case boxes making machine
LS-F6 Automatic mobile phone case boxes making machine

LS-F6 Automatic mobile phone case boxes making machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $12000
≥10 Sets
US $9000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Dimension(L*W*H):
1220*960*2100mm
Weight:
980 KG
Model Name:
LS-F6
Name:
LS-F6 Automatic mobile phone case boxes making machine
max box size:
430*350*120mm
min box size:
80*65*10mm
air supply:
0.6Mpa
working speed:
≤22 pcs/min
power supply:
2.5kw/220v
machine dimension:
1220*960*2100mm
machine weight:
980kg

Quick Details

Voltage:
220V
Place of Origin:
Guangdong, China
Brand Name:
Longxingsheng
Dimension(L*W*H):
1220*960*2100mm
Weight:
980 KG
Model Name:
LS-F6
Name:
LS-F6 Automatic mobile phone case boxes making machine
max box size:
430*350*120mm
min box size:
80*65*10mm
air supply:
0.6Mpa
working speed:
≤22 pcs/min
power supply:
2.5kw/220v
machine dimension:
1220*960*2100mm
machine weight:
980kg
LS-F6
About LS-F6
LS-F6 Rigid box making machine is applied for wrapping the glued paper in the pasted box. It can finished side wrapping, edge folding (≤50 mm), tucking in and air pressing at one time. It has applied Penumatic and Compressor air to driving the machine running.
This machine is setting by manual, whcih will cost around 15 minutes. It is an ideal equipment for customer which has different
quantity orders. Especially the customer seeking for higher quality products.
It has two edge folding model and four types tucking in model. The shortest time of one box finished is 1.7 S. The max speed of this machine can reach 30 pcs/min to certain boxes.
Required mold when change size

Plastic mold

Durable and expensive

Wooden mold

Easy made and cheaper

Slant side box mold configurations

Customization
Working process

1. Box positioning on glued paper

2. Long side wrapping

3. Edge folding

4. Short side wrapping

5. Tucking in

6. Air pressing

Box range of LS-F6

Normal rigid box

Tucking into bottom

Max wrapping height is 65mm

65-80mm wrapping height require modified

Slant sides boxes

Require modified mold, tucking in blade and air pressing board. Shortest height side require ≥ 10mm

Long edge folding

Require modification when the edge length at 50-100mm.
Max edge folding length is 100mm

Small box

Require customization
Min box size is 50*50*15mm

Opposite edge folding

Require customization
Book-type box require this type folding way
Customer Photos
Gift box solutions
Expo with customers
Certification
Our Service

Pre-sale service.

* Inquiry and consulting support.

* Sample testing support.

* Factory visit.

* Order confirmation.


After-sale service.

* Machine installation and training in customer factory.

* Engineers available to service machinery overseas.

* On-line technology support.

* Free machine parts replacement during warranty.

* Whole life of machine service.

FAQ

1.What is LXS company machine warranty?----1 year warranty including free machine parts replacement ( consumables are not included).

2.Does your machine with CE certificate?----Yes.We have CE ,ISO9001 .

3.What is the production time while placing order?---- Within 7-30 workdays.

4.Do you have stock product to sell?----Normally we do,it depends on which models you inquired .

5.What is your lead time?----Within 5-30 workdays ,we will arrange your order upon receiving your 30% deposit on order and ship out the machine before receiving your 70% remaining payment.

6.Can LXS company handle shipping for customers?----Yes.(Please provide us your requested sea port and we can check the shipping cost from logistic company and arrange shipping for you.

7.Does the packing strong?----Yes, of course! All of our export packing is with strong wooden case,all are confirm to export packing standard.

8.How about after-sales service process?----When your machine has problem, just contact your sales and we will solve your problem ASAP.

9.Can your engineer come to us for installing the machine & handle problems?---Yes,we can.And it is free-cost for the installing & training for 7 work days,you just need to pay for the air tickets & accommodation for our engineer.

10.Are you a manufacturer?----Yes, we are a manufacturer with over 12 years professional experience .Welcome the exclusive agents in Europe/Asia/Africa/America to join us.

11.What is the minimum quantity for order?----1 set, we done business step by step with high quality products and excellent services.

12.Do you inspect the finished products?----Yes, each step of production products will be inspection by our QC department and the running inspection video will be sent to to you for your verification before shipping.

13.What’s the payment term?---FOB/CIF terms,payment by T/T 30% in advance,70% balance before shipping.(It is negotiable)


If you have any inquiry, please don’t hesitate to contact us. We will reply you at the first time as we can.
