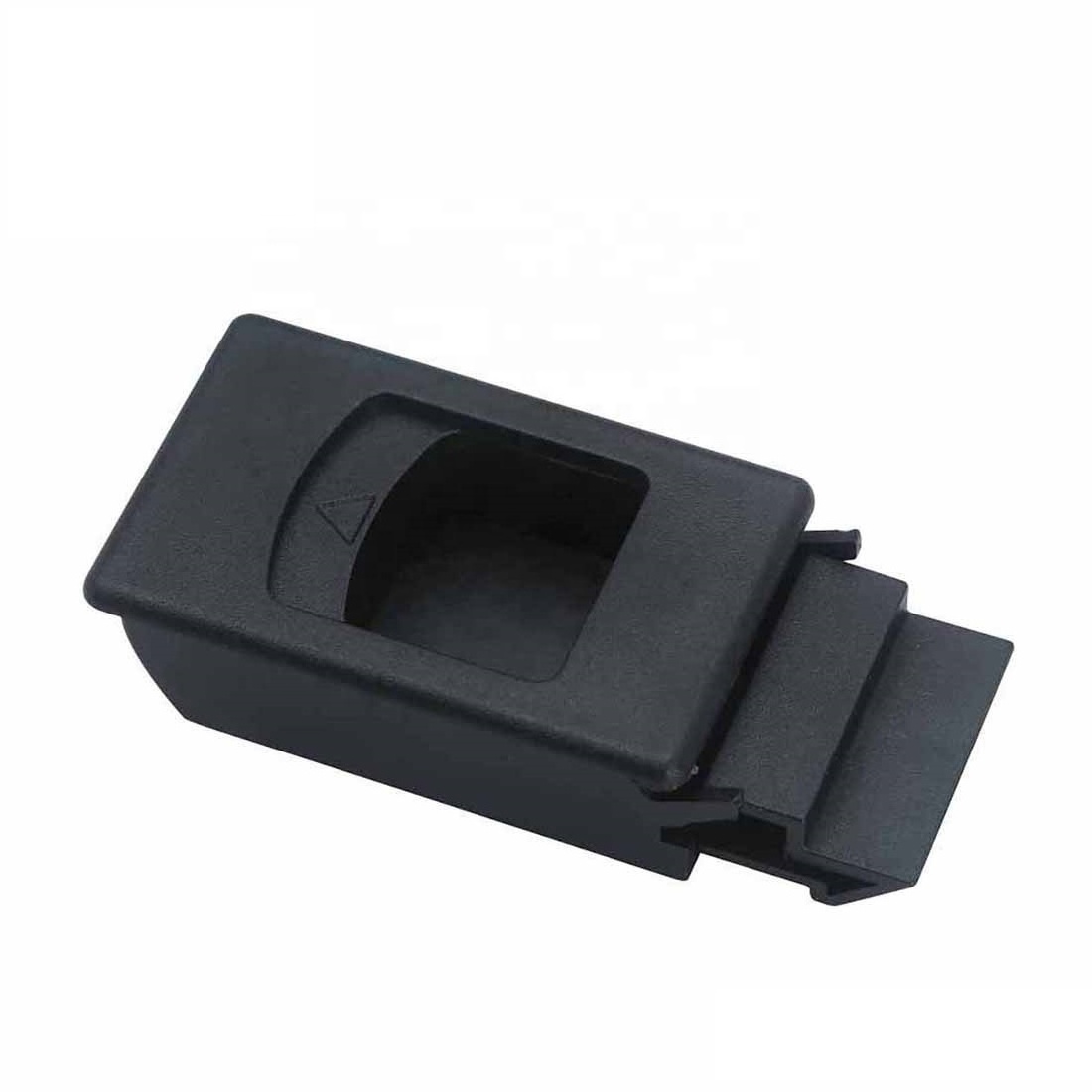

LM-725 Door Draw Locking Snap In Lock Electrical Panel Tool Box Toggle Latch Push to Close Flush Pull Plastic Slide Slam Latch

FOB Reference Price: Get Latest Price

≥10 Pieces

US $1.4

≥50 Pieces

US $1.37

≥100 Pieces

US $1.34

≥200 Pieces

US $1.3

Free Inquiry

Customized Request

Quick Details

Product Description

Product description for plastic latch

Material:Nylon glass fiber
Surface Treatment:Black
Panel Thickness:1-2mm

Type: plastic Sliding door Flush Panel Slam Latch

SIZE SPECIFICATION OF sliding latch

LM-725 Industrial Enclosures plastic Sliding door Flush Panel Slam Latch

Product Detail
Product Name	Slide latch, slide lock, plastic latch, Sliding Flush Latch, Push to Close Latch, plastic latch
Advantage	1) Slide to open, Mounts flush to the panel
	2) Opening and closing can be performed by one touch.
	3) Designed for panel thickness from 1~2mm.
	4) Use it at normal temperature
	5) Safe and convenient to operate
Feature	The latch is held in position by spring tension. when the panel is pushed closed, the sloped pawl edge meets the support corner and slides the latch back. As the panel closes fully, the pawl clears the edge of the support and the spring slides the latch forward to the closed position. The panel is opened by sliding the latch back with a finger.
Material	Thermoplastic (Nylon glass fiber)
Standard color	Black
Applicable panel thickness	1-2mm
Panel drilling dimensions	39.5*25.5mm
Similar products	Key locking versions LM-3303 is optional.
Usage and Feature	Cubicle, control panel, cabinet door, distribution panel, kitchen furnishings, electronic control box, cubicle and machinery door.
Sample	Free samples in reasonable quantity for checking quality, freight charge should be paid by customer.
MOQ	100 PCS
Certification	ISO9001:2008
Payment	T/T, L/C, Paypal or others for negotiation.
OEM/ODM orders are accepted
