Quick Details
-
Voltage:
-
220/380V 50Hz/60Hz
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
CHENGQI
-
Dimension(L*W*H):
-
1800*800*1480mm+
-
Weight:
-
350 KG+250KGKG
-
Certification:
-
CE Certificate
-
Product name:
-
shrink wrapping packaging machine
-
Packing material:
-
POF
-
Machine type:
-
Fully automatic
-
Packing speed:
-
15~30pcs/min
-
Item:
-
FQL
-
Function:
-
Sealing Cuttting Shrink
-
Keyword:
-
Heat shrink machine
-
Customize:
-
Accept
Quick Details
-
Packaging Type:
-
Film
-
Packaging Material:
-
Plastic
-
Driven Type:
-
Pneumatic
-
Voltage:
-
220/380V 50Hz/60Hz
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
CHENGQI
-
Dimension(L*W*H):
-
1800*800*1480mm+
-
Weight:
-
350 KG+250KGKG
-
Certification:
-
CE Certificate
-
Product name:
-
shrink wrapping packaging machine
-
Packing material:
-
POF
-
Machine type:
-
Fully automatic
-
Packing speed:
-
15~30pcs/min
-
Item:
-
FQL
-
Function:
-
Sealing Cuttting Shrink
-
Keyword:
-
Heat shrink machine
-
Customize:
-
Accept
Product Description
Performance features

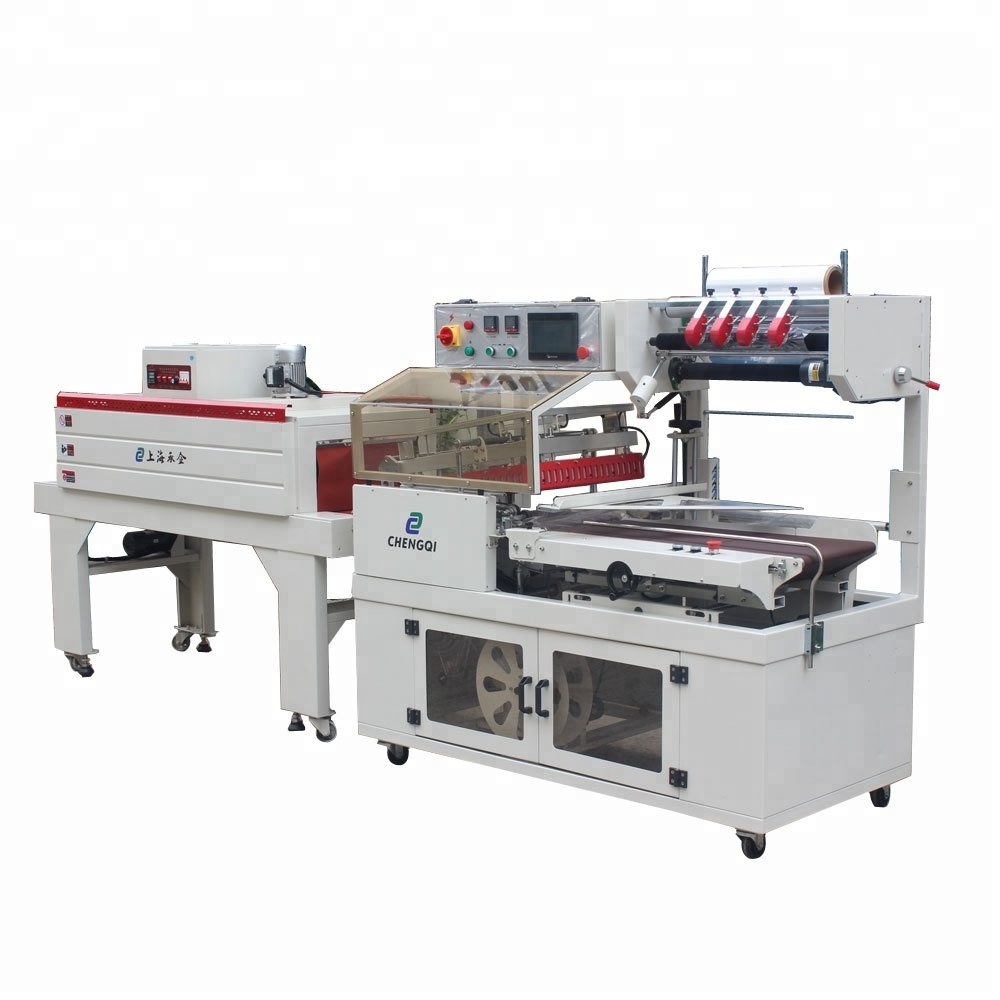

•FQL450S is fully automatic L bar sealer which is widely used in mass production packaging line with high efficiency.
•With movable type punching device, you can switch the punching position and control the pinholes number.
•Sealing knife uses the special steel knife with Daikin Teflon which is anti-stick coating & anti-high temperature. So the sealing will not have cracking, coking and smoking with zero pollution.
•Using digital temperature controller which built-in PID function. Sealing blade temperature is extremely sensitive and accurate which can be set arbitrarily.
•Imported photoelectric sensor, positioning accuracy, fast response.
•Adopt Panasonic PLC programmable controller and WEINVIEW 7-inch man machine interface, simple operation.
• Manual adjustment film-guide system and feeding conveyor platform make the machine suitable for different width and height items.
•Equipped with automatic scrap recycling mechanism, built-in film broken alarm function.
•The sealing blade itself is also quipped with automatic protection function which effectively prevent from accidental cutting.
•Automatic mode and manual mode can be switched at any time which convenient to replace the shrink film.
•The entire machine realizes unmanned operation with the production line connecting.
•Apply to daily necessities, food, cosmetics, pharmaceutical, hardware and other industries shrinking packaging.
Technical Parameter
L bar sealer
|
Model
|
FQL-450S
|
|
Power supply
|
220V 1/3ph 50/60Hz
|
|
Power
|
1.8KW
|
|
Packing Size
|
(L+H)<550mm (W+H)<400mm (H)<130mm
|
|
Sealing Size
|
(L)550×(W)450mm
|
|
Table height
|
800mm
|
|
Packaging speed
|
15~30pcs/min(Determined by product size)
|
|
Air source
|
6kg/cm2
|
|
Shrink film
|
POF fold film
|
|
Shrink film size
|
(W)≤530mm;(D)≤250mm;(weight)≤35KG
|
|
Sealing form
|
L type full closed
|
|
Overall dimension
|
(L)1800×(W)800×(H)1480mm
|
|
Package size
|
(L)1850×(W)900×(H)1630mm
|
|
G./N. weight
|
380/350kg
|
Heat shrink tunnel
|
Model
|
BS4522N
|
|
Power supply
|
220/380V 3ph 50/60 Hz
|
|
Power
|
12KW
|
|
Table height
|
780+50mm
|
|
Conveyor load
|
30KG
|
|
Conveyor speed
|
1-15m/min
|
|
Tunnel size(L×W×H)
|
1500×450×220mm
|
|
Overall dimension(L×W×H)
|
1910×700×1320mm
|
|
Package size(L×W×H)
|
1960×800×1470mm
|
|
G./N. weight
|
290/250Kg
|
Detailed Images
Layout
Application Range
Applies to software, food, cosmetics, printing, pharmaceutical, flooring, ceramic, beverages, hardwareother industries large quantities of shrink wrap.
Packed sample
Our Company
Company preview
CHENGQI in Exhibition
Certificate
Packing & Delivery
Packaging Details: Standard Export Wooden Box
Delivery Detail: Common specifications are available in stock
Our Service
1. We can customize machine according to your requirements and your products.
2. One year Warranty. We will replace the spare parts for free within one year which are non-man made damage except the wearing parts. After the guarantee, we will offer you the most favorable lifelong spare parts.
FAQ
Q1: How do we test your machine?
When the machine complete manufactured, we will send video for you check , you can also come to our factory to test and learn how to operate it.
Q2: What information shall I provide you when I need your offer?
Normally, please tell us what product you plan to pack and please send me your product size(L*W*H) with weight then we can quote exactly what you need.
Q3: More questions or information please feel free to contact us at any time!
