Quick Details
-
Ink Type:
-
Sublimation ink
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Summitprint
-
Voltage:
-
220V
-
Dimensions(L*W*H):
-
3640*960*1540mm
-
Weight:
-
800 KG
-
Marketing Type:
-
Hot Product 2020
-
Brand:
-
Summitprint
-
Model:
-
SMT1604-FP
-
Max Printing Width:
-
1600mm
-
Printhead:
-
Ep son head*4
-
Color:
-
4 Color
-
Ink Color:
-
CMYK
-
Resolution:
-
1440dpi Max
-
Ink:
-
Sublimation Ink
-
Rip Software:
-
Maintop 6.1
-
Printing content:
-
Flag/banner/fabric
Quick Details
-
Print Dimension:
-
Other
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Ink Type:
-
Sublimation ink
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Summitprint
-
Voltage:
-
220V
-
Dimensions(L*W*H):
-
3640*960*1540mm
-
Weight:
-
800 KG
-
Marketing Type:
-
Hot Product 2020
-
Brand:
-
Summitprint
-
Model:
-
SMT1604-FP
-
Max Printing Width:
-
1600mm
-
Printhead:
-
Ep son head*4
-
Color:
-
4 Color
-
Ink Color:
-
CMYK
-
Resolution:
-
1440dpi Max
-
Ink:
-
Sublimation Ink
-
Rip Software:
-
Maintop 6.1
-
Printing content:
-
Flag/banner/fabric
Product Description
Specification
|
Model No.
|
SMT1804-FP
|
SMT2204-FP
|
SMT3204-FP
|
SMT5204-FP
|
|||
|
Printhead
|
Type
|
Epson DX8 Print head
|
|
|
|||
|
|
Head Quantity
|
2/3/4/6 pcs
|
|
|
|||
|
|
Nozzles
|
1440 Nozzles per Head
|
|
|
|||
|
|
Height
|
2-8mm Above Media Adjustable
|
|
|
|||
|
Max Textile Width
|
1.8m
|
2.2m
|
3.3m
|
5.2m
|
|||
|
Max Printing Width
|
1.6m
|
2m
|
3m
|
5m
|
|||
|
Resolution(dpi)
|
1440dpi
|
|
|
|
|||
|
Color
|
4 Color
|
|
|
|
|||
|
Media Types
|
Polyester, Chemical Fiber, Urethane Elastic Fibre, 35% Cotton,
Flag cloth, banner cloth, fine woven cloth, satin cloth, knitted cloth, stretch cloth, canvas... |
|
|
|
|||
|
Ink
|
Type
|
Sublimation Ink
|
|
|
|||
|
|
Cartridge
|
Continuous Ink Supply
|
|
|
|||
|
Speed
|
2 Head
|
90 sqm/h
|
|
|
|||
|
|
3 Head
|
120 sqm/h
|
|
|
|||
|
|
4 Head
|
160 sqm/h
|
|
|
|||
|
|
6 Head
|
200 sqm/h
|
|
|
|||
|
Feed&Take Up
|
Automatic Media Feeding (Standard) & Filter System(Optional)
|
|
|
|
|||
|
Cleaning System
|
Automatic Cleaning, Anti-Clogging Flash Function & Capping System
|
|
|
|
|||
|
Heating System
|
Internal Heater Equipped
|
|
|
|
|||
|
Cooling System
|
Cooling Fan Equipped
|
|
|
|
|||
|
Environment
|
Temperature: 20-28°C, Humidity: 40-60%
|
|
|
|
|||
|
Rip Software
|
Maintop 6.1Rip
|
|
|
|
|||
|
Interface
|
Ethernet
|
|
|
|
|||
|
Operation System
|
Windows 7 / XP
|
|
|
|
|||
|
Power
|
AC 110 / 220-380V50Hz, 2000W
|
|
|
|
|||
|
Size&Weight
|
Machine
|
L2960mm W800mm H1270mm / 600KG
|
|
L5300mm W960mm 1540mm 800KG
|
|||
|
|
Packing
|
L3060mm W900mm H1700mm / 800KG
|
|
L5600mm W1000mm H1560mm 980KG
|
|||
|
Description
|

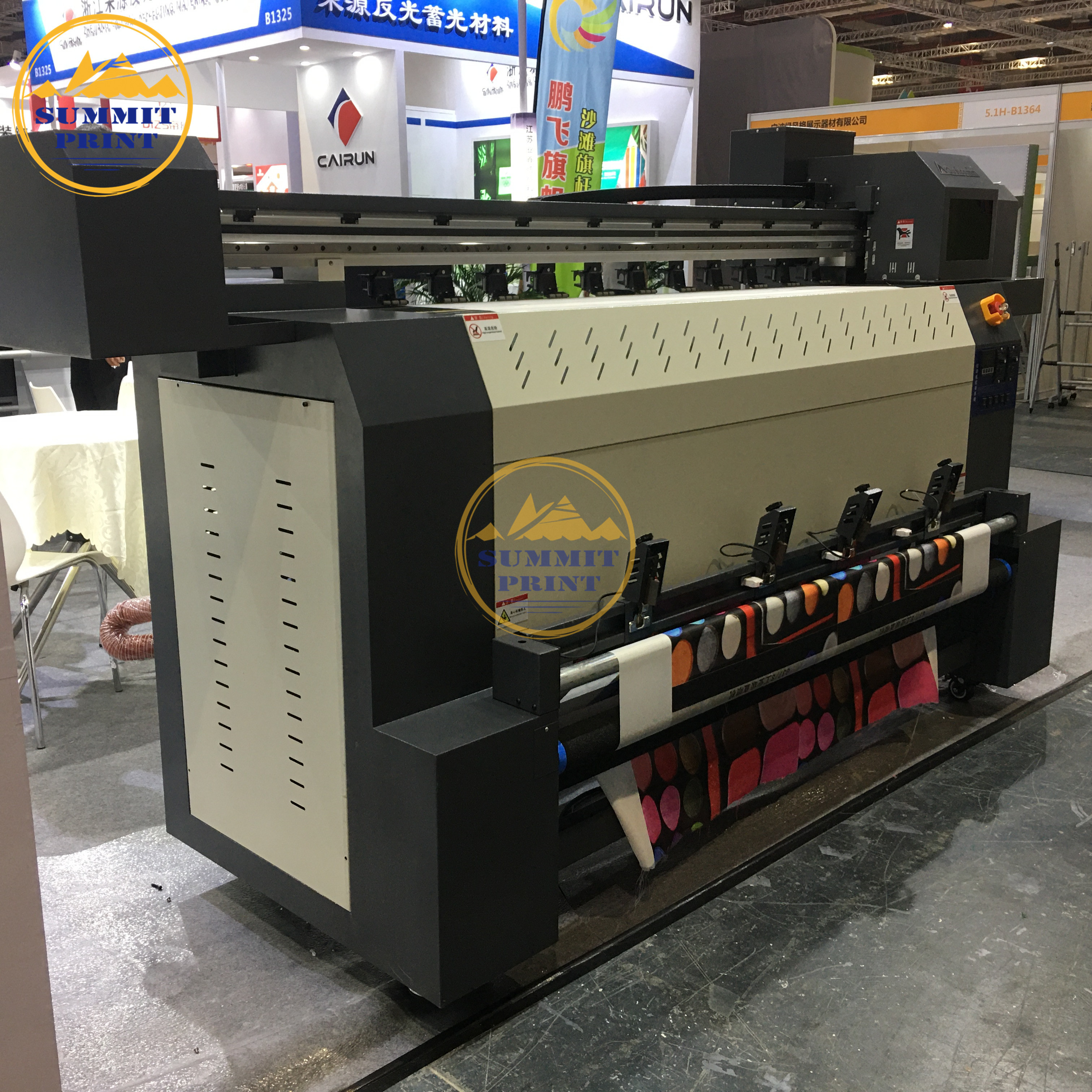

The direct textile printer Summit FP-180 /Summit FP-220/Summit FP-330 prints directly on textile fabric, mostly on polyester
textile. Unlike the traditional print and transfer process, the new direct textile printer saves a lot time and labor cost. Now in China, most of the textile printing company are using direct textile printer, and Summit FP-180 /Summit FP-220/Summit FP-330 is no doubt the leading one. |
|
|
|
|||
