Quick Details
-
Model Number:
-
20mm~1600mm
-
Specification:
-
DN20mm~DN1600mm
-
Length:
-
5.8m or 11.9m
-
Thickness:
-
2.0mm~117.6mm
-
Standard:
-
DIN8074,ISO4427,AS/NZS4130
-
Product name:
-
400mm 500mm 560mm Large Diameter HDPE Sewage Pipe for Drainage
-
Color:
-
Black with blue stripe or as required
-
Application:
-
Water supply
-
Connection:
-
Butt Fusion and socket fusion
-
Working pressure:
-
0.4Mpa-3.0Mpa
-
Raw material:
-
PE80, PE100
-
Lifespan:
-
Over 50 years
-
Packing:
-
Standard Packing
-
Feature:
-
Non-toxic
-
Keyword:
-
HDPE Pipe 600mm
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
ODM/OEM
-
Model Number:
-
20mm~1600mm
-
Specification:
-
DN20mm~DN1600mm
-
Length:
-
5.8m or 11.9m
-
Thickness:
-
2.0mm~117.6mm
-
Standard:
-
DIN8074,ISO4427,AS/NZS4130
-
Product name:
-
400mm 500mm 560mm Large Diameter HDPE Sewage Pipe for Drainage
-
Color:
-
Black with blue stripe or as required
-
Application:
-
Water supply
-
Connection:
-
Butt Fusion and socket fusion
-
Working pressure:
-
0.4Mpa-3.0Mpa
-
Raw material:
-
PE80, PE100
-
Lifespan:
-
Over 50 years
-
Packing:
-
Standard Packing
-
Feature:
-
Non-toxic
-
Keyword:
-
HDPE Pipe 600mm
Products Description

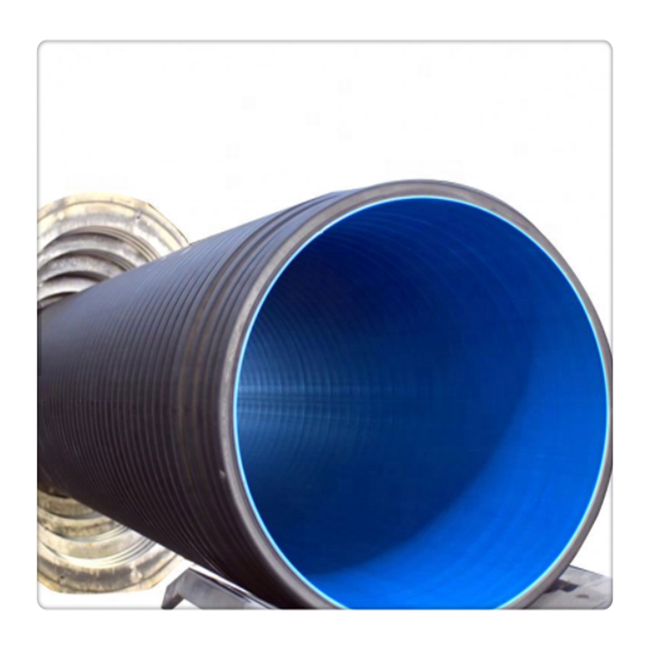

HDPE Double Wall Corrugated Pipe Plastic Drain Pipe Culvert tube
HDPE Double Wall Corrugated Sewage Pipe is made of high density polyethylene, which is co-extruded by inner and outer extruders respectively and formed in one step. The inner wall is flat and smooth, and the outer wall is corrugated. It has an annular outer wall with a hollow layer between the inner and outer walls. It has unique structure and high strength.The whole production process is: extrusion-compounding-molding-cooling-cutting-finished product.
Specification: Unit:mm
|
The Specification of HDPE Double-Wall Corrugated Pipe (mm)
|
|
|
|
|
|
|
||||||
|
DN/ID
|
Min ID
|
OD
|
O.D.tolerance
|
Min Thinkness
|
Bellmouth ID
|
Min Bellmouth ID
|
||||||
|
225
|
220
|
255
|
±3
|
≥1.7
|
264-269
|
≥55
|
||||||
|
300
|
294
|
330
|
±3
|
≥2.0
|
348-351
|
≥64
|
||||||
|
400
|
392
|
456
|
±3
|
≥2.5
|
465-469
|
≥74
|
||||||
|
500
|
490
|
572
|
±3
|
≥3.0
|
549-553
|
≥85
|
||||||
|
600
|
588
|
690
|
±3
|
≥3.5
|
668-672
|
≥96
|
||||||
|
800
|
785
|
925
|
±3
|
≥4.5
|
888-895
|
≥118
|
||||||
Technical data sheet:
|
Item
|
Index
|
|
Ring stiffness SN4 (KN/m2)
|
≥4
|
|
Ring Stiffness SN8 (KN/m2)
|
≥8
|
|
Impact Strength (%)
|
≤10
|
|
Ring Suppleness
|
The sample is smooth without any recurvation or wall loose
|
|
Oven Experiment
|
no delamination and no crack
|
|
Creep Rate
|
≤4
|
Our Advantages
1.
It has the characteristics of light weight, high ring stiffness, convenient construction,transportation and installation,low installation cost, high ultraviolet resistance stability and good flexibility etc.Compared with other pipes in same diameter,the flow rate of HDPE double-wall corrugated pipe is higher because of its smooth inner wall.
2.
HDPE double-wall corrugated pipe adopts annular structure wall pipe and optimized corrugated structure, so that the pipe has greater strength and appropriate flexibility per unit weight, which makes the raw material more efficient.
3.
Reliable connection to prevent leakage:HDPE double-wall corrugated pipe adopts reinforced design in socket and it is connected with sealing rubber ring which makes the pipe more firm and reliable before and after connection.And the strict control of the size of the socket joint makes the installation more convenient and leakage prevention more effective.
4.
Implement the standard "Buried Polyethylene (PE) Structural Piping System Part I: Polyethylene Double Wall Corrugated Pipe"
GB/T19472.1-2004
Application Field
1.Sewer and drainage
2.Frontage drains for terrace and other residential units in housing schemes
3.Perimeter drains for commercial, industrial units and individual factories
4.As collector drains in subsoil system in road, highway, open field, stadium, retaining wall or parking space
5.As collector drains in subsoil system, sewerage treatment plant sludge drying bed under drains
