Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
LTMG
-
Model Number:
-
T180
-
Dimension(Long * Breadth * High):
-
6350*3416*3130mm
-
Product name:
-
mini 180h bulldozer
-
Horse Power:
-
180hp
-
Max.drop below ground:
-
400mm
-
Blade Capacity:
-
4.3-8.6cbm
-
Max.Lift:
-
1124mm
-
Weight Of Blade:
-
2218
-
Fuel Tank Capacity:
-
320L
-
Max.Depth:
-
584mm
-
Blade Width X Height:
-
3416*1149
Quick Details
-
Machine Weight:
-
18800 KG
-
Dozing Capacity:
-
4.3m³, 8.6m³, 4.5m3
-
Marketing Type:
-
New Product 2022
-
Place of Origin:
-
China
-
Brand Name:
-
LTMG
-
Model Number:
-
T180
-
Dimension(Long * Breadth * High):
-
6350*3416*3130mm
-
Product name:
-
mini 180h bulldozer
-
Horse Power:
-
180hp
-
Max.drop below ground:
-
400mm
-
Blade Capacity:
-
4.3-8.6cbm
-
Max.Lift:
-
1124mm
-
Weight Of Blade:
-
2218
-
Fuel Tank Capacity:
-
320L
-
Max.Depth:
-
584mm
-
Blade Width X Height:
-
3416*1149
Product Description

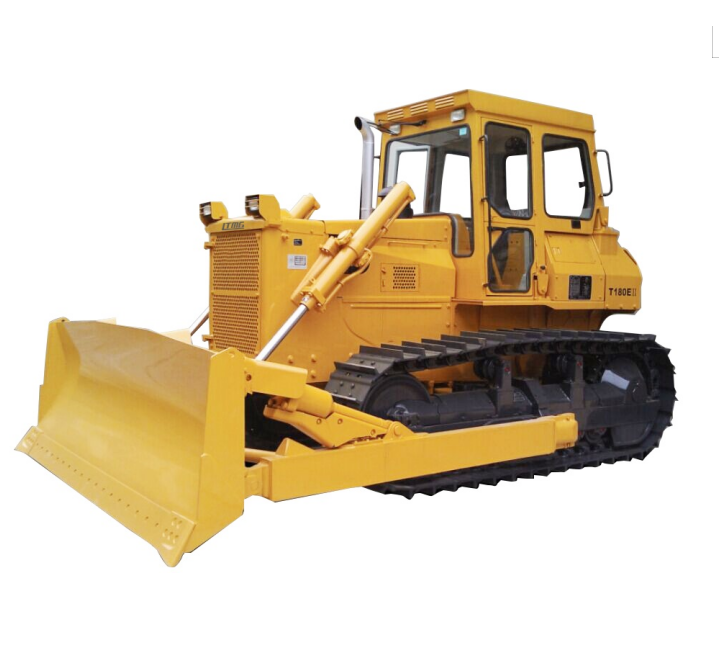

LTMG T180 180hp Bulldozer
ui
Products Specifications
|
Model
|
T180
|
|
|
|
||
|
SPECIFICATION
|
Unit
|
|
|
|
||
|
Blade type
|
/
|
Straight-tilt
|
Angle
|
U-Blade
|
||
|
Operating Weight
|
kg
|
18800
|
19000
|
19200
|
||
|
Min.Ground Clearance
|
mm
|
400
|
400
|
400
|
||
|
Min.Turning Radius
|
m
|
3.3
|
3.3
|
3.3
|
||
|
Ground Pressure
|
Mpa
|
0.069
|
0.07
|
0.07
|
||
|
Track Gauge
|
mm
|
1880
|
1880
|
1880
|
||
|
Max. Pulling Force
|
KN
|
147.2
|
147.2
|
147.2
|
||
|
Grade Ability
|
°
|
30
|
30
|
30
|
||
|
Overall Dimensions(L*W*H)
|
mm
|
6350*3416*3130
|
6350*3970*3130
|
6350*4046*3130
|
||
|
Forward Travel Speed
|
km/h
|
3.9-10.9
|
|
|
||
|
Reverse Travel Speed
|
km/h
|
5-13.7
|
|
|
||
|
WORK EQUIPMENT
|
|
|
|
|
||
|
Blade Capacity
|
m3
|
4.5
|
4.3
|
8.6
|
||
|
Blade Width X Height
|
mm
|
3416×1149
|
3970×1050
|
4064×1386
|
||
|
Max.Lift
|
mm
|
1124
|
1250
|
1250
|
||
|
Max.Depth
|
mm
|
584
|
545
|
545
|
||
|
Max.tilt Adjustment
|
mm
|
860
|
400
|
400
|
||
|
Pitch Adjustment
|
°
|
55
|
55
|
55
|
||
|
Capability (Theoretical value 40m)
|
m3/H
|
297.4
|
297.4
|
297.4
|
||
|
Weight Of Blade
|
kg
|
2218
|
2015
|
2223
|
||
|
ENGINE
|
|
|
|
|
||
|
Model & Type
|
/
|
Cummins NT855-C280S10
|
|
|
||
|
Rated Revolution
|
rpm
|
1850
|
|
|
||
|
Flywheel Horsepower
|
HP
|
180
|
|
|
||
|
Cylinder Number-BoreX Stroke
|
mm
|
6-139.7X152.4
|
|
|
||
|
Piston Displacement
|
L
|
14
|
|
|
||
|
Min. Fuel Consumption
|
g/kW.h
|
212
|
|
|
||
|
Max.Torque
|
Nm/rpm
|
877/1250
|
|
|
||
|
Starting Method
|
/
|
Starting motor 24V 7.5kW
|
|
|
||
|
COOLANT AND LUBRICANT CAPACITY
|
|
|
|
|
||
|
Fuel Tank Capacity
|
L
|
320
|
|
|
||
|
Hydraulic Tank Capacity
|
L
|
108
|
|
|
||
|
Engine oil Capacity
|
L
|
45
|
|
|
||
|
Torque Converter ,Transmission, Bevel Gear, Steering Clutch Capacity
|
L
|
122
|
|
|
||
|
Final Drive Capacity
|
L
|
33
|
|
|
||
wet
