- Product Details
- {{item.text}}
Quick Details
-
Drilling Speed:
-
620~2620/740~3140rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JSBESTECH
-
Model Number:
-
ZJ4113
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
430*340*230 mm
-
Power (kW):
-
0.25/0.35(Optional)
-
Weight (KG):
-
17 KG
-
Marketing Type:
-
New Product 2023
-
Max Drilling Diameter:
-
13mm(1/2'')
-
Motor Power:
-
250/350w(Optional)
-
Chuck Capacity:
-
1.5-13mm
-
Spindle Travel:
-
50mm
-
Class Of Speed:
-
5
-
Speed50/60Hz:
-
620~2620/740~3140rpm
-
Spindle Taper:
-
B16
-
Swing:
-
210mm
-
Table Size:
-
160x160mm(cast iron)
-
Weight:
-
17kg
Quick Details
-
type:
-
Column Drill Press
-
Max. Drilling Dia. (mm):
-
13 mm
-
Range of Spindle Speed(r.p.m):
-
740 - 3140 r.p.m
-
Drilling Speed:
-
620~2620/740~3140rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JSBESTECH
-
Model Number:
-
ZJ4113
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
430*340*230 mm
-
Power (kW):
-
0.25/0.35(Optional)
-
Weight (KG):
-
17 KG
-
Marketing Type:
-
New Product 2023
-
Max Drilling Diameter:
-
13mm(1/2'')
-
Motor Power:
-
250/350w(Optional)
-
Chuck Capacity:
-
1.5-13mm
-
Spindle Travel:
-
50mm
-
Class Of Speed:
-
5
-
Speed50/60Hz:
-
620~2620/740~3140rpm
-
Spindle Taper:
-
B16
-
Swing:
-
210mm
-
Table Size:
-
160x160mm(cast iron)
-
Weight:
-
17kg
Product Description

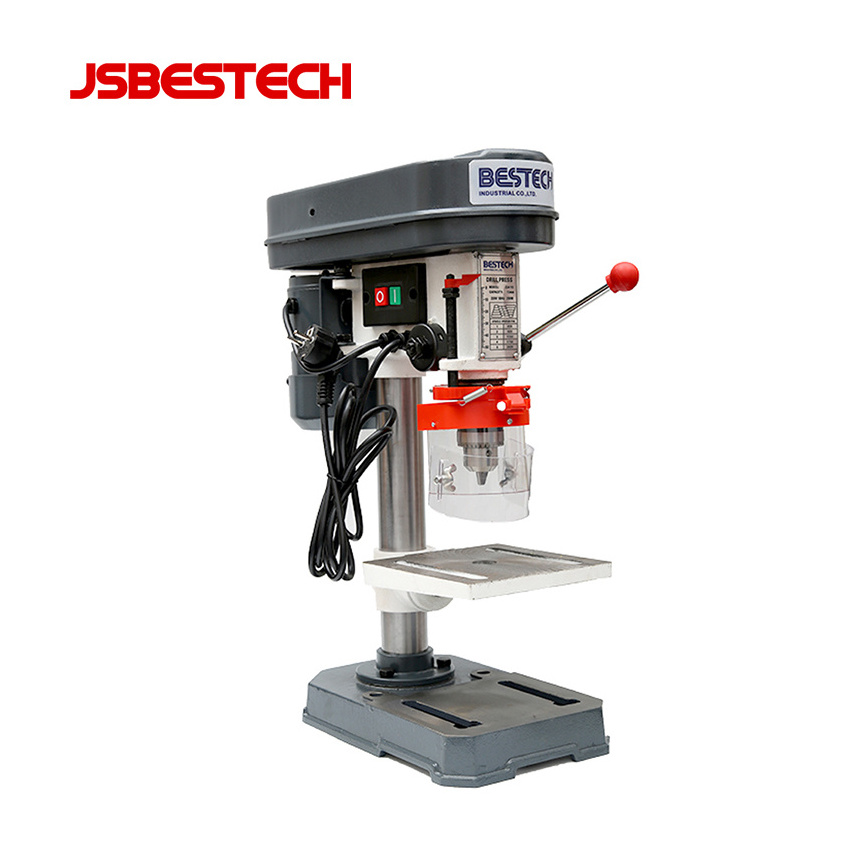

ZJ4113 central machinery bench drill press parts
● Machine approved "CE"
● Height adjustment of the drilling table viatoothed rack
● Worktable can be inclined by ±45° and slewed by 360°
● Largely diemensioned,height-adjustable screening grid with safety switch
● Guaranteed true running accuracy of less than 0.02 drilling spindle sleeve
● Heavy type for home shops,maintanance shops and light industrial applications
● Height adjustment of the drilling table viatoothed rack
● Worktable can be inclined by ±45° and slewed by 360°
● Largely diemensioned,height-adjustable screening grid with safety switch
● Guaranteed true running accuracy of less than 0.02 drilling spindle sleeve
● Heavy type for home shops,maintanance shops and light industrial applications
Specification
|
Model
|
ZJ4113
|
|
Max Drilling Diameter
|
Φ13mm(1/2’’)
|
|
Motor Power
|
250/350w
(Optional)
|
|
Chuck Capacity
|
1.5-13mm
|
|
Spindle Travel
|
50mm
|
|
Class Of Speed
|
5
|
|
Speed50/60Hz
|
620~2620/740~3140rpm
|
|
Spindle Taper
|
B16
|
|
Max distance from spindle axis to surface of column
|
105mm
|
|
Max distance from spindle end to surface of table
|
220mm
|
|
Max distance from spindle end to surface of base
|
300mm
|
|
Swing
|
210mm
|
|
Table Size
|
160×160mm
(cast iron)
|
|
Base Size
|
290×190mm
(cast iron)
|
|
Column Diameter
|
Φ46mm
|
|
Height
|
580mm
|
|
Net Weight/ Gross Weight
|
16/17kg
|
|
Packing Size
|
430×340×X230mm
|
|
Standard Accessories
|
Optional Accessories
|
|
Drill chuck
|
Copper motor
|
|
Wrench set
|
Chuck guard with power off
|
|
Aluminium motor
|
Micro switch
|
|
|
Vice
|
|
|
Key less drill chuck
|
|
|
Laser light
|
Product packaging
Certifications
Similar products
Company Profie
BESTECH Industrial Co., Ltd. is one of the professional enterprises in China in the field of machinery and tools. The main
products include Bench Lathes(manual &CNC),Drill Press, Bench Grinder, Drilling and Milling Machine, Table Saw, Band Saw,etc. Most
of the items have been approved by CE,GS& ROHS certificates.
Covering an area of 4000 square meters, our factory now has over 100 employees, including 15 QC engineers and technicians. We are
in Jiangsu Province,very near from Shanghai.We may arrange your visit to our factory at your wish onced informed.We are looking
forward to friends and new clients.
FAQ
1.Q:Where is your factory?Can we go to your factory and learn how to use the machine?
A:Our factory is loacted in yancheng,jiangsu Province.
We sincerely welcome you come to our factory.
2.Q:How to choose suitable machine model?
A:You can check the normal technical data in alibaba web.If you have some special OEM requirement,please send your details to our sales and have a discussion.
3.Q: Do you have CE certification?
A:yes, we have CE certification, machine quality is guaranteed.
4.Q: What is your payment terms?
A:Our payment term is L/C at sight,TT-30%deposit,70%balance aganist B/L copy.
5.Q:Can you accept OEM order?
A:Sure,we accept OEM with your logo print on the machine and package with your design.
6.Q: What is your delivery time?
A:Normally we need 30-35 days to prepare standard machine.If we have in stock, we can arrange shipment as soon as we receive the payment.
A:Our factory is loacted in yancheng,jiangsu Province.
We sincerely welcome you come to our factory.
2.Q:How to choose suitable machine model?
A:You can check the normal technical data in alibaba web.If you have some special OEM requirement,please send your details to our sales and have a discussion.
3.Q: Do you have CE certification?
A:yes, we have CE certification, machine quality is guaranteed.
4.Q: What is your payment terms?
A:Our payment term is L/C at sight,TT-30%deposit,70%balance aganist B/L copy.
5.Q:Can you accept OEM order?
A:Sure,we accept OEM with your logo print on the machine and package with your design.
6.Q: What is your delivery time?
A:Normally we need 30-35 days to prepare standard machine.If we have in stock, we can arrange shipment as soon as we receive the payment.
