Quick Details
-
item name:
-
gazebo tent
-
Certificate:
-
TUV,M2
-
Framework:
-
Aluminum Alloy6061/T6
-
Roof cover:
-
850g/sqm double PVC-coated polyester textile
-
Sidewalls:
-
soft PVC walls, glass wall, ABS hard wall,clear wall,etc
-
Wind resistance:
-
80-100KM/H
-
Ground situation:
-
grassland, earth land, asphalt ground, marble,etc
-
Fixing solution:
-
ground anchor, expandable bolt, weigh plate
-
Lifetime:
-
15-20years
Quick Details
-
Brand Name:
-
wt
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
WT-5
-
item name:
-
gazebo tent
-
Certificate:
-
TUV,M2
-
Framework:
-
Aluminum Alloy6061/T6
-
Roof cover:
-
850g/sqm double PVC-coated polyester textile
-
Sidewalls:
-
soft PVC walls, glass wall, ABS hard wall,clear wall,etc
-
Wind resistance:
-
80-100KM/H
-
Ground situation:
-
grassland, earth land, asphalt ground, marble,etc
-
Fixing solution:
-
ground anchor, expandable bolt, weigh plate
-
Lifetime:
-
15-20years

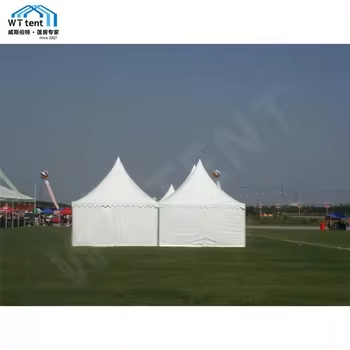

Roman style window Pagoda tent / foldable promotion gazebo tents
Pagoda Tent Series
- WT Pagoda Tent Series are adopted high strength argent oxidation Aluminum-Alloy (6061/T6) to produce the frame, It is antirust, light and easy for set-up.
- Roof Cover and Sidewall are made by the popular PVC fabric, frame retardant to DIN 75200, B1, M2. The seam of cover and sidewall is welded via high frequency welding technology. The seam is tight-sewed and free from water drops.
- WT’s Pagoda Tent can resist 80-100 Km/h wind. It has some advantages, such as small cubage, convenient to store, smartly to reset and easy for transportation, etc.
- WT can supply 3m , 4m, 5m, 6m, 7m, 8m and 10m square Pagoda Tent. And, we can also provide internal decorative accessories, such as lining, floor system, etc.
1)Application of gazebo tent:
High class hexagon tent for party (SS/HEX, Hexagon tent) can be widely used as the wedding tent, party
tent, exhibition tent, conference tent, different kinds of festivals tent, hajj tent, corporate events tent, sports
tent, & temporary, semi-permanent or permanent building purpose etc.
Specification of gazebo tent
|
Type |
Span (m) |
Side height (m) |
Ridge height (m) |
Peak Height (m) |
Bay Distance (m) |
Roof Pitch |
Longest Component (m) |
Wind Load (km/h) |
|
|
SS6/2.6HEX/ (HP) |
6 |
2.6 |
3.7 |
5.2 |
3 |
20° |
3.5 |
80 |
|
|
SS8/2.6HEX/ (HP) |
8 |
2.6 |
4.2 |
5.7 |
4 |
20° |
4.3 |
80 |
|
|
SS9/2.6HEX/ (HP) |
9 |
2.6 |
4.4 |
5.9 |
4.5 |
20° |
4.8 |
80 |
|
|
SS10/2.6HEX/ (HP) |
10 |
2.6 |
4.5 |
6.8 |
5 |
20° |
5.4 |
80 |
|
|
MS10/2.6HEX /(HP) |
10 |
3.3 |
5.2 |
7.5 |
5 |
20° |
|
80 |
|
|
MS12/2.6HEX/ (HP) |
12 |
3.3 |
5.5 |
9.2 |
6 |
20° |
|
80 |
|
|
Main frame Profile |
SS Series:100x48x3mm(4-Channel)/MS Series:152x120x4mm(4-Channel) |
||||||||
|
Eave Connection |
SS series: Hot-dip Galvanized Steel Insert / MS series:Hot-dip Galvanized Twin Steel Plate |
||||||||
|
Roof Fixing |
Bar Tension |
||||||||
|
Frame Material |
Hard Pressed Extruded Aluminum 6061/T6 |
||||||||
|
Cover Material |
Double PVC coated Polyester textile, flame retardant to DIN4102 B1,M2,750-900g/sq.m |
||||||||
2)Materials of gazebo tent:
2.1 pagoda tent Frame:
1.extruded 4-groove aluminium hollow profiles. All aluminium components technically anodized.
2.High strength Aluminium Alloy 6061/T6. aircraft grade and oxygenation on the surface.
3.All steel parts are well hot-dip galvanized.
4.Modular character for diverse combination and expansion. Trouble-free transport, storage and
maintenance.
5.All system components are standard stocked parts for fast availability.
2.2
pagoda tent
Fabric:
1.Textile covers made of polyester fabric, coated with PVC on both sides, weight approx. 850g/sqm.
2.Extremely durable and made of stable polyester material that is easy to clean and resistant to scratches.
3.Can be supplied with or without windows or can come with translucent or transparent sections.
4.Flame-retardant according to DIN 4102, fire class B1, M2.
2.3 pagoda tent Connections:
Hot-dip galvanized steel;
3)Life span of gazebo tent :
1.Life span of fabric(cover & sidewalls): 8-10years;
2.Life span of aluminum frame: 20-30years
4)Structure safety parameters:
1.Wind load: 100km/h (0.5kn/M2)
2.Snow load: 25kg/sq.m
5)Optional Accessories gazebo tent:
1. This hexagonal pagoda tent can decorate with roof lining and curtain, to make the tent more elegant and
beautiful.
2. This hexagonal pagoda tent can also equiped glass wall or ABS wall to make it a real building instead of
tent.
3. This hexagonal pagoda tent can also decorate with wooden floor on ground to make it more classic.
4. All accessories we manufacturer: wooden floor, glass door, glass wall, glass window, ABS hard wall, steel
sandwich wall, ground anchors, anchor puller, weight plate, sidewalls with PVC-clear window, rain gutters,
decoration ceilings and inside curtain, ramp, transport rack.
5.Professional Packing for gazebo tent
- Aluminum frame packed in membrane film
- Hardware packed in solid carton box
- PVC covers are packed in professional PVC carry bag
- Customized package
