Quick Details
-
Application:
-
fish farm pond liner, geomembrane pond liner
-
Design Style:
-
Modern
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
zhongloo
-
Model Number:
-
ZL-TGM
-
Product Name:
-
Geomembrane
-
Material:
-
HDPE LDPE LLDPE EPDM EVA
-
Color:
-
black green white blue
-
Thickness:
-
0.1mm-3.0mm
-
MOQ:
-
1000 Square Meter
-
Standard:
-
GB/ASTM GRI-GM13
-
Certification:
-
ISO9001/ISO14001/BV/SONCAP
-
Width:
-
1m~8m
-
Length:
-
50-200m
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects
-
Application:
-
fish farm pond liner, geomembrane pond liner
-
Design Style:
-
Modern
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
zhongloo
-
Model Number:
-
ZL-TGM
-
Product Name:
-
Geomembrane
-
Material:
-
HDPE LDPE LLDPE EPDM EVA
-
Color:
-
black green white blue
-
Thickness:
-
0.1mm-3.0mm
-
MOQ:
-
1000 Square Meter
-
Standard:
-
GB/ASTM GRI-GM13
-
Certification:
-
ISO9001/ISO14001/BV/SONCAP
-
Width:
-
1m~8m
-
Length:
-
50-200m
Products Description
HDPE Geomembrane 0.2mm Line Pond Circular Tanks HDPE PVC Geomembrane HDPE Pond Liner 3mm Water Tank For Aquaculture Pond Liner
Geomembrana HDPE 2 mm is the kind of black smooth geomembrane HDPE liner which is the ideal geotechnical material for water containment in aquaculture project. Geomembrana HDPE 2 mm is made by high density polyethylene with carbon black or other different colors with adding different color master batch, such as green, blue, transparent, etc. Geomembrana HDPE 2 mm features anti-seepage, excellent resistance to UV radiation and is suitable for exposed conditions which is widely used for solid waste containment, aquaculture mining and water containment applications.
Details Images
Products Advantage
1) Excellent environmental stress cracking resistance property.
2) Low temperature resistance, corrosion resistance, aging resistance.
3) For service temperature range: -60'℃ -+60°C.
3) For service temperature range: -60'℃ -+60°C.
4) Service valid term: 60 years at least.
5) Anti-crack, dimensional stability, anti-aging, smooth appearance, high friction coefficient.
Technical Index
HDPE Geomembrane Pond Liner Technical Parameter
|
Spec
Properties |
Test method
ASTM |
GMS0.5
|
GMS0.75
|
GMS1.0
|
GMS1.25
|
GMS1.5
|
GMS2.0
|
GMS2.5
|
|
Thickness
|
D5199
|
0.5mm
|
0.75mm
|
1.00mm
|
1.25mm
|
1.50mm
|
2.00mm
|
2.50mm
|
|
Density (≥ g/cc)
|
D1505
|
0.940
|
0.940
|
0.940
|
0.940
|
0.940
|
0.940
|
0.940
|
|
Tensile Properties
(Each direction) (≥) • yield strength • break strength • yield elongation • break elongation |
D 6693
Type IV |
8 kN/m 14kN/m 12% 700% |
11 kN/m 20kN/m 12% 700% |
15 kN/m 27 kN/m 12% 700% |
18 kN/m 33 kN/m 12% 700% |
22 kN/m 40 kN/m 12% 700% |
29 kN/m 53 kN/m 12% 700% |
37kN/m 67kN/m 12% 700% |
|
Tear Resistance (≥)
|
D 1004
|
64 N
|
93 N
|
125 N
|
156 N
|
187 N
|
249 N
|
311 N
|
|
Puncture Resistance (≥)
|
D 4833
|
160 N
|
240 N
|
320 N
|
400 N
|
480 N
|
640 N
|
800 N
|
|
Stress Crack Resistance (≥)
|
D 5397
|
500 hr.
|
500 hr.
|
500 hr.
|
500 hr.
|
500 hr.
|
500 hr.
|
500 hr.
|
|
Carbon Black Content
|
D 1603
|
2.0-3.0%
|
2.0-3.0%
|
2.0-3.0%
|
2.0-3.0%
|
2.0-3.0%
|
2.0-3.0%
|
2.0-3.0%
|
|
Carbon Black Dispersion
|
D 5596
|
Note(1)
|
Note(1)
|
Note(1)
|
Note(1)
|
Note(1)
|
Note(1)
|
Note(1)
|
|
Oxidative Induction Time (OIT) (≥)
(a)Standard OIT - or - (b)High Pressure OIT |
D 3895 D 5885 |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |

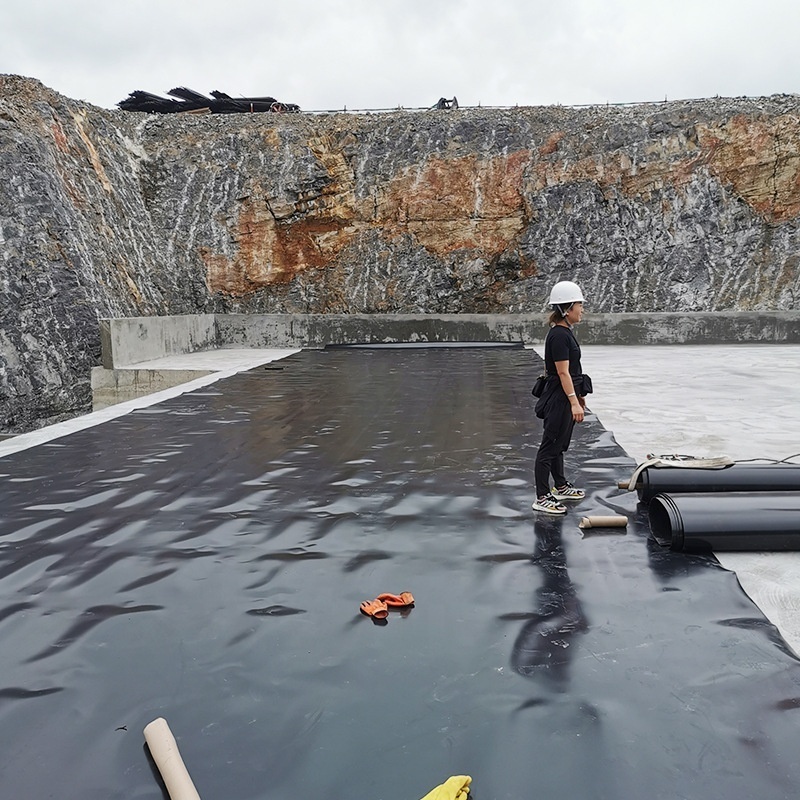

Geomembrane Application
1) Municipal environmental projects, water conservancy projects.
2) Landfill cap, mining heap leach pads.
3) Pond liner, canal linings, tank linings, raw water treatment reservoirs, retention ponds.
4) Waste water treatment lagoon, secondary containment.
Company & Workshop
FAQ
Q：Can you send samples?
A：Yes，we are very happy to provide you with free samples to check the quality of our products.
Q：Are you a manufacturer or a trading company?
A：Our company is located in Hefei, Anhui Province, which is a professional manufacturer of geomembrane, geotextile, geogrid and other products. So we have the competitive price with best quality.
Q：Can you produce the product according to customers' requirements?
A: Sure，we are professional manufacturer，OEM and ODM are both welcome.
Q：How long is the delivery time?
A: General within 3-7days after received the deposit
Q: How to control product quality?
A: Our factory adopts lean management，products from the beginning to the end of the production process have strict quality control.All products must be strictly tested before packing and shipping
