Quick Details
-
Brand Name:
-
Juxin
-
Dimension(L*W*H):
-
3350*2100*2800
-
Weight:
-
26.8t
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service
-
Machine:
-
High quality composite stone fine crusher
-
Color:
-
Yellow, red, blue and others
-
Housing:
-
Q235
-
Hammer head:
-
ZGMn13
-
Rotor diameter:
-
1560mm
-
Max feeding size:
-
100mm
-
Rotor and liners:
-
Resistant materials
-
Discarge size:
-
0-5mm
-
Certification:
-
ISO9001:2008
Quick Details
-
Application:
-
sand making plant
-
Capacity(t/h):
-
30-100t/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Juxin
-
Dimension(L*W*H):
-
3350*2100*2800
-
Weight:
-
26.8t
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service
-
Machine:
-
High quality composite stone fine crusher
-
Color:
-
Yellow, red, blue and others
-
Housing:
-
Q235
-
Hammer head:
-
ZGMn13
-
Rotor diameter:
-
1560mm
-
Max feeding size:
-
100mm
-
Rotor and liners:
-
Resistant materials
-
Discarge size:
-
0-5mm
-
Certification:
-
ISO9001:2008
Welcome to
Xingyang Juxin Machinery Co.,Ltd.

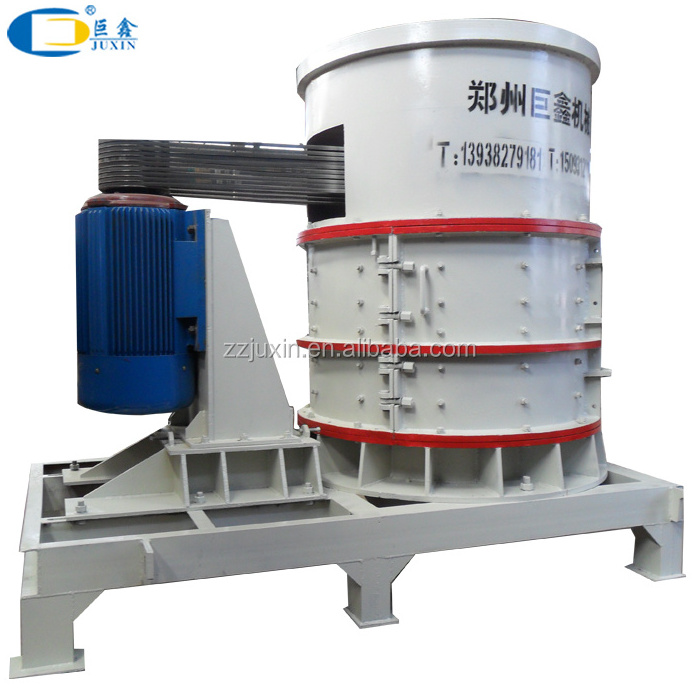

Product Photo
Product Description
|
Model |
Rotor Diameter
(mm) |
Cylinder Height
(mm) |
Speed
(r/min) |
Max Feeding Size
(mm) |
Discharge Size
(mm) |
Capacity
(t/h) |
Power
(kw) |
Dimension
(mm) |
Weight
(t) |
| 800 | 650 | 800 | 1350 | 50 | ≤5 | 5-15 | 30 | 2200*860*1980 | 2.3 |
| 1000 | 800 | 850 | 970 | 70 | ≤5 | 8-80 | 55 | 2700*1160*2000 | 5.8 |
| 1250 | 1000 | 850 | 740 | 100 | ≤5 | 15-60 | 90 | 2800*1400*2730 | 9.7 |
| 1500 | 1250 | 1000 | 650 | 100 | ≤5 | 20-80 | 110 | 3100*1900*2300 | 18.1 |
| 1750 | 1560 | 1410 | 600 | 100 | ≤5 | 30-100 | 132 | 3350*2100*2800 | 26.61 |
|
The capacity refers to limestone, professing capacity may vary with different materials and feeding sizes.
|
|||||||||
