Quick Details
-
Controller Type:
-
MPPT
-
Mounting Type:
-
ground mounting or roof mounting is optional
-
Certificate:
-
CE
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HOPESUN
-
Model Number:
-
on grid solar system
-
Output Voltage (V):
-
AC110V/220V/380-450V Three phase
-
Output Frequency:
-
50Hz/60Hz
-
Work Time (h):
-
12
-
Specification:
-
Normal
-
output wave:
-
pure sine wave solar system
-
Max. output current:
-
17A
Quick Details
-
Application:
-
Home
-
Solar Panel Type:
-
Polycrystalline Silicon
-
Battery Type:
-
without
-
Controller Type:
-
MPPT
-
Mounting Type:
-
ground mounting or roof mounting is optional
-
Certificate:
-
CE
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HOPESUN
-
Model Number:
-
on grid solar system
-
Output Voltage (V):
-
AC110V/220V/380-450V Three phase
-
Output Frequency:
-
50Hz/60Hz
-
Work Time (h):
-
12
-
Specification:
-
Normal
-
output wave:
-
pure sine wave solar system
-
Max. output current:
-
17A
10 kW on grid solar system solar generator for residential and commercial using
On Grid Solar System
Grid-tied, on-grid, utility-interactive, grid intertie and grid backfeeding are all terms used to describe the same concept – a solar system that is connected to the utility power grid. A grid-tied solar system generates energy from the sun and stores it in the utility grid. If you have access to the utility grid, and your main concern is getting the most value from your investment, grid-tied solar is the way to go. It has the lowest upfront cost because you don’t have to buy batteries to store the power you generate. The grid takes care of storage for you.
Advantage of on grid solar system:
- Save more money with net metering
- The utility grid is a virtual battery
Optional:
A. Supply for home equipment at day first , then sell extra power to grid .
B. Sell all power to grid only .
Working diagram:

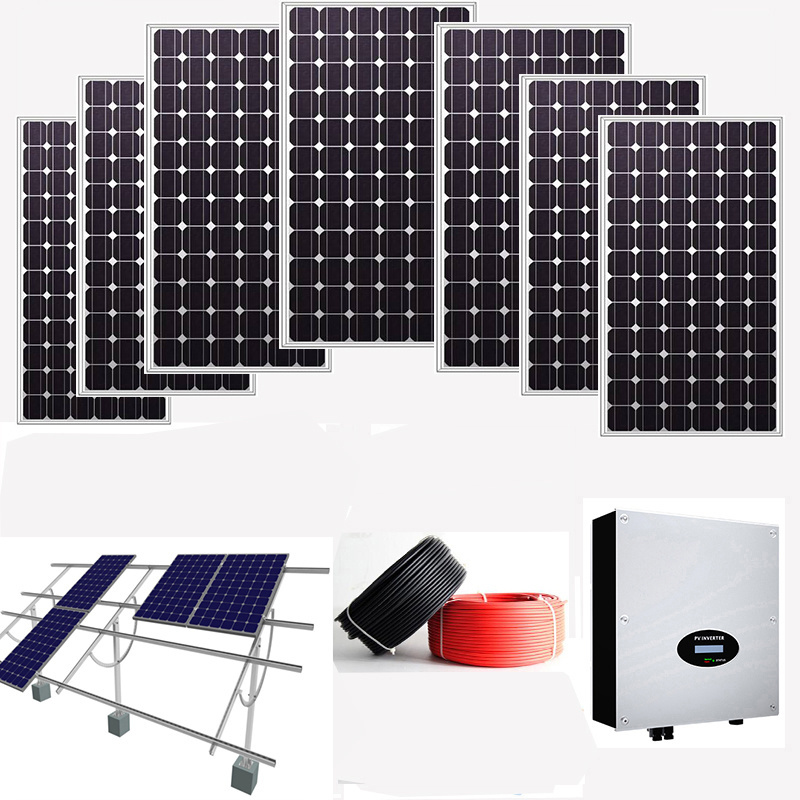

10KW on grid solar system including:
| Item | Model | Description | Quantity |
| 1 | Solar panel |
Poly 260W solar panel Mono 280W solar panel (Optional) |
40PCS |
| 2 | On grid inverter | 10kW on grid solar inverter | 1PCS |
| 3 | Solar bracket | Flat ground or roof for optional: one set can mount 4pcs panels (Optional) | 10SETS |
| 4 | Solar cables | 4MM2 solar cables | 100M |
| 5 | Solar connector | MC4 solar connector, rated voltage:1000V | 2SETS |
Technical Parameters:
|
Solar Panels
-
High efficiency A Grade poly cells
- Anodic aluminium-alloy frame
|
|
On grid inverter
- 10kW On Grid Inverter, LCD display
- Max. DC power: 11.5kW
- Max. input current per MPPT tracker: 13A - Max. output current: 17A - WIFI monitor
|
|
|
Mounting structure
- Pitched roof, flat roof, tile roof, tin roof, ground, vertical wall - high class anodized aluminium
- Wind Load: up to 130mph (60m/s)
|
|
Connection cable
- Solar panel cables 4mm2
- Combine box |
|
Connector
- MC4 Solar connector - Battery cable connector |
FAQ
1. Q: Are you a factory?
A: Yes, welcome to visit our factory.
2. Q: Which size of solar system do you produce?
A: We can produce different sizes from 100w to 100kw, both on grid and off grid, and
can match system
according to your request or the power that you need .
3. Q: How long is the lead time of orders?
A: Goods can be ready for shipment within 7-15 working days upon payment.
4. Q: Can I install it myself?
A: We provide installation drawing and user manual to guide the installation. If necessary,
we will send our
engineer to your country for installation.
5. Q: How to calculate the freight?
A: We will calculate according to the specific location and transportation method, you can discuss it in detail
with us.
