Quick Details
-
Brand Name:
-
ATS/OEM, ATS/OEM
-
Model Number:
-
ATS0568
-
Warranty:
-
1 Years
-
Color:
-
red,blue or customized
-
GROSS WEIGHT:
-
570kg
-
Rim diameter:
-
14" - 26"
-
Max. wheel width:
-
780mm
-
BEAD BREAKER FORCE:
-
2500kg
-
Max. wheel diameter:
-
1600mm
-
Packing size:
-
203x160x100cm
Quick Details
-
Motor Power:
-
3.3KW 380V - 3PH - 50HZ, 3.3KW 380V - 3PH - 50HZ
-
Power Supply:
-
110V/220V/380V, 110V/220V/380V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ATS/OEM, ATS/OEM
-
Model Number:
-
ATS0568
-
Warranty:
-
1 Years
-
Color:
-
red,blue or customized
-
GROSS WEIGHT:
-
570kg
-
Rim diameter:
-
14" - 26"
-
Max. wheel width:
-
780mm
-
BEAD BREAKER FORCE:
-
2500kg
-
Max. wheel diameter:
-
1600mm
-
Packing size:
-
203x160x100cm
Product Description
TECHNICAL DATA
| Rim Diamter | 14" - 26" |
| Max.wheel weight | 500kg |
| Max Wheel Width | 780mm |
| Max Tyre Diameter | 1600mm |
| Hydraulic Pump Motor | 1.5KW 380V - 3PH(220V Optional ) |
| Gearbox Motor | 2.2KW 380V - 3PH(220V Optional) |
| Bead Breaker Force | 2500kg |
| Max.Torque | 6457N.m |
| Operation Control Voltage | 24V |
| Machine Weight Approx | 517kg |
| Overall Dimensions Approx | 2500×2000mm |
| Power | 220/400V 50/60HZ 1P/3P Optional |
PRODUCTS INTRODUCTION

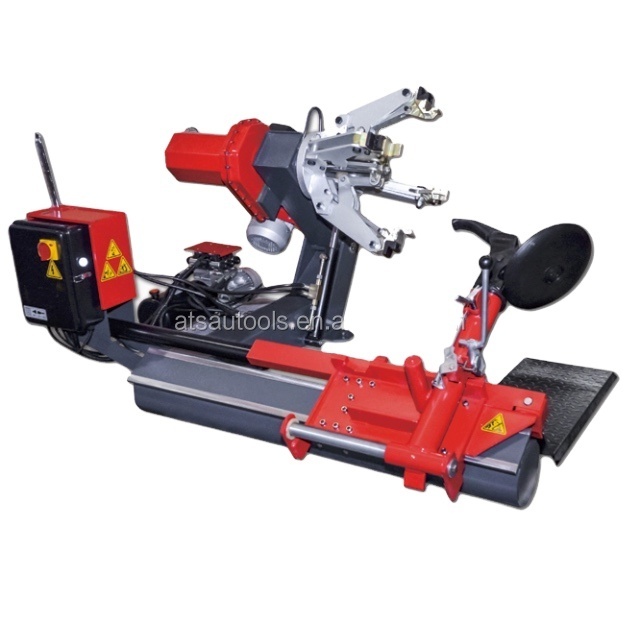

· Semi-Auyomatic truck tyre changer t568 universal
· S
elf-Centering chuck rim capacity 14"-26"
· Clochwise and anticlockwise rotation of chuck
· Italian pump optional
