Quick Details
-
Brand Name:
-
Advance
-
Reduction ratio(PTO):
-
Host side: 2.96:1-6:1; Generator side: 1:1-1:4
-
Configured power(PTO):
-
Mainframe:662-4400; Generator:150-600
-
Reduction ratio(PTI):
-
Host side: 3.56:1-8.23:1; Motor side: 3.3:1-9.73:1
-
Configured power(PTI):
-
Mainframe:596-1342; Motor: 110-300
-
Product model:
-

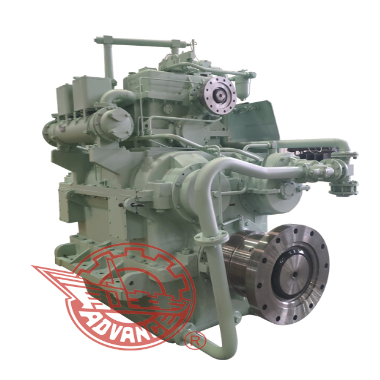

Advance Marine Gearbox with PTO/PTI
Quick Details
-
Applicable Industries:
-
Shipyard, Shipbuilding
-
Weight (KG):
-
1500
-
Place of Origin:
-
China
-
Brand Name:
-
Advance
-
Reduction ratio(PTO):
-
Host side: 2.96:1-6:1; Generator side: 1:1-1:4
-
Configured power(PTO):
-
Mainframe:662-4400; Generator:150-600
-
Reduction ratio(PTI):
-
Host side: 3.56:1-8.23:1; Motor side: 3.3:1-9.73:1
-
Configured power(PTI):
-
Mainframe:596-1342; Motor: 110-300
-
Product model:
-
Advance Marine Gearbox with PTO/PTI
Product Description
Gear box with PTO/PTI transmission structure or device, "one box for multiple purposes", energy saving, space saving, and can meet the needs of different working conditions.
PTO (Power Take-off) auxiliary power output, driving cargo oil pump, hydraulic pump, shaft generator, etc. PTI (Power Take-in) auxiliary power input, the motor is connected to the marine gearbox in the PTI way, and the main engine and the motor drive the propeller in a separate or combined way. The working conditions are divided into: the main engine is driven alone, the motor is driven alone, and the main engine + motor is driven by combined force. When the motor is driven alone, PTH (Plesse Take me Home) is realized; the main engine + motor combined force drive is the Boost boost mode. Gearboxes with PTO are suitable for all kinds of ships; gearboxes with PTI are mainly used in fishing boats, official ships, river cargo ships and other ships.
Specification
|
PTO case
|
|
|
|
|
||||
|
Product number
|
Configured power ( kW )
|
Reduction ratio ( i )
|
Remark
|
|
||||
|
HCT2700
|
Mainframe, 1324
|
Host side, 6.27:1
|
|
|
||||
|
|
Generator, 150
|
Generator side, 1:2.1
|
|
|
||||
|
GWS39.41A
|
Host, 662
|
Host side, 2.96:1
|
The power of the generator is equivalent to that of the main engine
|
|
||||
|
|
Generator, 600
|
Generator side, 1:1
|
|
|
||||
|
GCS490
|
Mainframe, 1470
|
Host side, 3.57:1
|
Matching with our company's adjustable propeller
|
|
||||
|
|
Generator, 600
|
Generator side, 1:2
|
|
|
||||
|
GWC66.75+PT330
|
Mainframe, 3300
|
Host side, 4.45:1
|
Secondary PTO
|
|
||||
|
|
Generator, 250
|
Generator end, 1:2.86
|
|
|
||||
|
GWC75.90+PT250
|
Mainframe, 4400
|
Host side, 6:1
|
Secondary PTO
|
|
||||
|
|
Generator, 200
|
Generator end, 1:4
|
|
|
||||
|
GWC78.88A
|
Host, 4045
|
Host side, 6:1
|
|
|
||||
|
|
Generator, 400
|
Generator side, 1:2
|
|
|
||||
|
PTI case
|
|
|
|
|
||||
|
Product number
|
Configured power ( kW )
|
Reduction ratio ( i )
|
Remark
|
|
||||
|
HC200P
|
Host ≤ 0.147kW/r
|
Host side, 3.56:1
|
|
|
||||
|
|
Motor ≤ 0.022kW/r
|
Motor side, 3.3:1
|
|
|
||||
|
HCD450P
|
Mainframe, 596
|
Host side, 6.2:1
|
|
|
||||
|
|
Motor, 120
|
Motor end, 9.73:1
|
|
|
||||
|
HCT601P
|
Mainframe, 671
|
Host side, 8.23:1
|
Gearbox with PTO\PTI function
|
|
||||
|
|
Motor, 200
|
Motor end, 9.73:1
|
|
|
||||
|
HC1200/1P
|
Mainframe, 735
|
Host side, 3.7:1
|
|
|
||||
|
|
Motor, 300
|
Motor end, 8.89:1
|
|
|
||||
|
GWC36.39P
|
Mainframe, 1342
|
Host side, 3.7:1
|
|
|
||||
|
|
Motor, 110
|
Motor side, 4.27:1
|
|
|
||||
You have the chance to have free technical solutions if you contact us by email or online service ! What are you waiting for! Act now!
Packing & Delivery
As customers requirements.
