Quick Details
-
Model Number:
-
PT100
-
Product name:
-
K/J/PT100 type Flexible Thermocouple Sensor Probe
-
Certification:
-
ISO ROHS CE
-
Theory:
-
Temperature Sensor
-
Temperature range:
-
-50-450C
-
Probe diameter:
-
1mm-24mm
-
Probe material:
-
SS304,316L,310S,Inconel 600/800,Ceramic
-
Connection:
-
No fixing device
-
Compensating cable:
-
3 wires
-
Accuracy class:
-
A
-
Protection grade:
-
IP65
Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YuLing
-
Model Number:
-
PT100
-
Product name:
-
K/J/PT100 type Flexible Thermocouple Sensor Probe
-
Certification:
-
ISO ROHS CE
-
Theory:
-
Temperature Sensor
-
Temperature range:
-
-50-450C
-
Probe diameter:
-
1mm-24mm
-
Probe material:
-
SS304,316L,310S,Inconel 600/800,Ceramic
-
Connection:
-
No fixing device
-
Compensating cable:
-
3 wires
-
Accuracy class:
-
A
-
Protection grade:
-
IP65
Product Description

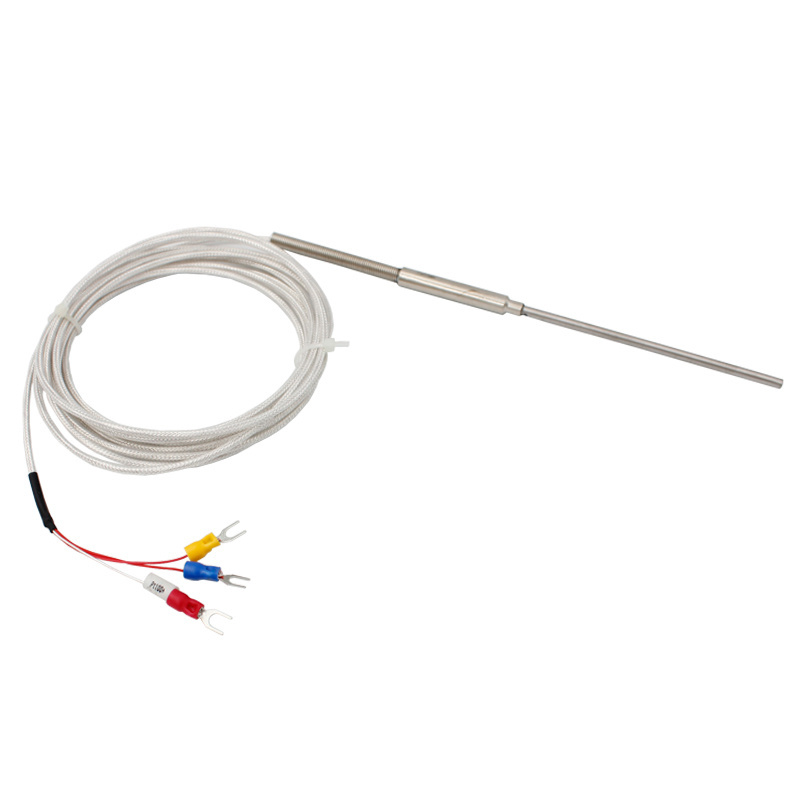

K/J/PT100 type Flexible Thermocouple Sensor Probe with Insulated High Temperature Lead Wire
Thermal resistance, high sensitivity, strong stability, interchangeability and accuracy are relatively good, but need power excitation, can not measure the temperature change instantaneously. Industrial thermal resistance is generally Pt100, Pt10, Cu50, Cu100, platinum thermal resistance temperature measurement range is generally -200 ~ 800℃, often used in power, chemical industry, injection molding, packaging, food, incubator, oven temperature measurement.
PT100 RTD sensor advantage:
①Less thermal response time, reduce the dynamic error;
②Small diameter, length is not restricted;
③High measuring accuracy;
④Imported film resistance element;
①Less thermal response time, reduce the dynamic error;
②Small diameter, length is not restricted;
③High measuring accuracy;
④Imported film resistance element;
⑤Performance stable and reliable.
Specification
|
Product name
|
PT100 Probe Thermocouple
|
|
Type
|
PT100-type
|
|
Product mode
|
WZPK-191
|
|
Probe diameter
|
3/4/5mm
|
|
Probe length
|
Customized according to customer requirements
|
|
Lead length
|
1m/2m/3m/4m/5m(there is tolerance, if care, please do not make order.)
|
|
Wire material
|
Polytafluoro-silver-plated leads
|
|
Temperature measurement range
|
-200-450C
|
|
Custom
|
Yes, can custom probe diameter. length, cable length.
|
|
Package contents
|
1 × sensor
|
Reminder
: The larger the probe diameter, the better the temperature resistance effect.
Buyers are requested to provide the actual measurement range as much as possible so that we can adapt to the appropriate diameter
and material.
New 304SUS high density braided sheath
High corrosion resistance and wear resistance, use long life and durability.
Stainless steel probe
Choose national standard 304 stainless steel raw material.
Be anti-interference
Teflon high temperature silver plating shield tetrafluoro material, with anti-interference ability.
|
Type
|
Graduation
|
Temperature Range(°C）
|
Short-term Temperature Measurement(°C）
|
|
WRNK-191
|
K
|
0-900°C
|
0-1000°C
|
|
WREK-191
|
E
|
0-600°C
|
0-700°C
|
|
WRCK-191
|
T
|
0-200°C
|
0-400°C
|
|
WRFK-191
|
J
|
0-450°C
|
0-600°C
|
|
WRMK-191
|
N
|
0-1100°C
|
0-1200°C
|
|
WRPK-191
|
S
|
0-1250°C
|
0-1400°C
|
|
WZPK-191
|
PT100
|
-20-420°C
|
0-600°C
|
|
The thermal response time shall not exceed that specified in the following table :(s)
|
|
|
||
|
Diameter(mm)
|
Thermocouple
|
|
||
|
|
Ungrounded
|
Grounded
|
||
|
2.0
|
0.5
|
0.4
|
||
|
3.0
|
1.2
|
0.6
|
||
|
4.0
|
2.5
|
0.8
|
||
|
5.0
|
4.5
|
1.2
|
||
|
6.0
|
6.0
|
2.0
|
||
|
8.0
|
8.0
|
4.0
|
||
