JinKo energy has the capacity of vertical integration. By December 31, 2019, the capacity of monocrystalline silicon chip reached
about 11.5 GW, the capacity of battery chip reached about 10.6 GW, and the capacity of components reached about 16 GW.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Jinko
-
Model Number:
-

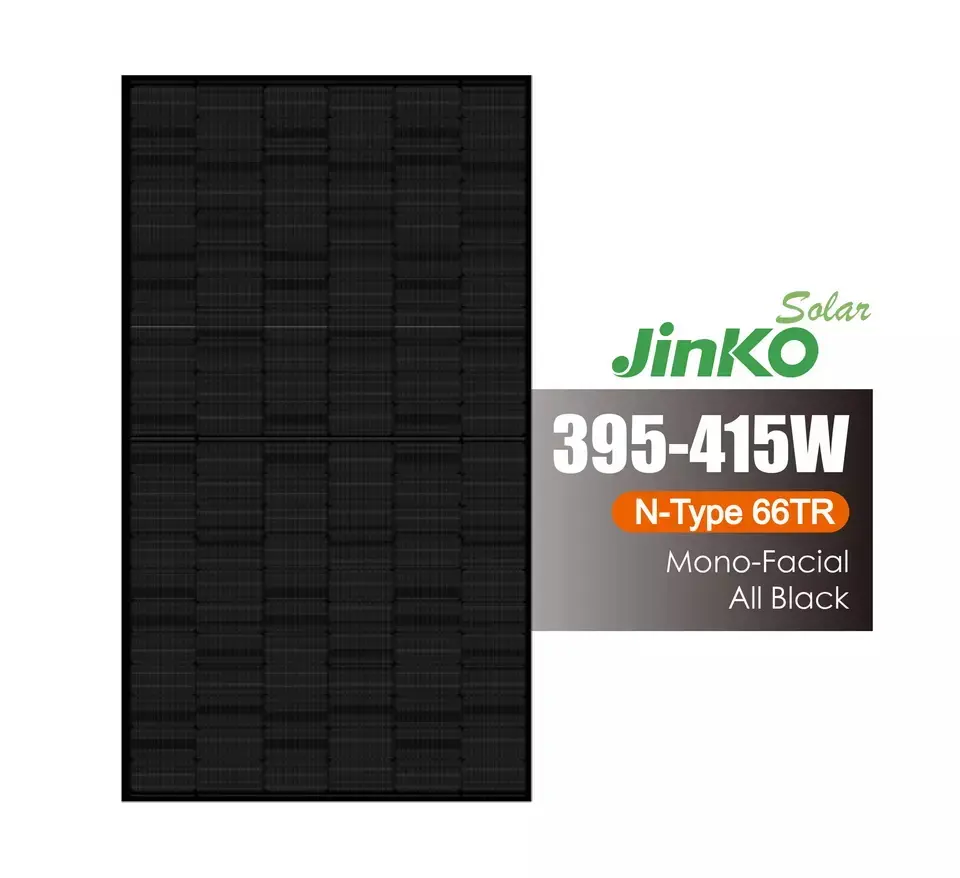

Tiger N-Type 66TR 395-415 Watt
-
Certificate:
-
TUV/CE/IEC/ISO
-
Warranty:
-
25 Years
-
No. of cells:
-
132cells
-
Module Dimensions:
-
1855*1029*30mm (73.03*40.51*1.18 inch)
-
Cell Type:
-
N type Mono-crystalline
-
Weight:
-
20.8kg (45.86 lbs)
-
Frame:
-
Anodized Aluminium Alloy
-
Junction Box:
-
IP68 Rated
-
Output Cables:
-
TUV 1*4.0mm2 (+): 290mm , (-): 145mm or Customized Length
-
Operating Temperature:
-
-40~+85
-
Power Tolerance:
-
0~+3%
Quick Details
-
Type:
-
PERC, N-TYPE, Half Cell, All Black
-
Cell Efficiency:
-
20.69%-21.74%
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Jinko
-
Model Number:
-
Tiger N-Type 66TR 395-415 Watt
-
Certificate:
-
TUV/CE/IEC/ISO
-
Warranty:
-
25 Years
-
No. of cells:
-
132cells
-
Module Dimensions:
-
1855*1029*30mm (73.03*40.51*1.18 inch)
-
Cell Type:
-
N type Mono-crystalline
-
Weight:
-
20.8kg (45.86 lbs)
-
Frame:
-
Anodized Aluminium Alloy
-
Junction Box:
-
IP68 Rated
-
Output Cables:
-
TUV 1*4.0mm2 (+): 290mm , (-): 145mm or Customized Length
-
Operating Temperature:
-
-40~+85
-
Power Tolerance:
-
0~+3%
Products Description
Detailed Parameters
|
Module Type
|
JKM395N-6RL3-B
|
JKM400N-6RL3-B
|
JKM405N-6RL3-B
|
JKM410N-6RL3-B
|
JKM415N-6RL3-B
|
||||
|
|
STC NOCT
|
STC NOCT
|
STC NOCT
|
STC NOCT
|
STC NOCT
|
||||
|
Maximum Power (Pmax)
|
395Wp 295Wp
|
400Wp 298Wp
|
405Wp 302Wp
|
410Wp 306Wp
|
415Wp 309Wp
|
||||
|
Maximum Power Voltage (Vmp)
|
37.91V 35.19V
|
38.10V 35.38V
|
38.28V 35.57V
|
38.46V 35.71V
|
38.64V 35.85V
|
||||
|
Maximum Power Current (Imp)
|
10.42A 8.37A
|
10.50A 8.43A
|
10.58A 8.49A
|
10.66A 8.56A
|
10.74A 8.63A
|
||||
|
Open-circuit Voltage (Voc)
|
46.22A 43.63V
|
46.41 43.80V
|
46.59V 43.97V
|
45.77V 44.14V
|
46.95V 44.31V
|
||||
|
Short-circuit Current (Isc)
|
11.00A 8.88A
|
11.08A 8.95A
|
11.16A 9.01A
|
11.24A 9.08A
|
11.32A 9.14A
|
||||
|
Module Efficiency STC (%)
|
20.69%
|
20.96%
|
21.22%
|
21.48%
|
21.74%
|
||||
|
Operating Temperature(ȭ)
|
-40℃~+85℃
|
|
-40℃~+85℃
|
|
|
||||
|
Maximum System Voltage
|
1000VDC (IEC)
|
|
1000VDC (IEC)
|
|
|
||||
|
Maximum Series Fuse Rating
|
20A
|
|
20A
|
|
|
||||
|
Power Tolerance
|
0~+3%
|
|
0~+3%
|
|
|
||||
|
Temperature Coefficients of Pmax
|
-0.34%/℃
|
|
-0.34%/℃
|
|
|
||||
|
Temperature Coefficients of Voc
|
-0.28%/℃
|
|
-0.28%/℃
|
|
|
||||
|
Temperature Coefficients of Isc
|
0.048%/℃
|
|
0.048%/℃
|
|
|
||||
|
Nominal Operating Cell Temperature (NOCT)
|
45±2℃
|
|
45±2℃
|
|
|
||||
