Quick Details
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
filter mesh screen
-
Brand Name:
-
Xingxin
-
Product name:
-

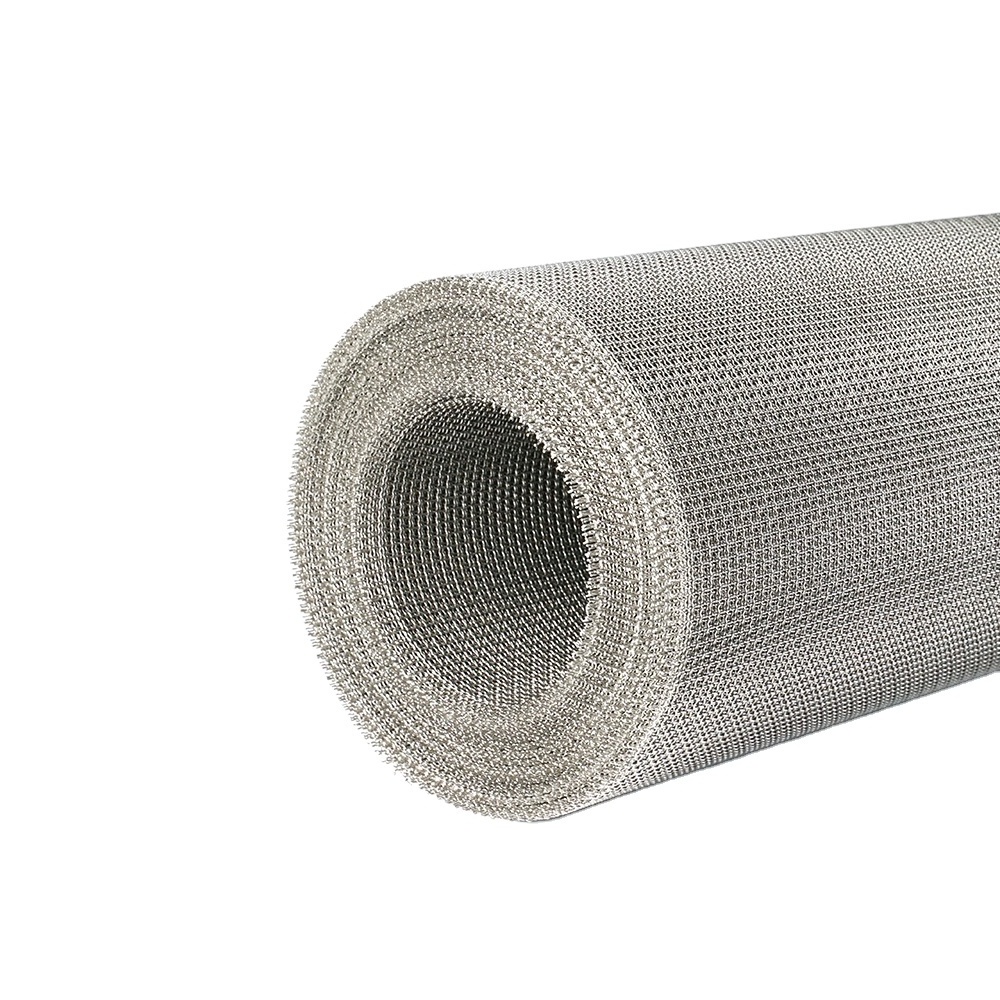

SS 304 316 20 mesh stainless steel woven wire mesh filter screen net
-
Feature:
-
heat resistance,corrosion resistance ,wear resistance
-
Mesh count:
-
20 Mesh
-
Max Width:
-
2.5m,customized available
-
length:
-
30 m in normal
-
hole shape:
-
square
-
weave type:
-
plain weave
-
Factory experience:
-
more than 30 years since 1989
Quick Details
-
Material:
-
STAINLESS STEEL WIRE
-
Type:
-
Wire Cloth
-
Application:
-
Filters
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
filter mesh screen
-
Brand Name:
-
Xingxin
-
Product name:
-
SS 304 316 20 mesh stainless steel woven wire mesh filter screen net
-
Feature:
-
heat resistance,corrosion resistance ,wear resistance
-
Mesh count:
-
20 Mesh
-
Max Width:
-
2.5m,customized available
-
length:
-
30 m in normal
-
hole shape:
-
square
-
weave type:
-
plain weave
-
Factory experience:
-
more than 30 years since 1989
SS 304 316 20 mesh stainless steel woven wire mesh filter screen net
Products Description
|
Material:SS 201,202,304,316,316L,310S,430,904L,2205,2207
|
|
|
|
|
||||
|
Type
|
Mesh/Inch
|
Wire diameter
(Inch) |
Absolute Filtration
Fineness μm |
Weight(LB) /
100 Square Foot |
||||
|
Plain,Twill Weave Wire Mesh
|
1X1-635X635
|
0.0008''-0.08''
|
25-84.6
|
2.53-41.1
|
||||
|
Type
|
Mesh/Inch
|
Wire diameter
(Inch) |
Absolute Filtration
Fineness μm |
Nominal Filtration
Fineness μm |
||||
|
Plain Dutch Weave
Wire Mesh |
8X85-80X400
|
0.014''X0.126''
0.0049''X0.0028'' |
318-340 to 43-48
|
250-250 to 3540
|
||||
|
Twill Dutch Weave Wire Mesh
|
20X250-500X3200
|
0.0098''X0.0079''
0.0015''X0.0010'' |
110-120 to 8-9
|
98-105 to 2-3
|
||||
Product packaging
packing can be customized as your request.
Thick paper tube inside to reduce the pressure
plastic film and waterproof paper double protection from moisture
COA atick up +5MM thickness paper cylinder
bubble film cover to avoid damage
fumigated wooden box
packing
Why Choose Us
challenge the best quality
Accurate level
precision wire diameter(within 2%) and mesh count(within 2%) hole size(within 10%)
For 1 roll will check 3 places
Flatted and clean
Mesh roll will be flatted and clean.No color difference,no curl,no blemishes
Flatted and clean
The wrap wire and weft wire is prependicular within 0.25°.
For 1 roll will check 3 places
Reed Japan
Reed imported from Japan,that make the hole size more uniform
Inspection process
Wire inspection
Product inspection
Strictly inspection process:Material(XRF gun),wire diameter,hole size,mesh count,Tensile strength,width,length,squareness and surface.
length inspection
Width inspection
Wire diameter inspection
Material inspection
Hole size inspection
Mesh count inspection
Production process
raw material testing
weaving
pull the net
washing the net
material inspection
application
