Quick Details
-
Model Number:
-
G1 plus
Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
South
-
Model Number:
-
G1 plus
Specification
|

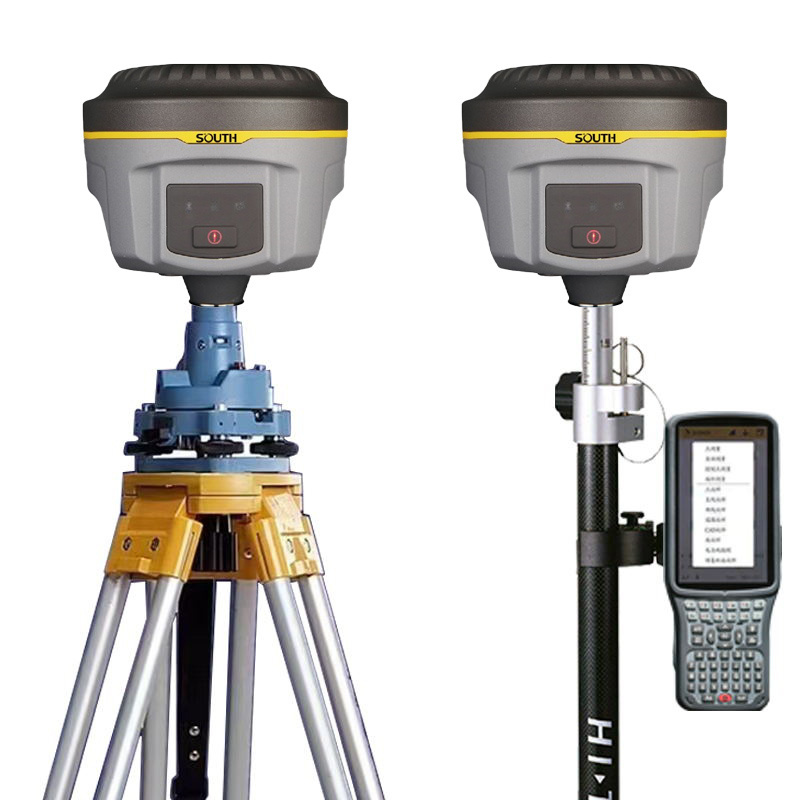

SOUTH Galaxy G1
|
|
|
|
Surveying Performance
|
|
|
|
Channel
|
965 Channels
|
|
|
Signal Tracking
|
BDS B1, B2, B3,
|
|
|
|
GPS L1C/A, L1C, L2C, L2E, L5
|
|
|
|
GLONASS L1C/A, L1P, L2C/A,L2P, L3
|
|
|
|
SBAS L1C/A, L5( Just for the satellites supporting L5 )
|
|
|
|
Galileo GIOVE-A, GIOVE-B, E1, E5A, E5B
|
|
|
|
QZSS,WAAS, MSAS, EGNOS, GAGAN, SBAS
|
|
|
GNSS Feature
|
Positioning output rate: 1HZ~50HZ
|
|
|
|
Initialization time : <10s
|
|
|
|
Initialization reliability : >99.99%
|
|
|
Positioning Precision
|
|
|
|
Code Differential GNSS Positioning
|
Horizontal: 0.25 m + 1 ppm
|
|
|
|
Vertical: 0.50 m + 1 ppm
|
|
|
|
SBAS positioning accuracy: typically<5m 3DRMS
|
|
|
Static GNSS Surveying
|
Horizontal: 2.5 mm + 0.5 ppm
|
|
|
|
Vertical: 5 mm + 0.5 ppm
|
|
|
Real-Time Kinematic Surveying (Baseline<30km)
|
Horizontal: 8 mm + 1 ppm
|
|
|
|
Vertical: 15 mm + 1 ppm
|
|
|
|
Horizontal: 8 mm + 0.5 ppm
|
|
|
|
Vertical: 15 mm + 0.5 ppm
|
|
|
Network RTK
|
RTK initialization time: 2~8s
|
|
|
Physical
|
|
|
|
Dimension
|
12.9cm × 11.2cm
|
|
|
Weigh
|
970g(includiing installed battery)
|
|
|
Material
|
Magnesium aluminum alloy shell
|
|
|
Environmental
|
|
|
|
Operating
|
-45℃~+60℃
|
|
|
Storage
|
-55℃~+85℃
|
|
|
Humidity
|
Non-condensing
|
|
|
Waterproof/Dustproof
|
IP67 standard,protected from long time immersion to depth of 1m
|
|
|
|
IP67 standard,fully protected against blowing dust
|
|
|
Shock and Vibration
|
Not operating: Withstand 2 meters pole drop onto the cement ground naturally
|
|
|
|
operating : Withstand 40G 10milliseconds sawtooth wave impact test
|
|
|
Electrical
|
|
|
|
Power consumption
|
2W
|
|
|
Battery
|
Rechargeable, removable Litium-ion battery
|
|
|
Battery Life
|
Single battery: 7h( static mode ) 5h( interual UHF base mode )
6h( rover mode ) |
|
|
Communications and Data storage
|
|
|
|
I/O Port
|
5PIN LEOM external power port + RS232
|
|
|
|
7PIN LEOM RS232 + USB
|
|
|
|
1 network/radio data link antenna port
|
|
|
|
SIM card slot
|
|
|
Wireless Modem
|
Integrated internal radio receiver and transmitter 0.5W/2W
|
|
|
|
External radio transmitter 5W/25W
|
|
|
Working frequency
|
410-470MHz
|
|
|
Communication protocol
|
TrimTalk450s, TrimMark3, PCC EOT, SOUTH
|
|
|
Cellular Mobile Network
|
WCDMA3.5G network communication module, GPRS/EDGE compatible, CDMA2000/EVDO
|
|
|
|
3G optional
|
|
|
Double Module Bluetooth
|
BLEBluetooth 4.0 standard, support for android, ios cellphoon connection
|
|
|
|
Bluetooth + EDR standard
|
|
|
NFC communication
|
Realizing close range ( shorter than 10cm ) automatic pair between Galxy G1 and controller
(controller equipped NFC wireless communication module needed) |
|
|
Data storage/Transmission
|
4GB internal storage, more than 3 year raw observation data (1.4M/day) base on recording from 14 satelites Plug and play more of
USB data transmission |
|
|
Data Format
|
Differential data format: CMR+, CMRx, RTCM2.1, RTCM2.3, RTCM3.0, RTCM3.1, RTCM3.2
|
|
|
|
GPS output data format: NMEA0813, PJK plan, cordinates binary code
|
|
|
|
Network model support: various, FKP, MAC, supporting NTRIP protocol
|
|
|
Intertial Sensing System
|
|
|
|
Tilt survey
|
Built-in tilt compensator, correcting coordinates automaticlly according to the tilt direction and angle of the centering rod
|
|
|
Electornic Bubble
|
Conteroller software display electronic bubble, checking leveling status of the centering rod real time
|
|
|
User Interaction
|
|
|
|
Buttons
|
One-button operation, Visual operation, convenient and efficient
|
|
Product Description
FAQ
Q1.What kind payment method we accept?
A1.T/T, Western Union, Trade Assurance on Alibaba, Moneygram .
Q2.How can you guarantee payment safety ?
A2.Our company supports TRADE ASSURANCE service. If you will choose payment through ALIBABA TRADE ASSURANCE
service, you payment will be guaranteed. Because we are not able to receive payment until you confirm goods receipt.
Q3.What kinds of shipment for goods and how long time it takes ?
A3.Our company supports DHL, FEDEX, UPS, TNT, CHINA POST, by sea,by air and other methods. Shipping time is 3-5 days after the paments are received.
Q4.Does your company ship battery or not ?
A4.Our company can receive battery order and ship to customer normally, except for a few special countries
Q5.Do you have other items not displayed on your website ?
A5.Yes, our company supplies full range survey products. If you are looking for product not whowed on
our website. Please contact us freely. We will reply you in time.
Q6. Can you do a custom logo on the products?
A6. Yes. We can print your logo on our products and boxes.
