Quick Details
-
Warranty:
-
15 Years
-
Brand Name:
-
SuperSolar
-
Model Number:
-
HS182-182
-
Place of Origin:
-
Fujian, China
-
Panel Dimensions:
-
1722mm*1134mm*30mm
-
Product name:
-
full balck solar panels
-
Cell Type:
-
182mm
-
Solar cell:
-
A-grade
-
Weight:
-
21.5kg
-
Cable:
-
4mm2
-
Application:
-
Solar Power System
-
Junction Box:
-
IP68 Rated
-
Color:
-
Black
-
Frame:
-
Anodized Aluminium Alloy
-
Connector:
-
Cable Connector
-
Certificate:
-
CE/TUV
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, Half Cell, All Black
-
Panel Efficiency:
-
19.95%-20.97%
-
Warranty:
-
15 Years
-
Brand Name:
-
SuperSolar
-
Model Number:
-
HS182-182
-
Place of Origin:
-
Fujian, China
-
Panel Dimensions:
-
1722mm*1134mm*30mm
-
Product name:
-
full balck solar panels
-
Cell Type:
-
182mm
-
Solar cell:
-
A-grade
-
Weight:
-
21.5kg
-
Cable:
-
4mm2
-
Application:
-
Solar Power System
-
Junction Box:
-
IP68 Rated
-
Color:
-
Black
-
Frame:
-
Anodized Aluminium Alloy
-
Connector:
-
Cable Connector
-
Certificate:
-
CE/TUV
Product Description

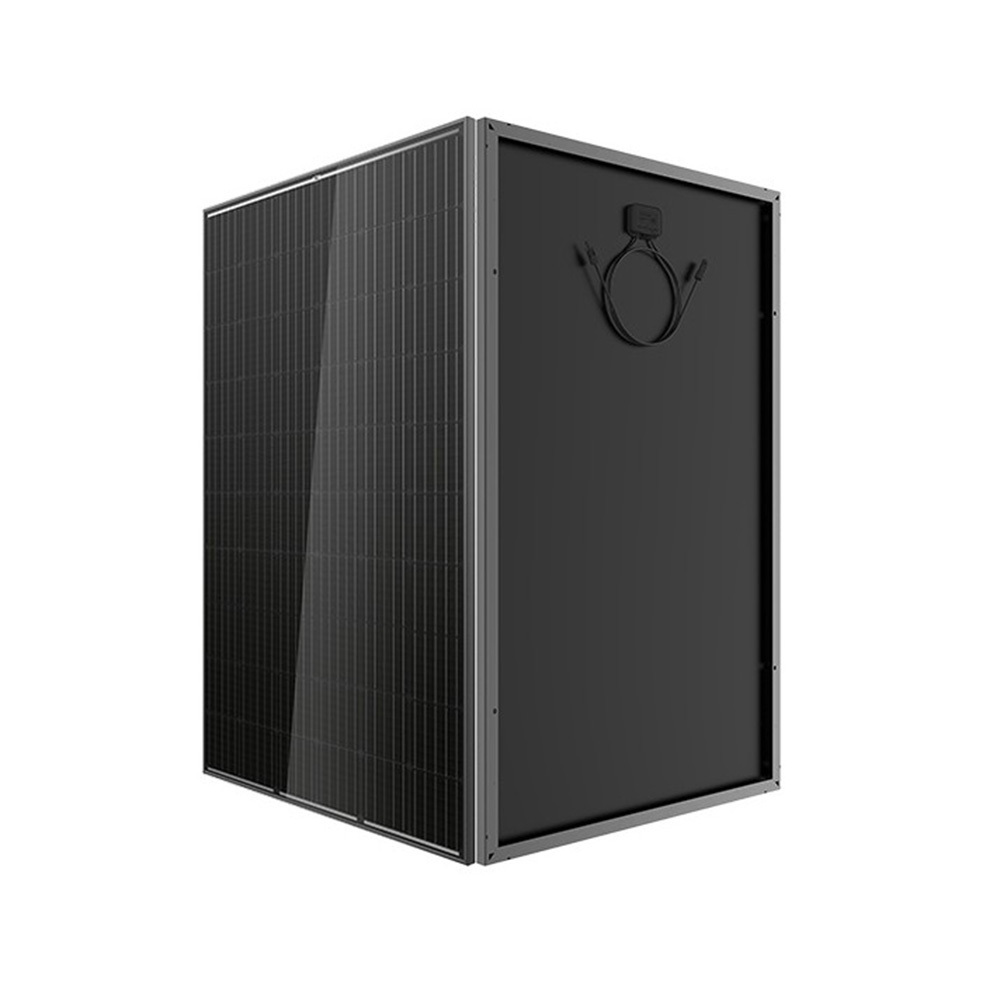

All-black solar panels are not only with black backsheets and black frames, but also black adhesives around junction boxes and other electronics. In this way, all-black solar panels have a more aesthetically pleasing look, although they may lose the benefit of reflection and light trapping, resulting in a 0.5% lower efficiency. But a 0.5% efficiency loss isn’t noticeable to the average residential homeowners, espacially when they desire for more attractive solar systems.
MBB Cell
New circuit design, lower internal current, lower internal resistance loss.
Higher Output Power
Module adopts 108 pcs of 182* 182 mm half cells, the maximum power can reach 410W.
Harsh Environmental Adaptability
Strict salt spray and ammonia corrosion test by TUV Nord.
Load Capacity
Mechanical load tests including wind load 2400 Pa and snow load 5400 Pa done by TUV Nord.
Low Light Features
Higher performance under low light environment.
PID Protection
Ensure the attenuation probability caused by PID phenomenon is minimized.
Glass
AR coating tempered, low iron, lower reflection, high transparency, anti-reflective
Solar Cell
A grade/ perc/ square mono/ half cell technology. Higher efficiency, anti PID PV cells
Frame
Anodized aluminum alloy frame black/sliver optional
Backsheet
White or Black optional
Junction Box
Provides complete IP68 protection against environmental particles such as dust and low-pressure water jets.
Cable Connector
These IP67 waterproof connectors
ensure
the water and dust will not enter the connector during extended outdoor use.
Black panels come in two types
BoW
Black frame on white back
BoB or all black
Black frame on black back
Optional black panel clamps or rails
SPECIFICATIONS
|
Weight
|
21.5kg
|
|
Dimensions
|
1722mm* 1134mm* 30mm
|
|
Cell Dimensions
|
182* 182mm
|
|
Cell Amount
|
54 *2 pcs
|
|
Maximum System Voltage
|
1500V
|
|
Junction Box
|
IP68
|
|
Frame
|
Aluminum Alloy
|
|
Cable
|
4mm2
|
|
Connector
|
Cable connector
|
|
Application Level
|
Grade A
|
Project Case
15KW on flat roof
20KW
on
pitched roof
12KW on metal roof
200KW on the Ground
