Quick Details
-
Brand Name:
-
Shuguang brand
-
Dimension(L*W*H):
-
2140*1660*1500mm
-
Weight:
-
8200 KG
-
Marketing Type:
-
Hot Product 2023
-

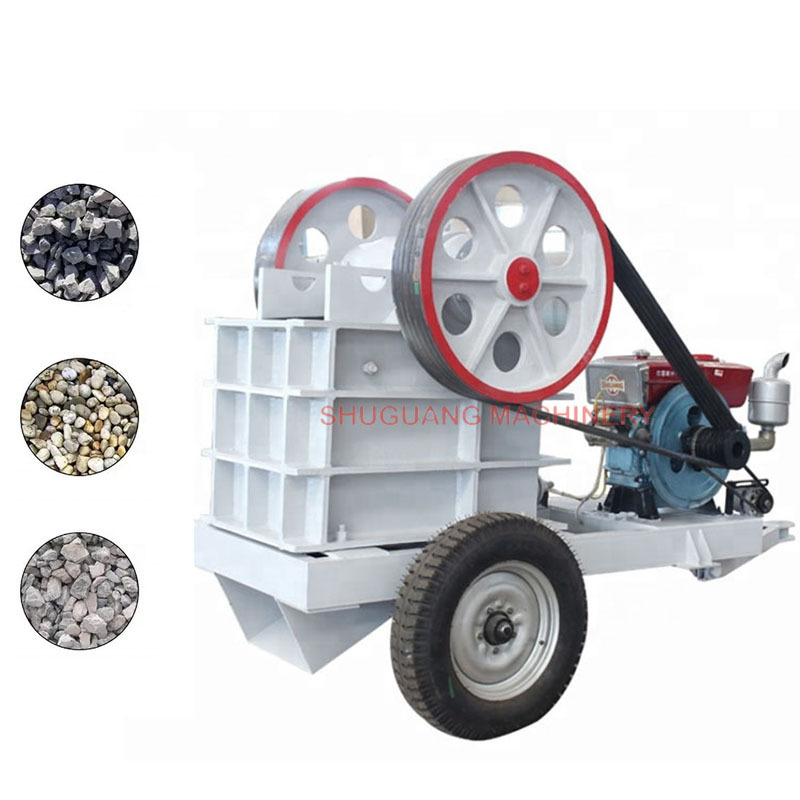

Item name:
-
jaw crusher 250 x 1200
-
Processed Materials:
-
stone,ore
-
Spare parts supply:
-
Life Long Provide
-
Output size:
-
as your demand
-
After-sales Service Provided:
-
Field maintenance and repair service
-
Material:
-
Q235 steel plate
-
Drawing:
-
can provide
-
Models:
-
many(150*250,400*600,900*1060)and so on
-
Capacity:
-
1-800t/h
-
Factory history:
-
since 1993
Quick Details
-
Application:
-
mining,ore
-
Capacity(t/h):
-
30-80 t/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Shuguang brand
-
Dimension(L*W*H):
-
2140*1660*1500mm
-
Weight:
-
8200 KG
-
Marketing Type:
-
Hot Product 2023
-
Item name:
-
jaw crusher 250 x 1200
-
Processed Materials:
-
stone,ore
-
Spare parts supply:
-
Life Long Provide
-
Output size:
-
as your demand
-
After-sales Service Provided:
-
Field maintenance and repair service
-
Material:
-
Q235 steel plate
-
Drawing:
-
can provide
-
Models:
-
many(150*250,400*600,900*1060)and so on
-
Capacity:
-
1-800t/h
-
Factory history:
-
since 1993
Products Description
Suitable material that can be crushing :Limestone,
river pebble,
granite, marble, basalt, quartzite, iron ore, copper ore,bluestone, sandstone, shale, construction waste, coal gangue, coal, ore tailings, artificial sand debris, etc.Jaw crusher is a kind of stone crushing machine which is widely used as primary or secondary crusher.
Jaw crusher machie made up of frame, eccentric shaft, grooved wheel, flywheel, moving jaw, side guard plate, toggle plate, toggle backseat, adjusting screw, returning spring, fixed jaw plate and moving jaw plate. Toggle plate is of safety function.
Working Principle
The motor drives pulley of jaw crusher, making the movable jaw do periodic movement through eccentric shaft. The angle between toggle plate and movable jaw increases when movable jaw moves up. So the movable jaw moves to the fixed jaw. The stones are crushed in this process in jaw crusher. The angle between toggle plate and movable jaw decreases when movable jaw moves down, the movable jaw moves away from fixed jaw by the pulling of rod and spring, the crushed stones are discharged from the outlet.
Main Features and Working Principle
Our Advantage
Deep cavity crushing, energy saving
Optimized deep cavity crushing, no dead zone, greatly improved feed and crushing efficiency, single machine energy saving 15% -30%, system energy saving more than double.
Centralized lubrication system, easy maintenance
The uniquely designed centralized lubrication system makes component lubrication faster and requires less maintenance.
Strong carrying capacity and high stability
The larger forging blank processing heavy-duty eccentric shaft, high-manganese steel plate and high-alloy cast steel assembly, the equipment bearing capacity is stronger and the stability is higher.
Advanced technology and long service life
Drawing on advanced manufacturing processes, digitally analyzing the operation of various components, the internal structure is precise, and the service life of the equipment is greatly extended.
Simple structure and easy maintenance
Under the basic principle of compound pendulum, the redundant components are simplified, the overall structure of the device is simple, the crushing ability is strong, the operation and maintenance are convenient, and the operating cost is low.
Large discharge adjustment range
Multi-purpose multi-purpose gasket type discharge adjustment device, the discharge adjustment range is large, which increases the flexibility of the equipment when used, and can meet various processing requirements of customers.
Low noise and less dust
The equipment refers to environmental protection standards, the noise is low, the equipment can be dusted.
Technical Data
|
Type
|
Feed Opening(mm)
|
Capacity(t/h)
|
Motor Power
|
Total weight(t)
|
|
PE150*250
|
150*250
|
1-3
|
5.5
|
0.8
|
|
PE200*300
|
200*300
|
2-6
|
7.5
|
1.2
|
|
PE200*350
|
200*350
|
3-10
|
11
|
1.5
|
|
PE250*400
|
250*400
|
5-20
|
15
|
2.8
|
|
PE400*600
|
400*600
|
16-60
|
30
|
7
|
|
PE500*750
|
500*750
|
40-110
|
55
|
12
|
|
PE600*750
|
600*750
|
80-240
|
55
|
15.8
|
|
PE600*900
|
600*900
|
50-180
|
55
|
17
|
|
PE800*1060
|
800*1060
|
130-330
|
110
|
29.8
|
|
PE900*1200
|
900*1200
|
230-390
|
110
|
33
|
|
PE250*1200
|
250*1200
|
30-78
|
37
|
8
|
Packing & Delivery
Generally,we adopt standard containers, bare main machine, motors and small parts are packed in wooden cases.Or depend on your demands.
Customer Site
FAQ
Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year.
Q: How long is the warranty of your equipment? Do you supply spare parts?
A: Our warranty period is one year generally. We can supply spare parts.
Q: Do you provide after-sale service?
A: Yes. We have a professional after-sale service team to promptly and thoroughly solve your problems.
Q: How long is your delivery time?
A: Generally it is 10-15 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Yes. Many domestic and international customers visit our factory every year.
Q: How long is the warranty of your equipment? Do you supply spare parts?
A: Our warranty period is one year generally. We can supply spare parts.
Q: Do you provide after-sale service?
A: Yes. We have a professional after-sale service team to promptly and thoroughly solve your problems.
Q: How long is your delivery time?
A: Generally it is 10-15 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Are you trading company or manufacturer?
A: We are factory.
A: We are factory.
If you want to know more details of the machine, please contact us!
