1. Operation reliability: adopts PLC to control the operation of the equipment.
2. Large drilling range: the holes distance range is from 250mm to 5000mm.
3. High efficiency: can drill 4 different positions of holes at the same time, when the profile length is not more than 2500mm, it can be divided into two areas to process.
4. High accuracy: the motor spindle is connected with drilling bit through spindle box, the drilling bit swing small, the
drilling accuracy is high.
5. High flexibility: the drilling head can realize single-action, double-action and linkage, and can also be freely combined.
6. Multi-function: through changing different drilling bits, it can drill group holes, the Min. hole distance can up to 18mm.
7. Stable drilling: the gas liquid damping cylinder control the drilling bit to operate, and the speed is linearly adjustment.
- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
1350 kg
-
Production Capacity:
-
100 Set/Sets per Year
-
Power:
-
4.4KW
-
Dimension(L*W*H):
-
6000*1100*1900mm
-
Product name:
-

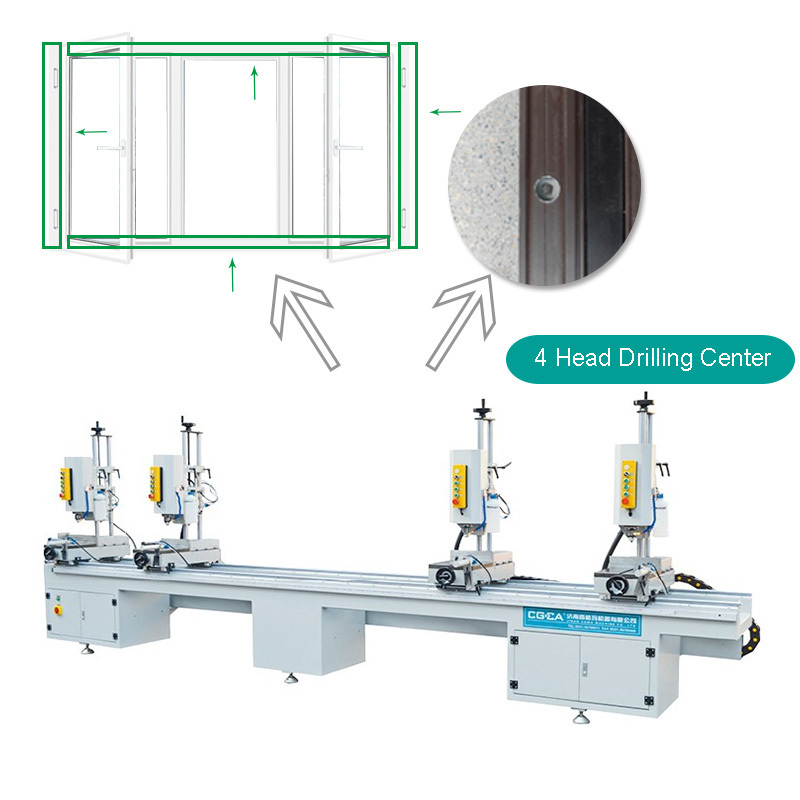

4-head Combination Drilling Machine for Aluminum Profile
-
Application:
-
aluminum and uPVC
-
Two holes distance range:
-
250mm~5000mm
-
Max. Drilling diameter:
-
13mm
-
Input Power:
-
380V/50HZ
-
AIR PRESSURE:
-
0.5~0.8MPa
-
Service:
-
After-sales Service Provided
-
Air Consumption:
-
80L/min
-
Motor Speed:
-
1400r/min
-
whatsapp:
-
+8616653168659
Quick Details
-
Marketing Type:
-
New Product 2021
-
Brand Name:
-
CGMA
-
Voltage:
-
AC380V/50HZ
-
Weight:
-
1350 kg
-
Production Capacity:
-
100 Set/Sets per Year
-
Power:
-
4.4KW
-
Dimension(L*W*H):
-
6000*1100*1900mm
-
Product name:
-
4-head Combination Drilling Machine for Aluminum Profile
-
Application:
-
aluminum and uPVC
-
Two holes distance range:
-
250mm~5000mm
-
Max. Drilling diameter:
-
13mm
-
Input Power:
-
380V/50HZ
-
AIR PRESSURE:
-
0.5~0.8MPa
-
Service:
-
After-sales Service Provided
-
Air Consumption:
-
80L/min
-
Motor Speed:
-
1400r/min
-
whatsapp:
-
+8616653168659
Products Description
Machine Feature:
|
Item
|
Content
|
Parameter
|
|
1
|
Input source
|
380V/50HZ
|
|
2
|
Working pressure
|
0.6～0.8MPa
|
|
3
|
Air consumption
|
80L/min
|
|
4
|
Total power
|
4.4KW
|
|
5
|
Spindle speed
|
1400r/min
|
|
6
|
Max. Drilling diameter
|
∮13mm
|
|
7
|
Two holes distance range
|
250mm～5000mm
(choose suitable drilling chunk to satisfy the requirement of small hole distance, the Min. hole distance can up to 18mm) |
|
8
|
Processing section size（W*H）
|
250*250mm
|
|
9
|
Dimension（L*W*H）
|
6000*1100*1900mm
|
|
10
|
Weight
|
1350KG
|
Details Images
Low-voltage circuit break
SIEMENS Electrical safety device that protects circuits from overcurrent (overload and short circuit)
Drill chuck
Installed at the end of the drill machine spindle, it uses three concentrically movable jaws to clamp the chuck of drill bits or
other tools..
other tools..
Air Cylinder
High quality air cylinder
Base
Sample Images
