Quick Details
-
Brand Name:
-
OEM
-
Model Number:
-
MD-S200
-
Product Name:
-
DIGITAL PRESSURE GAUGE
-
Material:
-
stainless steel
-
Dial size:
-
60mm.100mm
-
Mounting:
-
back/bottom/panel mount
-
display:
-
Lcd
-
POWER:
-
3V(Battery-powered)
-
Accuracy:
-
1%FS
-
Thread:
-
1/4 1/2 PT/NPT/G/M
Quick Details
-
Type:
-
Boiler Gauges, Pressure Indicators, Analog Pressure Gauges, Differential Pressure Gauges, Bourdon Tube Pressure Gauges, Mechanical Pressure Gauges, Capsule Pressure Gauges, Low-Pressure Gauges, Electronic Pressure Gauges, Vacuum Gauges
-
Warranty:
-
1 year
-
Place of Origin:
-
China
-
Brand Name:
-
OEM
-
Model Number:
-
MD-S200
-
Product Name:
-
DIGITAL PRESSURE GAUGE
-
Material:
-
stainless steel
-
Dial size:
-
60mm.100mm
-
Mounting:
-
back/bottom/panel mount
-
display:
-
Lcd
-
POWER:
-
3V(Battery-powered)
-
Accuracy:
-
1%FS
-
Thread:
-
1/4 1/2 PT/NPT/G/M

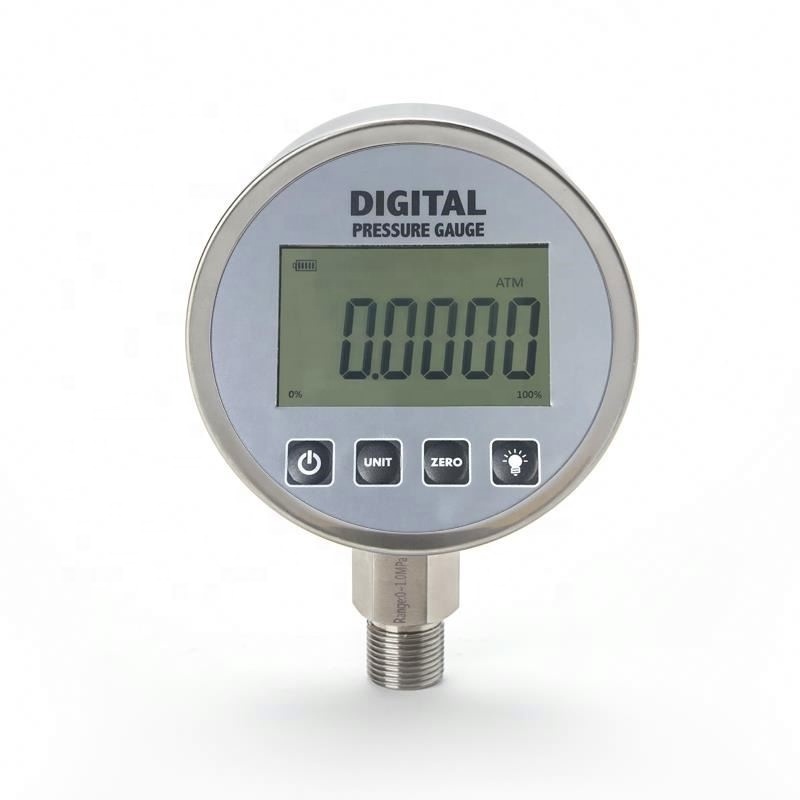

MD-S200 is a high-precision and intelligent digital pressure gauge. It has a high-precision sensor and display the pressure accurately in real time.
Specifications
| Range |
(-0.1~0) MPa 0~160/250/ 400/600kPa 0~1/1.6/2.5/4/6/10/16/25MPa |
| Over Pressure | 150% |
| Backlight Color | White |
| Dial Size | 60mm,100MM |
| Acc. | 1%FS 0.5%FS |
| Long-term Stability | Typical: ±1%FS/year |
| Operating Temperature | -20 - 60 ℃ |
| Compensation Temperature | 0 ~40 ℃ |
| Electric Protection | EN61326 |
| Sampling Frequency | 3 Times/sec |
| Measurement Medium | Gas, water, oil |
| Pressure Connection | G1/4 NPT1/4 G1/2 NPT 1/2 |
| Connector Material | 304SS |
| Shell | 304SS |
| Supply | Battery (Triple A battery) |
Application
Machinery and electronic indusry
Supporting equipment of instruments and meters
Pressure Laboratory
Mechanical engineering automation
Features:
4 digital LCD showing the pressure accurately in real time
Different pressure units available ( Kpa, PSI, Kgf/cm ² , Bar, Mpa); zero clearing; backlight; on/off button;
Battery-powered, low power design keeping it working more than 12 months
