Quick Details
-
Power (kW):
-
3
-
Range of Spindle Speed(r.p.m):
-
3200 - 5700 r.p.m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Guofeng
-
Voltage:
-
380V/220V/415V or designed
-
Dimension(L*W*H):
-
vary
-
Weight (KG):
-
120 KG
-
Product name:
-
Herb Grinder Food Pulverizer Spice Grinder Machine
-
Function:
-
Powder Flour Grinding
-
Capacity:
-
100~1000kg/h
-
Suitable for:
-
Brittle materials
-
Model:
-
GF20-GF60
-
Rotate speed:
-
3200-5700rpm
-
Final products:
-
10-120 Mesh
-
Color:
-
Clients' Requirement
-
Advantage:
-
Low Consumption High Efficiency
-
Processing:
-
Powder Crushing Machine
Quick Details
-
Output (kg/h):
-
100 - 15000 kg/h
-
Feeding Size (mm):
-
1 - 20 mm
-
Output Size (mesh):
-
10 - 120 mesh
-
Power (kW):
-
3
-
Range of Spindle Speed(r.p.m):
-
3200 - 5700 r.p.m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Guofeng
-
Voltage:
-
380V/220V/415V or designed
-
Dimension(L*W*H):
-
vary
-
Weight (KG):
-
120 KG
-
Product name:
-
Herb Grinder Food Pulverizer Spice Grinder Machine
-
Function:
-
Powder Flour Grinding
-
Capacity:
-
100~1000kg/h
-
Suitable for:
-
Brittle materials
-
Model:
-
GF20-GF60
-
Rotate speed:
-
3200-5700rpm
-
Final products:
-
10-120 Mesh
-
Color:
-
Clients' Requirement
-
Advantage:
-
Low Consumption High Efficiency
-
Processing:
-
Powder Crushing Machine
Product Overview

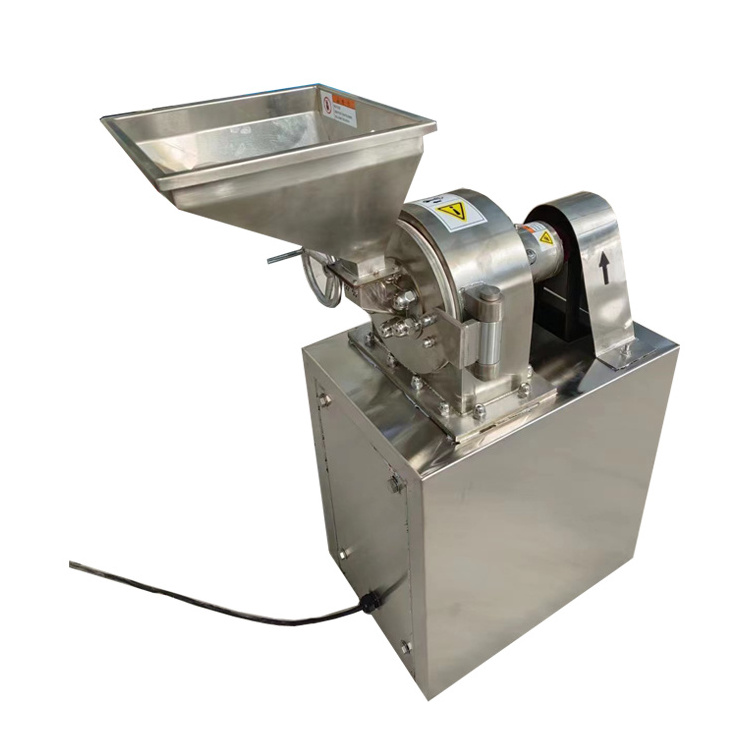

Herb Grinder Food Pulverizer Spice Grinder Machine
The food grade toothed disc crusher is made of 304 stainless steel. The door of the crusher is equipped with a fixed toothed disc, on which a ring of fixed toothed ring with steel teeth is installed. The main shaft is provided with a movable tooth disc, and the movable tooth disc is provided with movable teeth. The movable teeth and the fixed gear ring on the movable gear plate are staggered with each other.
Application field
Applied and advantages:
Toothed disc crusher is suitable for pharmaceutical, feed, chemical, metallurgical, food and other industries. It can also be used as the matching equipment for the previous process of the micro grinder and ultra micro grinder. The utility model has the advantages of high efficiency, low noise, safe operation and sanitation.
PRODUCT SPECIFICATIONS
|
Model
|
Compass diameter
|
Motor power
|
Rotate speed
|
Capacity
|
Size
|
|
GF-20
|
200mm
|
3KW
|
7200rpm
|
100kg/h
|
740*400*980mm
|
|
GF-30
|
300mm
|
4KW
|
5700rpm
|
300kg/h
|
850*520*1220mm
|
|
GF-40
|
400mm
|
7.5KW
|
4500rpm
|
500-800kg/h
|
1150*850*1250mm
|
|
GF-50
|
500mm
|
11KW
|
3900rpm
|
1000-1300kg/h
|
1200*950*1350mm
|
|
GF-60
|
600mm
|
15KW
|
3200rpm
|
1300-1500kg/h
|
1250*950*1350mm
|
