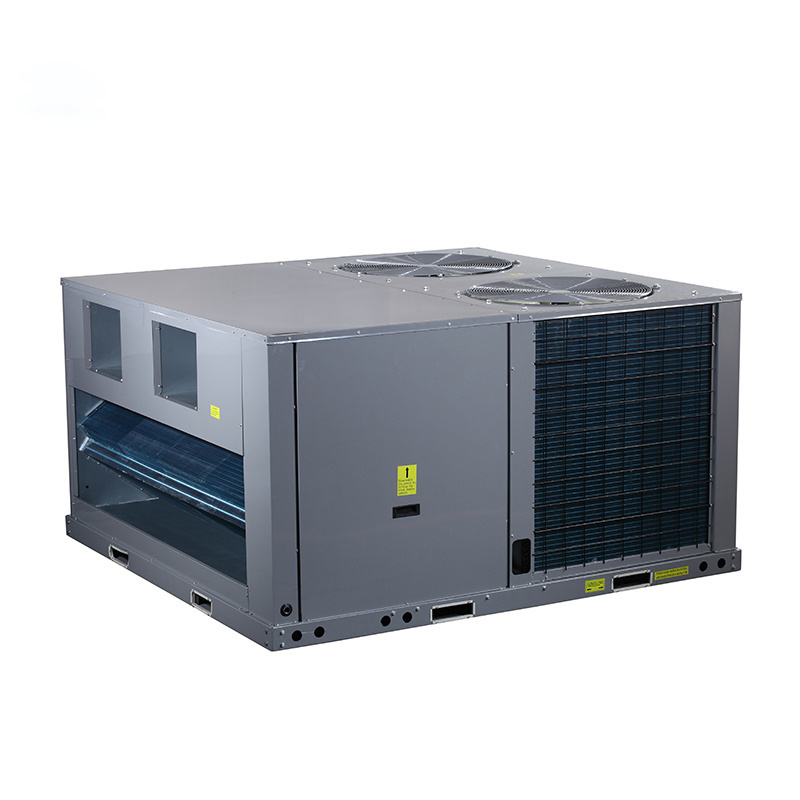

15 Ton Rooftop Air Conditioner Package Unit With Heat Pump Commercial Air Conditioner

15 Ton Rooftop Air Conditioner Package Unit With Heat Pump Commercial Air Conditioner

FOB Reference Price: Get Latest Price

≥1 Sets

US $1000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Applicable Industries:: Hotels,Manufacturing Plant,restaurant,Shops,others

Place of Origin:: Guangdong, China

Brand Name:: TongXing, Tongxing

Dimension(L*W*H):: 2320*1245*2220mm

Warranty of core components:: 3Year

Core Components:: Compressor, Condenser, Evaporator

Weight (KG):: 196 KG

Power supply:: 380-415V / 3Ph / 50Hz

Refrigerant:: R410a

Cop:: 11.2-11.9

Certification:: EMC, CB, CE, ROHS, Emf, LFGB, UR, GS

Product name:: Central Air conditioning System Rooftop Packaged Units

EER:: 10.9-11.4

After-sales Service Provided:: Video technical support, Online support

Quick Details

Type:: Rooftop Packaged Unit

Mounting:: Rooftop

Airflow:: 45000m³/h

Applicable Industries:: Hotels,Manufacturing Plant,restaurant,Shops,others

Place of Origin:: Guangdong, China

Brand Name:: TongXing, Tongxing

Dimension(L*W*H):: 2320*1245*2220mm

Warranty of core components:: 3Year

Core Components:: Compressor, Condenser, Evaporator

Weight (KG):: 196 KG

Power supply:: 380-415V / 3Ph / 50Hz

Refrigerant:: R410a

Cop:: 11.2-11.9

Certification:: EMC, CB, CE, ROHS, Emf, LFGB, UR, GS

Product name:: Central Air conditioning System Rooftop Packaged Units

EER:: 10.9-11.4

After-sales Service Provided:: Video technical support, Online support

Product Description

15 Ton Rooftop Air Conditioner Package Unit With Heat Pump Commercial Air Conditioner

Rooftop packaged units are applied in the industrial and commercial fields such as hotel, supermarkets, authorized dealing shop, offce building and factory workshop. They perfectly connect many characteristic of large-sized central a/c, such as convenience, comfort, high-class , the simplicity and flexibility. The new design makes use of the space module, the features of small-sized commercial modern building space, making the cool and heat air spread into each room averagely to form "Zero" temperature difference. Besides, outdoor fresh air can be absorbed. The air path can connect with indoor ornament which is completely hidden and does not occupy any space. It has become a new generation of products of central a/c and traditional commercial a/c.

Details

6.2Ton 7.5Ton 8.5Ton 10Ton 12.5Ton 15Ton 17.5Ton 20 Ton 12.5Ton 25 Ton 30 Ton
DC Inverter Technology

High Efficiency&Energy-Saving
Elegant Design
Smart Control
Cheap price

Model	PWWD-25	PWWD-32	PWWD-52	PWWD-64	PWWD-80	PWWD-100
Cooling Capacity	25KW	32KW	52KW	64KW	80KW	100KW
		215000kcal/h	27520kcal/h	44290kcal/h	55040kcal/h	68800kcal/h	86000kcal/h
		85379btu/h	109286btu/h	175882btu/h	218571btu/h	273214btu/h	341518btu/h
Cooling Power Input	9.9KW	12.1KW	19.6KW	24.9KW	31.1KW	39.7KW
Heating Capacity	26KW	33KW	53KW	66KW	82KW	103KW
		22360kcal/h	28380kcal/h	45580kcal/h	56760kcal/h	70520kcal/h	88580kcal/h
		88795btu/h	112701btu/h	181004btu/h	225402btu/h	280045btu/h	351763btu/h
Heating Power Input	9.4KW	11.9KW	18.6KW	23.9KW	30.1KW	38.2KW
Capacity Adjust %	0,100			0,50,100
Power Supply	380V~415V/3PH/50Hz

Feature Introduction

High reliability and high efficiency Outstanding reliability

1.Trane rooftop package units shall be factory assembled, internally wired, fully charged refrigerant and

100% run tested to check cooling and heating operation, fan and blower rotation, and control sequence before leaving the factory. Wiring internal to the unit shall be colored and numbered for simplified identification. The unit is provided with an integral weather resistant control panel

2. Multiple self-protecting functions guarantee the safety of unit and running perfectly: high-pressure protection, low-pressure protection, over-heat protection, over-current protection and so on. Reliable components 3. Reliable brand compressor, high IP class motor, reliable pressure switch.

Excellent efficiency

High efficiency scroll compressor

1.Enlarge the air inlet area space contribute a high efficiency. 2.Durable construction 3.Pre-painted exterior cabinet panels pass 1000-hour Salt Spray Test for durability. 4.Weather-resistant construction with capped seams and sloped top panels. 5.G90 galvanized heavy gauge plate conforming to ASTM-A-653, Zinc content of galvanized plate is 275 g/m2.

High Efciency and More Energy Saving

Thanks to the advanced all DC inverter technology, optimized system design and accurate intelligent control technology, EER of GMV5 is up to 4.31 while COP is up to 4.55.

Auto energy-saving mode, will self-adjust parameters according to the operation status, to lower the cost of electricity Up to 15%.

Compulsory energy-saving mode, the system will limit power output forcibly, Up to 20%.

The advantages of choosing our supplier

Professional Experience Warmly service Authorized One step supply Turnkey servic Certification

Professional

● Engineer and designer team
● Air conditioning system sale engineer
● Professional supply chain
● Project evaluation and management

Experience

● 20+ years of central air conditioning
● 400+ projects all over the world
● 100 million USD total project cost
● 5 million sqm

Warmly Service

● Customer-oriented
● 24 hours on line
● 365 days, all year around
● 1 to 1 service

One step supply

● Indoor units and outdoor units
● Control system
● Installing accessories, 50+ kinds
● Tools and materials

Turnkey service

● Skilled and experienced engineer
● The price advantage
● Save 80% buying time
● Direct after sale service

Certification

● Verified by TUV
● CE certification
● CCC, CCCS, ISO

Authorized

● Directly agent of group
● Authorized by brand
● Designated distributor
● Import & Export of AC system

The price instruction

When you buy the Rooftop Package Central Air Conditioner , there are many stages can add profit and increase the final price
When you buy from us, there is no middle man, and only the extra freight cost.
