Quick Details
-
Insulation Material:
-
Mica tape
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Xingyuan
-
Model Number:
-
DY-16
-
Product name:
-
GN500 mica warapped glass fiber braided electric high temperature wire
-
Conductor:
-
Nickel Copper
-
Insulation:
-
Mica Tape
-
Rated Voltage:
-
750V
-
Feature:
-
High Strength
-
Rated Temperature:
-
500C 800C 1000C
-
Usage:
-
Heating Product
-
Diameter:
-
0.08-7.5mm
-
Size:
-
Customized Size
-
Color:
-
Customized
Quick Details
-
Application:
-
Heating
-
Conductor Material:
-
Stranded Nickel Copper, Nickel
-
Conductor Type:
-
Stranded
-
Insulation Material:
-
Mica tape
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Xingyuan
-
Model Number:
-
DY-16
-
Product name:
-
GN500 mica warapped glass fiber braided electric high temperature wire
-
Conductor:
-
Nickel Copper
-
Insulation:
-
Mica Tape
-
Rated Voltage:
-
750V
-
Feature:
-
High Strength
-
Rated Temperature:
-
500C 800C 1000C
-
Usage:
-
Heating Product
-
Diameter:
-
0.08-7.5mm
-
Size:
-
Customized Size
-
Color:
-
Customized
Electrical power GN500 mica wrapping glass fiber resistance high temperature wire and cable for Melt-blown machine
This product is used in the special environment of metallurgy, thermal engineering, petroleum,
chemical engineering, natural gas, kerosene, instrument, aviation, civil furnace, etc. and a variety
of electrical installations requiring fire resistance. Wiring of ovens or similar high temperature
equipment such as commercial cooking equipment, heater bands, blast furnaces, coke ovens
and cement kilns, where not subjected to repeated flexing and protected from mechanical abuse,
and where the acceptability, including current-carrying capacity.
Triple fire resistant high temperature insulation.

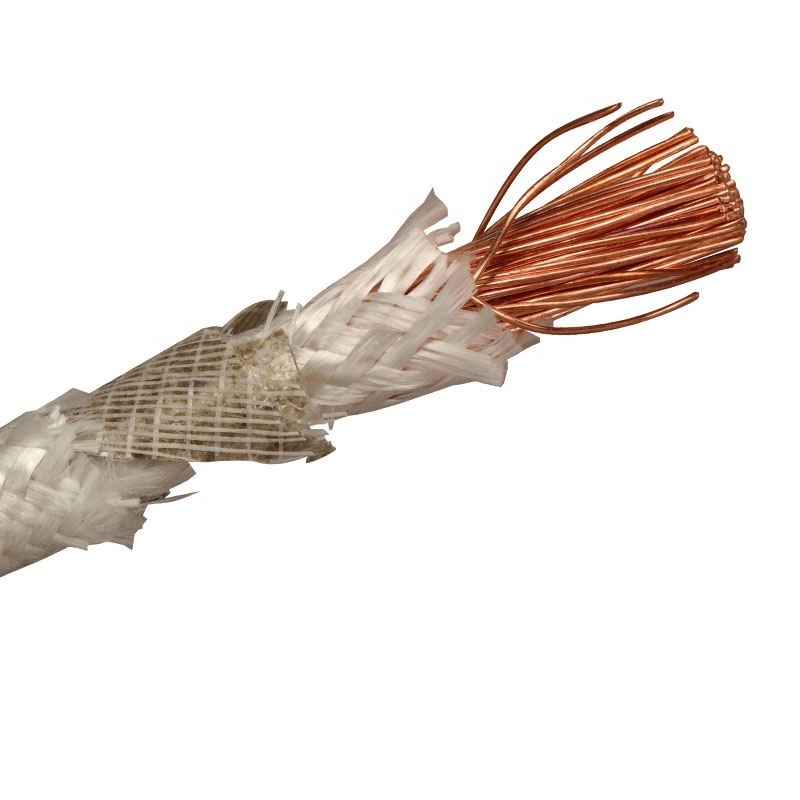

It uses high quality oxygen free copper wire. The inner layer is high temperature resistant glass fiber woven insulation.The middle layer high temperature mica tape wrapping with good quality, and the outer uses glass fiber braided sheath insulation.
Product parameter
|
Nominal section
mm2 |
Condutor Structure
NO./Ømm |
Insulation Thickness
mm |
Outer Diamemter
mm |
Conductor DC Resistance
20C Ω/km |
| 0.5 | 7×0.30 | 0.5 | 2.3±0.3 | 40.8 |
| 0.75 | 11×0.30 | 0.5 | 2.5±0.3 | 24.3 |
| 1 | 14×0.30 | 0.5 | 2.6±0.3 | 20 |
| 1.5 | 21×0.30 | 0.5 | 2.9±0.3 | 12.6 |
| 2 | 28×0.30 | 0.6 | 3.3±0.5 | 9.84 |
| 2.5 | 35×0.30 | 0.6 | 3.6±0.5 | 7.37 |
| 4 | 56×0.30 | 0.8 | 4.7±0.5 | 4.83 |
| 6 | 84×0.30 | 0.8 | 5.5±0.5 | 3.26 |
| 10 | 84×0.40 | 0.8 | 6.6±0.5 | 1.80 |
| 16 | 228×0.30 | 0.8 | 7.8±0.5 | 1.31 |
| 126×0.40 | 0.8 | 7.8±0.5 | 1.31 | |
| 25 | 196×0.40 | 0.8 | 9.5±0.5 | 0.758 |
| 361×0.30 | 0.8 | 9.5±0.5 | 0.758 | |
| 35 | 494×0.30 | 1.0 | 11.2±1.0 | 0.548 |
| 50 | 396×0.40 | 1.2 | 13.2±1.0 | 0.384 |
| 703×0.30 | 1.2 | 13.2±1.0 | 0.384 | |
| 70 | 551×0.40 | 1.2 | 15.4±1.0 | 0.289 |
| 988×0.30 | 1.2 | 15.4±1.0 | 0.289 | |
| 95 | 760×0.40 | 1.2 | 17.4±1.0 | 0.205 |
Products Picture Ref
RFQ
Are you a manufacture or a trading company?
Jiangsu Xingyuan is a professional cable manufacturer with 13 years production experience.
* What ’ s your company MOQ?
Our company has MOQ requirement, but we also accept small quantity.
* Whether these products quality assured ?
Most of cables are certificated . Also, we have strict QC, all products are 100% tested before delivery. Quality is assured.
* When I want customized products, how to do?
We have Equipped with professional equipment, technicians & skilled emp lo yees, OEM & customized service is welcome. Drawings / samples are required.
* Can you send a sample for us to test ?
1. If we have inventory and total amount is small,it's free.
2. If we don't have inventory, sample and freight cost have to be paid by your esteemed company. But we will return the sample cost to you when we receiving your initial order.
*If I want to purchase, how to pay ?
Generally we do T/T in 30% deposit before production,70% balance against copy of B/L . Also payment terms are negotiable depending on customer's request.
*After I pay, what about the lead time and shipping method?
Goods can be delivered by air , by express or by sea; International Express as FEDEX, UPS, DHL, TNT; You can choose the best way as you wish. As for the Lead time, 10~ 20 days.
