Quick Details
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1600*2600mm
-
Cutting Thickness:
-
according to your materials
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BLUE ELEPHANT
-
Weight (KG):
-
1500 KG
-
Laser tube:
-
130w-160w
-
Cooling:
-
CW5200 Water cooling
-
Positioning system:
-
Red light positioning
-
Working table:
-
Aluminum knife working table
-
Optional:
-
auto-feeder or down lifting table or rotary device
-
Function:
-
Engraving Cutting Nonmetal Materials
-
Software:
-
English version
-
Accessories:
-
fully equipped
-
Protection system:
-
Water-break protection system
-
Showroom Location:
-
Mexico
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
1-30000mm/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
RuiDa
-
Cutting Area:
-
1600*2600mm
-
Cutting Thickness:
-
according to your materials
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BLUE ELEPHANT
-
Weight (KG):
-
1500 KG
-
Laser tube:
-
130w-160w
-
Cooling:
-
CW5200 Water cooling
-
Positioning system:
-
Red light positioning
-
Working table:
-
Aluminum knife working table
-
Optional:
-
auto-feeder or down lifting table or rotary device
-
Function:
-
Engraving Cutting Nonmetal Materials
-
Software:
-
English version
-
Accessories:
-
fully equipped
-
Protection system:
-
Water-break protection system
-
Showroom Location:
-
Mexico
Product Description

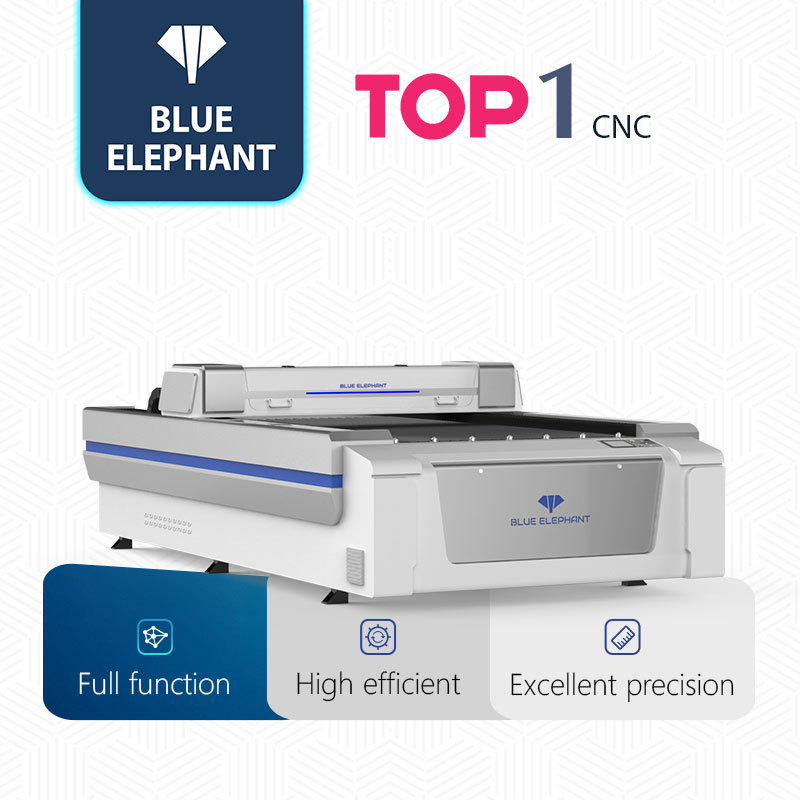

This is redlight positioning and ruida control reci w6 laser tube 130w-160w co2 laser cutting and engraving machine with aluminum knife table and THK linear guide rail & belt transmission. This type of aluminum knife table is mainly used for engraving on hard materials like acrylic, mdf, plywood etc non-metal. if users want to engrave soft materials like leather paper cloth etc, honeycomb table is suitable. if users want 3d engrave on glass, we can also design rotary device inside the machine for cylinder or irregular objects machining.
Technical Parameters
|
Processing area
|
1300mm*2500mm(customized)
|
|
|
Laser power
|
RECI 130-160W
|
|
|
Cooling
|
CW5200 Water cooling
|
|
|
Speed
|
0-30,000mm/min
|
|
|
Cutting or engraving thickness
|
determined by materials
|
|
|
Cutting or engraving materials
|
acrylic, wood, mdf. (leather paper cloth glass etc
also can be engraved according to customer needs)
|
|
|
Position system
|
Red dot
|
|
|
Support graphic format
|
DST, PLT, BMP, DXF
|
|
|
Motor&Drive
|
stepper motor and leadshine 860H drive
|
|
|
Guide rail
|
THK linear guide rail (HIWIN for option)
|
|
|
Working voltage
|
220V, 50Hz
|
|
|
Working table
|
Aluminum knife table. (Honeycomb Table or
Flat table for option)
|
|
|
Reminder: Blue elephant laser machine can be customized according to users requirement
|
|
|
