Quick Details
-
Supplier Type:
-
large supplier
-
Copper Thickness:
-
1oz,2oz
-
Solder Mask:
-
Green
-
Silkscreen:
-
White
-
Electronic Test:
-
Test-rig/Fly Probe Test
-
Application:
-
Electronics/Industrial Devices
-
Material:
-
FR4 /aluminum/ceramic CEM1
-
Board thickness:
-
1.6mm
-
Min. Line Width:
-
0.1mm
-
Surface Finishing:
-
Hasl lead free
-
Min. Hole Size:
-
0.2mm
-
Min. Line Spacing:
-
0.1mm
Quick Details
-
Model Number:
-
T-109
-
Place of Origin:
-
Shenzhen
-
Brand Name:
-
TH
-
Supplier Type:
-
large supplier
-
Copper Thickness:
-
1oz,2oz
-
Solder Mask:
-
Green
-
Silkscreen:
-
White
-
Electronic Test:
-
Test-rig/Fly Probe Test
-
Application:
-
Electronics/Industrial Devices
-
Material:
-
FR4 /aluminum/ceramic CEM1
-
Board thickness:
-
1.6mm
-
Min. Line Width:
-
0.1mm
-
Surface Finishing:
-
Hasl lead free
-
Min. Hole Size:
-
0.2mm
-
Min. Line Spacing:
-
0.1mm

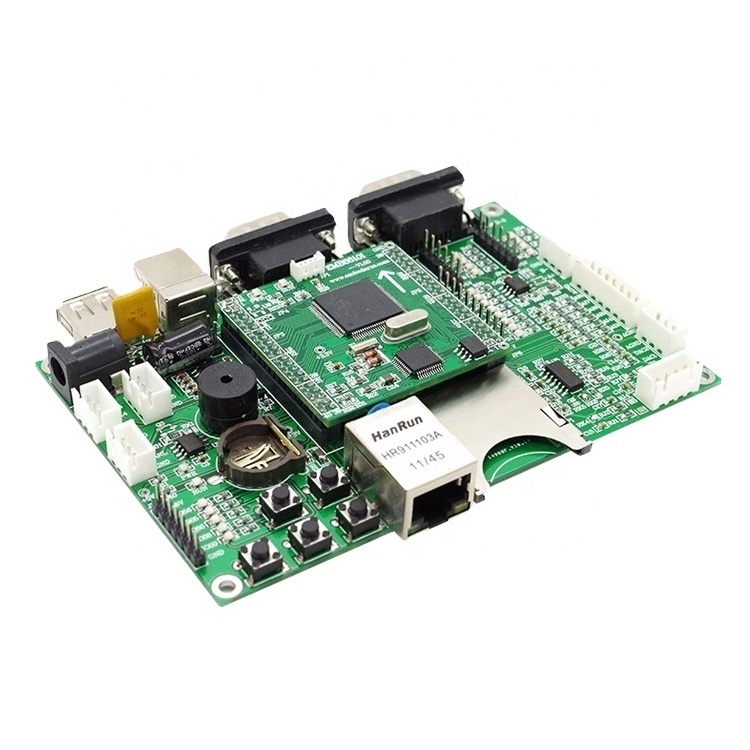

ShenZhen custom electronic kits PCB board OEM PCBA assembled
| Item | Specification | |
| 1 | Numbr of Layer | 1-18Layers |
| 2 | Material | FR-4,FR2.Taconic,Rogers, CEM-1 CEM-3,ceramic , crockery Metal-backed Laminate |
| 3 | Surface Finish | HASL(LF), Gold plating, Electroless nickel immersion gold, Immersion Tin, OSP(Entek) |
| 4 | Finish Board Thickness | 0.2mm-6.00 mm(8mil-126mil) |
| 5 | Copper Thickness | 1/2 oz min;12 oz max |
| 6 | Solder Mask | Green/Black/White/Red/Blue/Yellow |
| 7 | Min.Trace Width & Line Spacing | 0.075mm/0.1mm(3mil/4mil) |
| 8 | Min.Hole Diameter for CNC Driling | 0.1mm(4mil) |
| 9 | Min.Hole Diameter for punching | 0.9mm(35mil) |
| 10 | Biggest panel size | 610mm*508mm |
| 11 | Hole Positon | +/-0.075mm(3mil) CNC Driling |
| 12 | Conductor Width(W) |
0.05mm(2mil)or; +/-20% of original artwork |
| 13 | Hole Diameter(H) |
PTH L:+/-0.075mm(3mil); Non-PTH L:+/-0.05mm(2mil) |
| 14 | Outline Tolerance |
0.125mm(5mil) CNC Routing; +/-0.15mm(6mil) by Punching |
| 15 | Warp & Twist | 0.70% |
| 16 | Insulation Resistance | 10Kohm-20Mohm |
| 17 | Conductivity | <50ohm |
| 18 | Test Voltage | 10-300V |
| 19 | Panel Size | 110×100mm(min);660×600mm(max) |
| 20 | Layer-layer misregistration |
4 layers:0.15mm(6mil)max; 6 layers:0.25mm(10mil)max |
| 21 | Min.spacing between hole edge to circuity pqttern of an inner layer | 0.25mm(10mil) |
| 22 | Min.spacing between board oulineto circuitry pattern of an inner layer | 0.25mm(10mil) |
| 23 | Board thickness tolerance |
4 layers:+/-0.13mm(5mil); 6 layers:+/-0.15mm(6mil) |
| 24 | Impedance Control | +/-10% |
| 25 | Different Impendance | +-/10% |
Q1.What do we need for PCB or PCBA quotation?
PCB : Gerber files/PCB files, Quantity, Board processing details( board material, thickness, copper thickness, surface treatment, color of solder mask and silkscreen)
PCBA : Above PCB info, BOM with components specs, testing doc if you have
Q2. Do we have MOQ?
There is no MOQ in TAILHOO. We are able to produce Small volume as well as large volume production with flexibility.
Q3. Are my files safe?
Yes. All of our client’s design files are classified and safe. And we’ll not share with third party. If NDA needed, we’ll sign.
Q4. If the product fails after receive, what should I do?
We will be responsible for all of the product we send out. If you have sent us test docs, we’ll gurantee 0% defective rate, which means if you receive defective ones, we will be responsible for it. If you don’t have test docs, we’ll gurantee 0.3% defective rate.
Q5, If I only have samples, can I produce it?
Yes. We can copy it and produce based on your samples.
Q6.Shipping cost?
The shipping cost is depend on the destination, weight, packing dimension. We can quote you when production finish, or even before production starting.
PCB : Gerber files/PCB files, Quantity, Board processing details( board material, thickness, copper thickness, surface treatment, color of solder mask and silkscreen)
PCBA : Above PCB info, BOM with components specs, testing doc if you have
Q2. Do we have MOQ?
There is no MOQ in TAILHOO. We are able to produce Small volume as well as large volume production with flexibility.
Q3. Are my files safe?
Yes. All of our client’s design files are classified and safe. And we’ll not share with third party. If NDA needed, we’ll sign.
Q4. If the product fails after receive, what should I do?
We will be responsible for all of the product we send out. If you have sent us test docs, we’ll gurantee 0% defective rate, which means if you receive defective ones, we will be responsible for it. If you don’t have test docs, we’ll gurantee 0.3% defective rate.
Q5, If I only have samples, can I produce it?
Yes. We can copy it and produce based on your samples.
Q6.Shipping cost?
The shipping cost is depend on the destination, weight, packing dimension. We can quote you when production finish, or even before production starting.
