Name: Control Handle
Brand: KAD
Domestic famous control handle,functional buttons, can control UP/DOWN, FORWARD/BACKWARD sensitively.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
KAD
-
Fork Length:
-
1070mm
-
Fork Width:
-
550/680mm
-
Overall Dimensions:
-
2130(L)*850(w)*2080mm(h)
-
Weight (KG):
-
480 kg
-
Color:
-
Green/Red/Yellow/Customized
-
Tire:
-
PU Wheel
-
Load Center:
-
500mm
-
Weight(With battery):
-
480/495/515/535KG
-
Load weight:
-
1000KG
-
Load height:
-
500mm
-
Battery Capacity:
-
24/80Ah
Quick Details
-
Min. Lifting Height:
-
90mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Jiangsu, China, CN;JIA
-
Brand Name:
-
KAD
-
Fork Length:
-
1070mm
-
Fork Width:
-
550/680mm
-
Overall Dimensions:
-
2130(L)*850(w)*2080mm(h)
-
Weight (KG):
-
480 kg
-
Color:
-
Green/Red/Yellow/Customized
-
Tire:
-
PU Wheel
-
Load Center:
-
500mm
-
Weight(With battery):
-
480/495/515/535KG
-
Load weight:
-
1000KG
-
Load height:
-
500mm
-
Battery Capacity:
-
24/80Ah
Product Description
Product Application

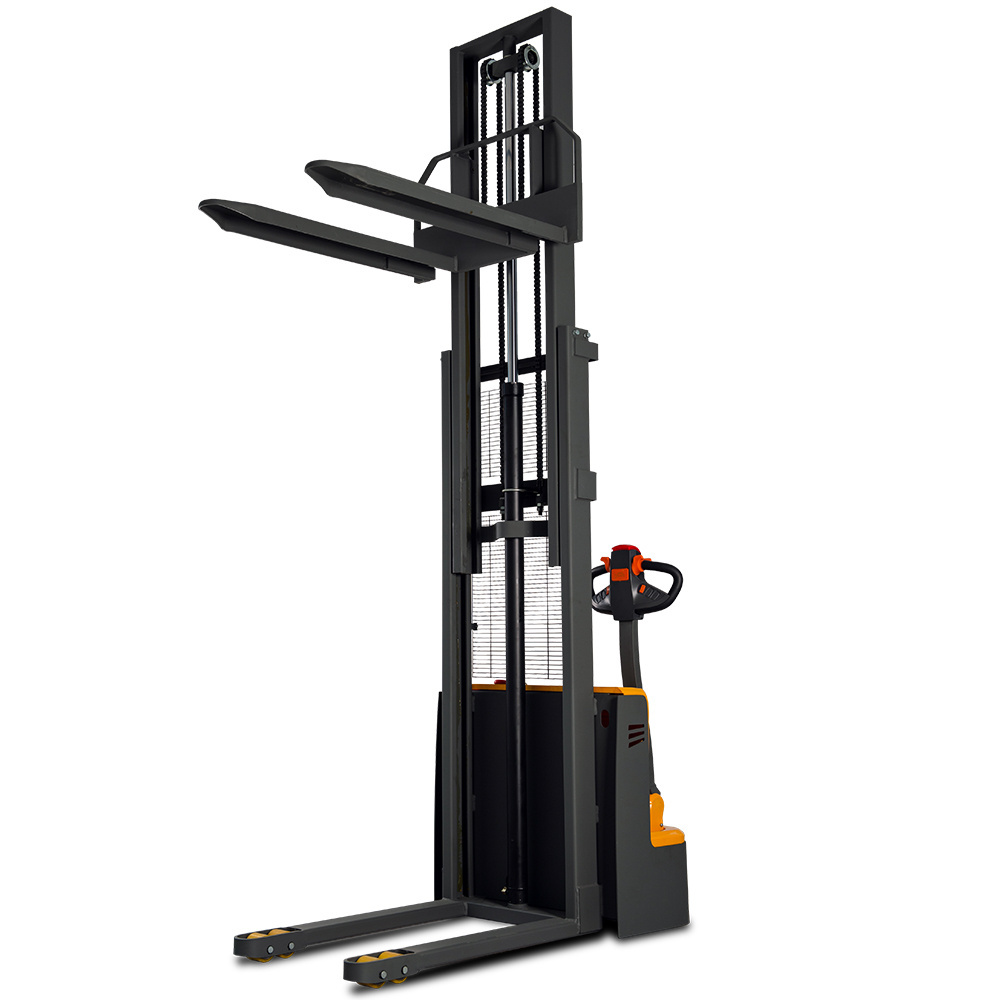

KAD 1000kg Fully Electric Powered Walkie Automatic Pallet Stacker
The model is suitable for lifting and moving in small and medium warehouse and manufacturing facilities, where medium height rack system with narrow aisle is applied. However, the demands in big factories places also increases dramatically recently, where either have similar material storage area, or have individual working areas need self-respond equipment.
KAD 1000kg Fully Electric Powered Walkie Automatic Pallet Stacker
|
Model
|
|
CDD10 CDD15
|
CDD10 CDD16
|
|
|||
|
Features
|
Drive system
|
|
|
Battery
|
|||
|
|
Driving mode
|
|
|
Walkie
|
|||
|
|
Load Capacity
|
Q
|
KG
|
1000
|
|||
|
|
Load Center
|
C
|
MM
|
500
|
|||
|
Weight
|
Weight(With battery)
|
|
KG
|
480/495/515/535
|
|||
|
Wheels
|
Material
|
|
|
PU
|
|||
|
Size
|
Lifting Height
|
H3
|
MM
|
1600/2000/2500/3000
|
|||
|
|
Lowest Mast
|
H1
|
MM
|
2080/1580/1830/2080
|
|||
|
|
Max.Height
when operating |
|
MM
|
2080/2730/3230/3730
|
|||
|
|
Min.Height of Fork
|
H4
|
MM
|
≤90
|
|||
|
|
Length
|
H13
|
MM
|
1770
|
|||
|
Size
|
Width
|
L1
|
MM
|
850
|
|||
|
|
Fork Length
|
B1
|
MM
|
1070
|
|||
|
|
Wheelbase
|
L
|
MM
|
1250
|
|||
|
|
Fork Outside Width
|
Y
|
MM
|
680
|
|||
|
|
Fork Inside Width
|
B5
|
MM
|
305
|
|||
|
|
Min.Turning Radius
|
|
MM
|
1390
|
|||
|
Performance data
|
Driving Speed
（Empty/Full Load） |
WA
|
MM/S
|
5.0/5.0
|
|||
|
|
Lifting Speed
（Empty/Full Load） |
|
MM/S
|
140/135
|
|||
|
|
Descending Speed
（Empty/Full Load） |
|
MM/S
|
150/155
|
|||
|
|
Max.Gradient
（Empty/Full Load） |
|
°
|
7/5
|
|||
|
|
Brake
|
|
|
Electromagnetic brake
|
|||
|
|
Driving Motor
|
|
KW
|
DC/0.75
|
|||
|
|
Lifting Motor
|
|
KW
|
DC/2.2
|
|||
|
Battery
|
Capacity
|
|
V/Ah
|
24/80Ah
|
|||
Main Features
1.With explosion-proof valve at the bottom of cylinder, even if the pipe burst, the mast will not rapidly decline
2.There is a Turtle speed control button on the behind of control handle, which is more economic when operating.
3.Curtis controller
4.Operating handle is on the side, allowing operators to work with greater vision.
Matching
1.Special purpose for cold storage
2.Extension fork/Leg
3.Safety arm
4.Fast and Slow Proportional Rise and Decline
Detailed Images
Machine Parts
Operation panel
Combined with the key, battery indicator, emergency switch. Functional panel and beautiful design make work joyful and easy.
Combined with the key, battery indicator, emergency switch. Functional panel and beautiful design make work joyful and easy.
Machine Parts
Strong cylinder and chain make fork run smoothly.
1-stage,2-stage,3-stage mast can be selected.
Main Features
Side positioned drive system and strong caster, easy to manage stability.
