Product Name:
-
Vortex Flow meter, Steam Flow Meter
-
Application:
-
gas steam liquid flow measurement
Quick Details
-
Type:
-
Vortex Flow Meter
-
Material:
-
stainless steel, Stainless Steel 316L
-
Warranty:
-
18 months
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
AUTO
-
Model Number:
-
LUGB
-
Temperature:
-
-40~350C
-
Pressure:
-
≤2.5Mpa/4Mpa/10Mpa
-
Pipe size:
-
DN20~DN600mm
-
Accuracy:
-
1.0%
-
Power supply:
-
24VDC or Battery
-
Output signal:
-
4-20mA/Pulse/Frequency
-
Communication:
-
RS485 Modbus/HART
-
Product Name:
-
Vortex Flow meter, Steam Flow Meter
-
Application:
-
gas steam liquid flow measurement

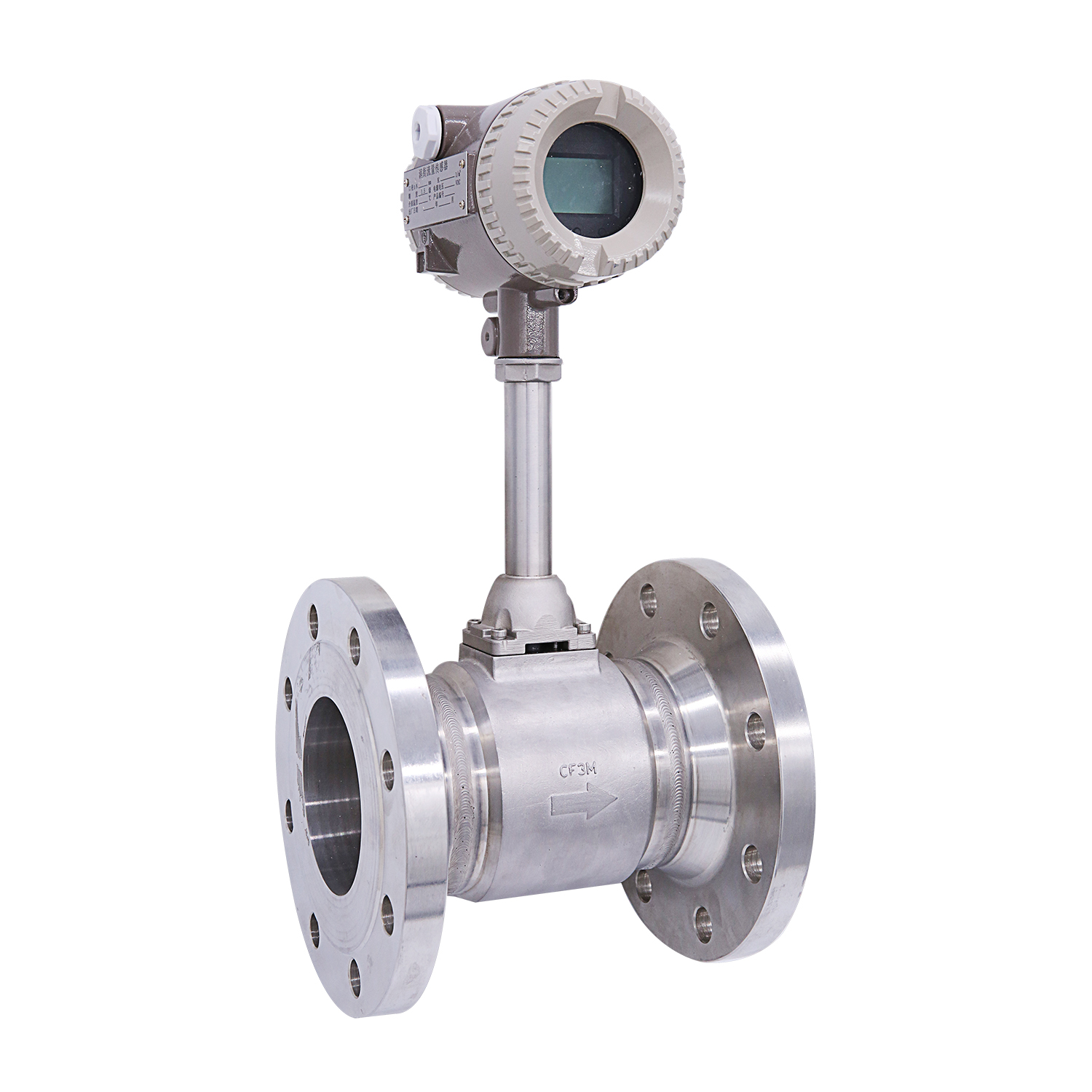

Vortex Flow Meter Natural Gas Flowmeter Indicator Steam Volume Flow Transmitter
vortex flow meter
Product Introduction
vortex flow meter with RS 485 or HART protocol is based on Carmen (Karman) vortex principle,
it can measure the gas, steam or volume flow rate of the liquid, volume flow of standard conditions
or mass flow .Also it can be applied as a flow transmitter for automation and control systems.
|
Vortex flow sensor( JB/T9249-1999 ) |
||||
|
Vortex flow meter( JJG1029-2007 ) |
||||
|
Flow meter classification |
Vortex sensor, Smart display vortex flow meter, Temperature and pressure compensation vortex flow meter , insertion type vortex flow meter
|
|||
|
Medium |
Steam, compressed air, coal gas, liquid and other high-velocity medium |
|||
|
Meter diameter and connections |
DN15-DN300 flange connection or flange clamp |
|||
|
|
DN200-DN1500 is insertion type |
|||
|
Flange Standard |
GB/T9119-2000, Standard ANSI, standard JIS can be customized |
|||
|
Power supply |
24VDC or 3.6V Lithium batteries,Power Consumption < .5W |
|||
|
Output |
4-20mA or pulse output |
|||
|
RS485communication,or MODBUS-RTUcommunication . |
||||
|
Accuracy Grade |
Liquid |
±1.0%R( Pipeline ) ±2% ( Plug-in ) |
||
|
|
Gas or steam |
±1.5%R( Pipeline ) ±2.5% ( Plug-in ) |
||
|
Repeatability |
Lliquid |
≤0.2% |
||
|
|
Gas or steam |
≤0.5% |
||
|
Range ratio |
1:10-1:20 |
|||
|
Using condition |
Medium temperature |
T2( medium temperature type) |
-40℃~+280℃ |
|
|
|
|
T3( High temperature type ) |
280 ℃~+350℃ |
|
|
|
pressure |
1.6MPa ,2.5MPa,4MPa |
|
|
|
|
Ambient temperature |
-20℃~+60℃ |
||
|
|
Atmospheric pressure |
86KPa~106KPa |
||
Scope:
Gas : air, compressed air, oxygen, carbon dioxide, nitrogen gas, natural gas, methane gas, ammonia gas etc.
Steam: superheated steam, saturated steam.
Liquid: water, oil
Application area
Vortex flow meters are widely used in large, medium and small variety of pipes ,for drainage,
industrial recycling, sewage treatment, oil and chemical reagents .As well as measuring
compressed air, saturated and superheated steam metering,natural gas.
Gas: air, compressed air, oxygen, carbon dioxide, nitrogen gas, natural gas, methane gas,
ammonia gas etc.
Steam
: superheated steam, saturated steam.
Liquid: water, oil
