Quick Details
-
Voltage:
-
380V,50HZ,3 phase
-
Disc Dia.:
-
as you requirement
-
No Load Speed:
-
25500m³/h,0.35m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LONGXIANG
-
Model Number:
-
LX E2
-
Warranty:
-
one year
-
Heating System:
-
BELIMO 20N electric damper
-
Heat Exchanger:
-
1.5mm thickness SUS304 stainless steel
-
Max.temperature:
-
80℃,heating time:4-6min(20-60℃), fuel consumption is 6-8kg/vehicle
-
Inlet fan:
-
2*4kw double-intake
-
Outlet fan:
-
25500m³/h for each set
-
airflow speed:
-
320times/h
-
Wall panel:
-
High quality galvanized steel roof panel.
-
Basement:
-
alvanized steel assemble
-
Total power:
-
18.5KW
-
Voltage/Frequency:
-
380V,50HZ,3 phase
Quick Details
-
Power:
-
46KW
-
External Size:
-
7000*5650*3400mm
-
Internal Size:
-
6900*3900*2650mm
-
Voltage:
-
380V,50HZ,3 phase
-
Disc Dia.:
-
as you requirement
-
No Load Speed:
-
25500m³/h,0.35m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LONGXIANG
-
Model Number:
-
LX E2
-
Warranty:
-
one year
-
Heating System:
-
BELIMO 20N electric damper
-
Heat Exchanger:
-
1.5mm thickness SUS304 stainless steel
-
Max.temperature:
-
80℃,heating time:4-6min(20-60℃), fuel consumption is 6-8kg/vehicle
-
Inlet fan:
-
2*4kw double-intake
-
Outlet fan:
-
25500m³/h for each set
-
airflow speed:
-
320times/h
-
Wall panel:
-
High quality galvanized steel roof panel.
-
Basement:
-
alvanized steel assemble
-
Total power:
-
18.5KW
-
Voltage/Frequency:
-
380V,50HZ,3 phase

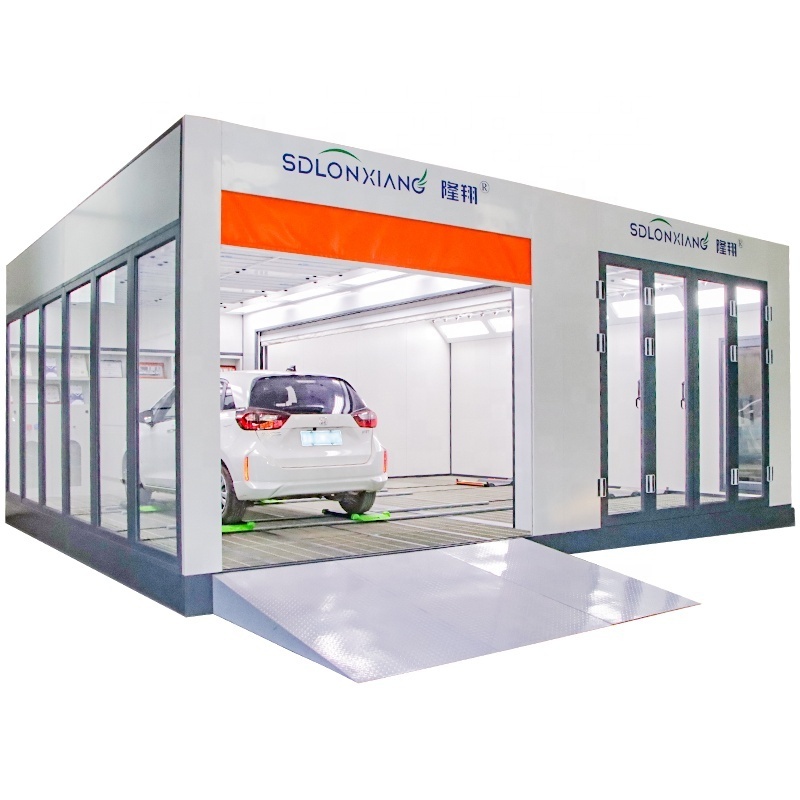

Products Description
|
|
|
LX-E2
|
|
|
|||
|
Outside size
|
|
7000×5350×3400mm(L×W×H)
|
|
|
|||
|
Inside size
|
|
6900×3900×2650mm(L×W×H)
|
|
|
|||
|
Entrance door
|
|
3 folds，3000x2600 mm(W×H), bending steel door
|
|
|
|||
|
Emergency door
|
|
650*2000mm(W*H), equipped with handle lock
|
|
|
|||
|
Cabin system
|
Wall panel
|
--Sandwich style EPS 50mm, 0.4mm thick steel, anti-flame and heat- insulation.
--High quality galvanized steel roof panel.
|
|
|
|||
|
|
|
--Galvanized steel assemble, 280 mm high, with steel structure support, 2 rows grills, 3 rows of diamond plates.
--2 ramps, external setting, 620*2000 mm(W*L)/pc
|
|
|
|||
|
|
Inlet fan
|
1*7.5kw turbo fans, each set air capacity: 25000m³/h, direct drive.
|
|
|
|||
|
|
Outlet fan
|
1*7.5kw turbo fans, each set air capacity: 25000m³/h, direct drive.
|
|
|
|||
|
|
|
--Intake air from side upper, adopt powder quadrate steel frame, strong and beautiful.
--Cabinet for the fan*1unit, air duct * 2 units. --Elbow: 90°*1 unit. |
|
|
|||
|
|
Airflow speed
|
On-load speed: 0.4m/s, ventilation rate: 320 times/h
|
|
|
|||
|
Heating system
|
Electric
|
Adopt High efficiency short wave infrared lamp, 10 sets of 3KW far-infrared lamp. Maximum operating temperature: 80℃.
|
|
|
|||
|
|
Ceiling lights
|
8units*4pieces*16w LED Lighting
|
|
|
|||
|
|
Side lights
|
Optional
|
|
|
|||
|
|
Primary filter
|
Grade G2 plate type , filtering rate＞83%
|
|
|
|||
|
|
Ceiling filter
|
EU5 grade high efficient filter, filtering rate＞98%
|
|
|
|||
|
|
Floor filter
|
Multi-layer fiberglass filter, filtering rate＞70%
|
|
|
|||
|
Control system
|
Control panel
|
Intelligent control system
|
|
|
|||
|
|
Function
|
Lighting, temperature time setting, painting, constant temperature painting, baking, emergency stop, failure indication, etc
|
|
|
|||
|
Total power
|
46.5 KW
|
|
|
|
|||
|
Voltage/frequency
|
380V, 50HZ, 3phase
|
|
|
|
|||
