Quick Details
-
Brand Name:
-
qing ya
-
Product name:
-
Industrial Ceramics High purity 99 alumina ceramic tube
-
Density:
-
3.85g/cm3
-
Color:
-
Ivory White Yellow Pink
-
Item:
-
Al2o3 Tube
-
material:
-
high alumina
-
Purity:
-
50%, 75%, 85%, 95%, 99% Al2O3
-
Temperature:
-
1800 degreeC
-
Keywords:
-
ceramic tube
-
Feature:
-
insulation , wear resistance
-
Advantage:
-
Competitive
Quick Details
-
Material:
-
Alumina Ceramic
-
Place of Origin:
-
Hunan, China
-
Model Number:
-
QY- CT01
-
Brand Name:
-
qing ya
-
Product name:
-
Industrial Ceramics High purity 99 alumina ceramic tube
-
Density:
-
3.85g/cm3
-
Color:
-
Ivory White Yellow Pink
-
Item:
-
Al2o3 Tube
-
material:
-
high alumina
-
Purity:
-
50%, 75%, 85%, 95%, 99% Al2O3
-
Temperature:
-
1800 degreeC
-
Keywords:
-
ceramic tube
-
Feature:
-
insulation , wear resistance
-
Advantage:
-
Competitive

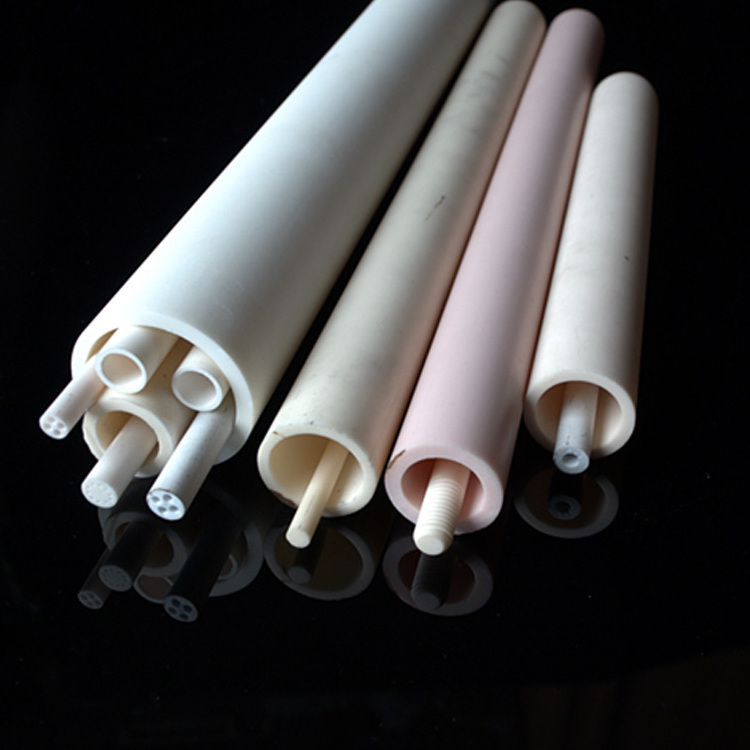

Refractory insulation 95% 99% porous hollow alumina ceramic tube
Ordinary alumina ceramics are classified into 99 porcelain, 95 porcelain, 90 porcelain, 85 porcelain, etc. according to the content of Al2O3. Sometimes the content of Al2O3 is 80% or 75%, which is also classified into ordinary alumina ceramic series. Among them, 99 alumina ceramic materials are used to make high temperature crucibles, refractory furnace tubes and special wear-resistant materials, such as ceramic bearings, ceramic seals and water valve sheets; 95 alumina ceramics are mainly used as corrosion-resistant and wear-resistant parts; In addition, due to the incorporation of part of talc, the electrical properties and mechanical strength are improved, and it can be sealed with metals such as molybdenum, niobium and tantalum, and some are used as electric vacuum devices.
Specification :
ceramic alumina tube , alumina content 95% - 99.7%,White or Ivory , Wear-resisting and acidproof alkali corrosion , High temperature (1600-1700 degree centigrade) . Good chemical stability,high insulation, strong adsorption capacity, is a nice electrical insulation and wear-resisting material.
| Composition | AL97 | AL98 |
| AL2O3 Content | 97% | 99.80% |
| Color | White | Ivory |
| Tensile | 30 Kpsi | 32 Kpsi |
| Flexural | 55 Kpsi | 60 Kpsi |
| Compressive | 300 Kpsi | 330 Kpsi |
| Density | 3.7 g/cc | 3.92 g/cc |
| Hardness | 13.8 HV, Gpa | 18 HV, Gpa |
| Thermal Conductivity | 25 W/(m K) | 32 W/(m K) |
| C.O.T.E. | 77 In / In°C (x10^7) | 78 In / In°C (x10^7) |
| Working Temperature | 1500 °C | 1750 °C |
| Dielectric Constant | 9.5 | 9.8 |
| Volume Resistivity | >10^14 Ohm-cm | >10^15 Ohm-cm |
| Dielectric Strength | 16 KV/mm | 20 KV/mm |
Product Features:
1.excellent electrical insulation.
2.good thermal conductivity.
3.corrosion & erosion resistant.
4.thermal shock resistant.
5.high working temperature.
6.low thermal expansion.
7.very hard, wear resistant.
8.high mechanical strength.
9.flexible custom production.
Application :
Widely used in lamps and lanterns, electronic appliances, blast nozzle, auto parts, wear-resistant parts of insulating material, etc
We can do OEM and OBM according to your drawing and requires
