Quick Details
-
Power:
-
60kw
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DIG-DOG
-
Maximum Digging Height:
-
2.3~4.5m
-
Maximum Digging Depth:
-
1.2~2.6m
-
Machine Weight:
-
2000 kg
-
Max Digging Radius:
-
2.4~3.8M
-
Rated Speed:
-
0-5 km/h
-
Name:
-
Amphibious Excavator
-
Operation Type:
-
Joystick Pilot control
-
Certification:
-
CE / ISO
-
Applied excavators:
-
3-50 Ton, Customized
Quick Details
-
Operating Weight:
-
35 Ton, 3ton, 7TON, 6TON, 2ton, 4ton, 25 ton, 15 Ton, 9 ton, 8 Ton, 5ton, 45 Ton, 10 TON, 20 Ton, 40 ton
-
Bucket capacity:
-
0.02-0.26 m³
-
Engine Brand:
-
Doosan
-
Power:
-
60kw
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DIG-DOG
-
Maximum Digging Height:
-
2.3~4.5m
-
Maximum Digging Depth:
-
1.2~2.6m
-
Machine Weight:
-
2000 kg
-
Max Digging Radius:
-
2.4~3.8M
-
Rated Speed:
-
0-5 km/h
-
Name:
-
Amphibious Excavator
-
Operation Type:
-
Joystick Pilot control
-
Certification:
-
CE / ISO
-
Applied excavators:
-
3-50 Ton, Customized
Dig-Dog◎2023 All Rights Reserved

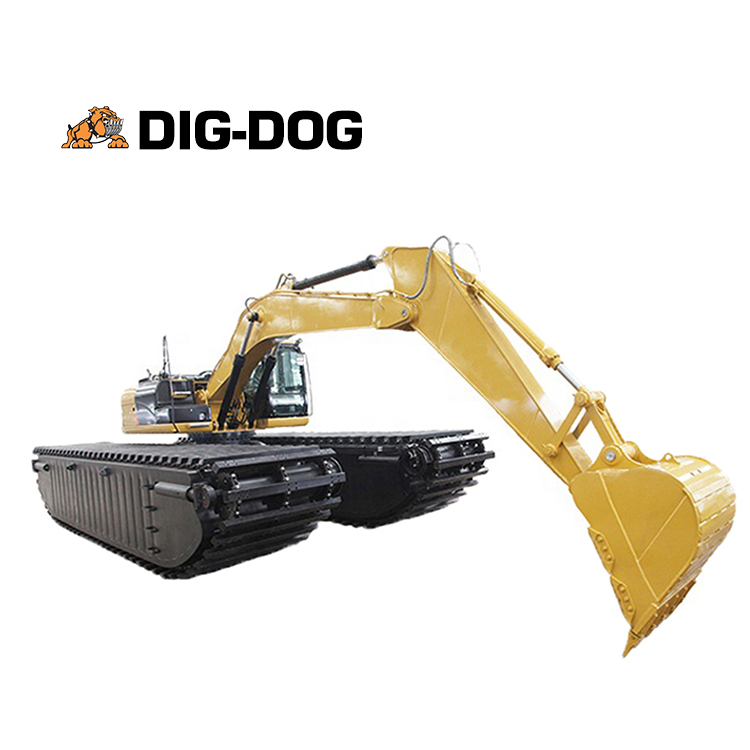

High quality DIG-DOG
Amphibious Pontoon Excavator for Sale
DIG-DOG AP150 amphibious excavators are widely used in river dredging, watershed management, wet embankment and other work, on the river, river, lake, sea, beach resources development and environmental remediation operations are of great help. The vehicle is equipped with imported engine and hydraulic system, and the operation efficiency and reliability are higher. Walking device with sealed box, 5 times the conventional excavator grounding area can be adapted to very soft ground, wetlands, swamps. Three rows of walking chains ensure safe and reliable walking in the water.
>>>
send inquiry
Customer Photos
DIG-DOG's a
mphibious
pontoon adopts a hollow structure to provide enough buoyancy, so that the whole machine floats on the water surface, ensuring that the whole machine can be transferred in deep waters, and can guarantee a maximum working water depth of 14 meters. Convenient. DIG-DOG's
amphibious
pontoon adopts a three-row chain structure to improve the safety of walking in water. The unique structure makes disassembly and assembly more convenient.
Top Features & Benefits
Bolt Tension chain
IMore convenient
to tighten the butter
Adjust the tension of the track.
Butter Tension Chain
Cost-effective bolt tightening.
Later maintenance
costs are lower
Slewing platform
Four high-pressure cut-off valves to prevent hydraulic oil leakage during disassembly
Floating tank -
semi-automatic telescopic
Use the traveling oil circuit
to control the telescoping function
Floating tank -
fully automatic telescopic
In-cab controls are done.
Semi-automatic and fully automatic options
for positioning piles of the pontoon. There are inspection holes inside the pontoon and equipped with travel motors.
Engine
An lmported lsuzu engine that provides powerful performance and low fuel consumption. The overall system is optimised to provide a comprehensive performance upgrade.
Latest fuel filter
The latest fuel filer improves filtration and ensures oil inlet quality, thus improving the reliability of the machine under harsh operating conditions.
An lmported lsuzu engine that provides powerful performance and low fuel consumption. The overall system is optimised to provide a comprehensive performance upgrade.
Latest fuel filter
The latest fuel filer improves filtration and ensures oil inlet quality, thus improving the reliability of the machine under harsh operating conditions.
Product Paramenters
|
DIG-DOG Amphibious Pontoons For Excavators
|
DIG-DOG
Amphibious Potoons
|
|
|
|
|
|
|
|||||||
|
Models
|
AP50
|
AP80
|
AP180
|
AP200
|
AP250
|
AP300
|
AP350
|
|||||||
|
For excavator
|
3-5T
|
6-8T
|
16-19T
|
20-24T
|
25-27T
|
27-30T
|
30-40T
|
|||||||
|
Pontoon Grounded Length
|
1000
|
2000
|
2500
|
3500
|
5000
|
6500
|
7000
|
|||||||
|
Undercarriage Length
|
4000
|
5700
|
6800
|
7500
|
9500
|
10500
|
11500
|
|||||||
|
Overall Height
|
3500
|
3700
|
3810
|
3950
|
3950
|
4200
|
4140
|
|||||||
|
Counterweight Ground Clearance
|
1300
|
1400
|
1800
|
1890
|
2010
|
2015
|
2200
|
|||||||
|
Spuds Height
|
6500
|
6200
|
6300
|
8300
|
8000
|
8300
|
12000
|
|||||||
|
Overall Width
|
4700
|
5200
|
6300
|
7000
|
6800
|
8000
|
8000
|
|||||||
|
Pontoon Height
|
1200
|
1340
|
1640
|
1640
|
1840
|
1840
|
2040
|
|||||||
|
Track Gauge
|
2700
|
3500
|
3600
|
3700
|
3700
|
3700
|
4700
|
|||||||
|
Pontoon Width
|
1000
|
1300
|
1500
|
1500
|
1500
|
2000
|
2000
|
|||||||
|
Spuds Cross Range
|
3500
|
4000
|
4500
|
5000
|
5600
|
6000
|
6000
|
|||||||
|
Spuds Width
|
4100
|
4900
|
5560
|
5560
|
5600
|
6800
|
7000
|
|||||||
Details Images
We only use genuine seanless hydraulic lines and are subjected to pressure testing prior to installation
All steel material is processed by CNC machines to ensure a high level of precision and consistency
Hydraulic piston motor from Doosanor Rexroth
Premium grade flex able hose
Well-experienced and qualified Welder
to ensure the welding quality
Sandblast process creates a unique steel surface texture that provides excellent cohesion
for paint coating
Customized for
Amphibious Excavator
Amphibious excavator
with positioning pile
Amphibious working platform
Amphibious Transport Vehicle
Amphibious Conveyor
