- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Park, Walkway ,roof ,grass garden Lot
-
Design Style:
-
Industrial
-
Place of Origin:
-
Shandong, China, taian, China
-
Brand Name:
-
best, best
-
Type:
-
500x500x30cm
-
application:
-
Park, Walkway ,roof ,grass garden Lot
-
material:
-
pp
-
color:
-
black, white,green customizable
-
Height:
-
30mm
-
width:
-
500mm
-
Keyword:
-
Drainage Board
-
Usage:
-
Greening System
-
Length:
-
500mm
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement, Other
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation, Others
-
Application:
-
Park, Walkway ,roof ,grass garden Lot
-
Design Style:
-
Industrial
-
Place of Origin:
-
Shandong, China, taian, China
-
Brand Name:
-
best, best
-
Type:
-
500x500x30cm
-
application:
-
Park, Walkway ,roof ,grass garden Lot
-
material:
-
pp
-
color:
-
black, white,green customizable
-
Height:
-
30mm
-
width:
-
500mm
-
Keyword:
-
Drainage Board
-
Usage:
-
Greening System
-
Length:
-
500mm
product overview

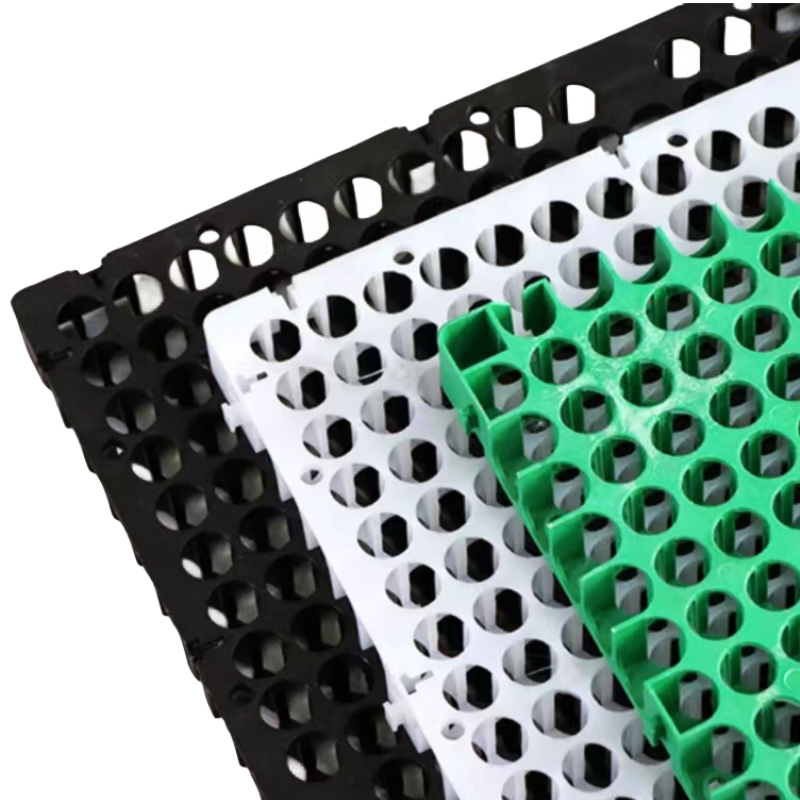

Drain cell, also drainage cell, waterproofing drain membrane, drain sheet is made of high polyethylene raw material in a flexible, honeycomb design of subsoil HDPE modular drainage layer. Drainage Cell is the widely used drainage cell system which is applied for the construction of roof gardens, plaza decks, basements, pond filtration systems, concealed drains and in situ drains and sports fields. The long term pressure resistance not only can resist weight of concrete bottom plate and its load, but also can bear unavoidable outside pressure and impact force during construction such as vehicle, worker stepping, concrete pouring impact force.
Product Description
1. High strength and light load. Compared with the conventional process, the plastic drainage board and geotextile are combined,which have multiple functions such as drainage, waterproofing, ventilation, moisture retention, and partitioning;
2. The multiple fulcrum pointsplastic drainage cell form a gap between the building surface layer and the structural layer, which has the functions of moisture insulation, drainage, and heat insulation.
3.The water can be partially stored and the remaining water can be drained quickly.
4.It provides sufficient moisture and oxygen for plant production.
5.Light weight, Convenient construction, easy maintenance and economy.
2. The multiple fulcrum pointsplastic drainage cell form a gap between the building surface layer and the structural layer, which has the functions of moisture insulation, drainage, and heat insulation.
3.The water can be partially stored and the remaining water can be drained quickly.
4.It provides sufficient moisture and oxygen for plant production.
5.Light weight, Convenient construction, easy maintenance and economy.
|
Products Name
|
manufacturer of drainage cell
|
|
Size
|
500x500x30mm
|
|
Material
|
HDPE(high density polyethylene)and Polypropylene
|
|
Thickness
|
30mm
|
|
Tensile loading
|
>1000kpa
|
|
Drain capacity
|
25----30cm³/s
|
|
Internal Void Area
|
>95%
|
|
Service Temperature
|
-25°C to 130°C
|
|
Application
|
roof, garage, parking lot, retaining wall, basement
|
|
Product model
|
Can be customized according to customer needs
|
Product Features
1. High strength and light load. Compared with the conventional process, the plastic drainage board and geotextile are combined, which have multiple functions such as drainage, waterproofing, ventilation, moisture retention, and partitioning;
2.The multiple fulcrum pointsplastic drainage cell form a gap between the building surface layer and the structural layer, which has the functions of moisture insulation, drainage, and heat insulation.
3.The water can be partially stored and the remaining water can be drained quickly.
4.It provides sufficient moisture and oxygen for plant production.
5.Light weight, Convenient construction, easy maintenance and economy.
2.The multiple fulcrum pointsplastic drainage cell form a gap between the building surface layer and the structural layer, which has the functions of moisture insulation, drainage, and heat insulation.
3.The water can be partially stored and the remaining water can be drained quickly.
4.It provides sufficient moisture and oxygen for plant production.
5.Light weight, Convenient construction, easy maintenance and economy.
Products Application
1.Greening project: the garage roof greening, roof garden, vertical greening, roof greening, football pitches, golf course, etc.
2.Municipal engineering: airport, road embankment, subway, tunnel, landfill, etc.
3.Construction: the upper or lower building foundation, inside and outside the basement wall, floor and roof, roof seepage control and heat insulation layer, etc.
4.Water conservancy project: the reservoir seepage water, reservoir, lake water seepage control, etc.
5.Traffic engineering: highway, railway basement, roadbed, dam and slope protection layer, etc.
2.Municipal engineering: airport, road embankment, subway, tunnel, landfill, etc.
3.Construction: the upper or lower building foundation, inside and outside the basement wall, floor and roof, roof seepage control and heat insulation layer, etc.
4.Water conservancy project: the reservoir seepage water, reservoir, lake water seepage control, etc.
5.Traffic engineering: highway, railway basement, roadbed, dam and slope protection layer, etc.
