Quick Details
-
Model Number:
-
SR-501
-
usage:
-
Winding
-
Winding speed:
-
0-3200rpm
-
Applicable wire diameter:
-
0.5-2mm
-
Turning diameter:
-
0-280mm
-
Winding Width:
-
0-210mm
-
Power supply:
-
220V±10% 50HZ
-
Power:
-
700W
-
Sequence Motor:
-
Two-phase hybrid stepper motor
-
size:
-
400*310*660mm
-
weight:
-
55KG
Quick Details
-
Usage:
-
wire harness testing
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sinrad
-
Model Number:
-
SR-501
-
usage:
-
Winding
-
Winding speed:
-
0-3200rpm
-
Applicable wire diameter:
-
0.5-2mm
-
Turning diameter:
-
0-280mm
-
Winding Width:
-
0-210mm
-
Power supply:
-
220V±10% 50HZ
-
Power:
-
700W
-
Sequence Motor:
-
Two-phase hybrid stepper motor
-
size:
-
400*310*660mm
-
weight:
-
55KG

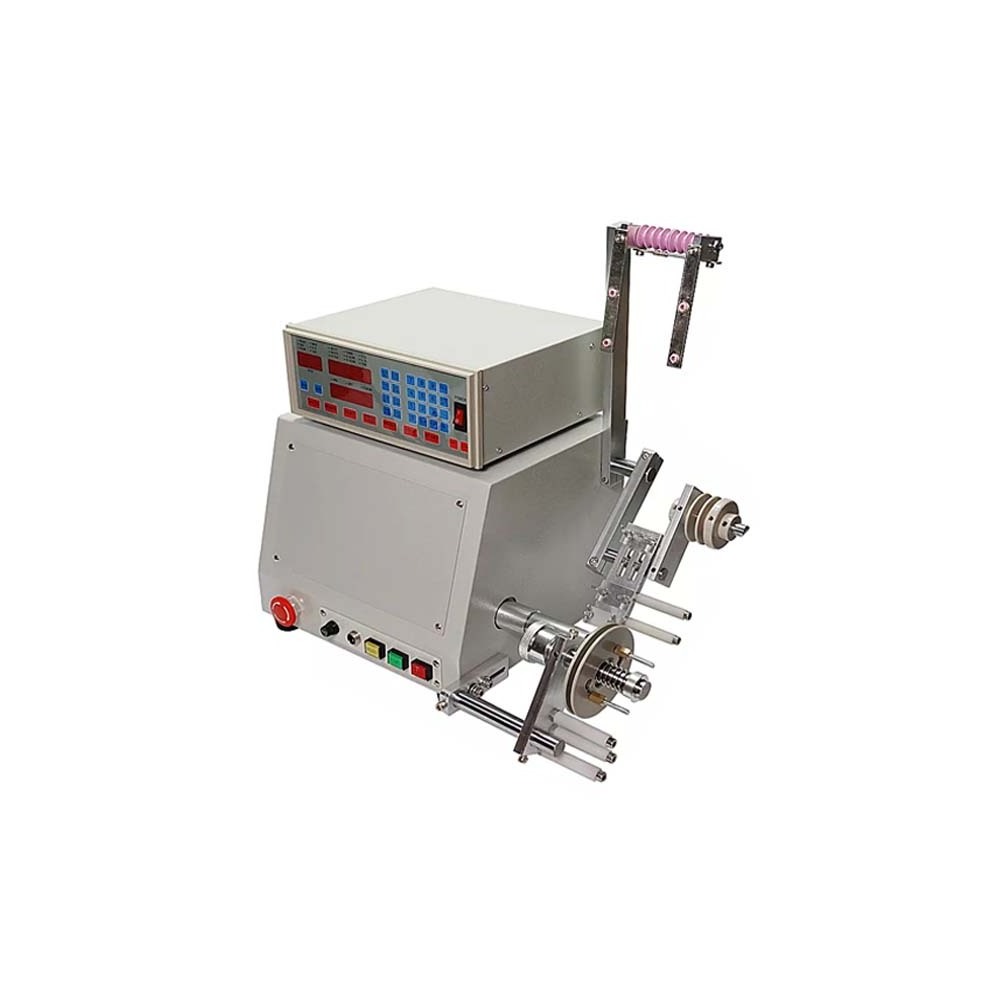

Product Description
Suitable for small and medium-sized transformers, relays, high-voltage packages,
inductance
, synchronous motors, shaded-pole motors, solenoid valves and other coils with smaller diameters.
Have different models:
Single-axis,Double-axis,Four-axis,Six-axis,Eight-axis
Specification
|
Model
|
SR-501
|
SR-502
|
SR-504
|
SR-506
|
SR508
|
|
Spindles head
|
1
|
2
|
4
|
6
|
8
|
|
Winding speed
|
0-3200rpm
|
0-5000rpm
|
0-6000rpm
|
0-8000rpm
|
0-10000rpm
|
|
Applicable wire diameter
|
0.5-2mm
|
0.06-1mm
|
0.04-0.6mm
|
0.03-0.35mm
|
0.03-0.35mm
|
|
Turning diameter
|
0-280mm
|
0-100mm
|
0-80mm
|
0-50mm
|
0-50mm
|
|
Winding Width
|
0-210mm
|
0-110mm
|
0-110mm
|
0-60mm
|
0-60mm
|
|
Power supply
|
220V±10% 50HZ
|
220V±10% 50HZ
|
220V±10% 50HZ
|
220V±10% 50HZ
|
220V±10% 50HZ
|
|
Power
|
700W
|
700W
|
700W
|
700W
|
700W
|
|
Sequence Motor
|
Two-phase hybrid stepper motor
|
Two-phase hybrid stepper motor
|
Two-phase hybrid stepper motor
|
Two-phase hybrid stepper motor
|
Two-phase hybrid stepper motor
|
|
Spindle Motor
|
550W + 750W inverter
|
550W + 750W inverter
|
550W + 750W inverter
|
550W+1HP inverter
|
550W+1HP inverter
|
|
Size
|
400*310*660mm
|
410*450*118mm
|
800*450*1200mm
|
900*700*1570mm
|
1060*700*1570mm
|
|
Weight
|
55KG
|
80KG
|
90KG
|
115KG
|
150KG
|
Features
1.High-speed control chip, reducing operation error and ensuring sequence accuracy.
2.Sequence reversing intelligent deceleration,faster sequence and greater sequence torque.
3.All input and output are photoelectrically isolated, which can effectively avoid external interference and ensure stable operation.
4.Power off to save winding data, effectively avoid scrap coils.
5.Intelligent input of winding point and sequence width, easy to debug.
6.The spindle climbing time can be set, the spindle speed can be raised and lowered in real time, and the over speed tracking.
2.Sequence reversing intelligent deceleration,faster sequence and greater sequence torque.
3.All input and output are photoelectrically isolated, which can effectively avoid external interference and ensure stable operation.
4.Power off to save winding data, effectively avoid scrap coils.
5.Intelligent input of winding point and sequence width, easy to debug.
6.The spindle climbing time can be set, the spindle speed can be raised and lowered in real time, and the over speed tracking.
Packing & Delivery
All the machines are with safety packing. Small machines would be packed into a carton box.
Large machines would be wooden case package.
Large machines would be wooden case package.
