Quick Details
-
Max. Spindle Speed (r.p.m):
-
4500 r.p.m
-
Max. Weight of Workpiece(kg):
-
Enquiry us
-
Spindle Bore(mm):
-
56mm
-
Width of bed (mm):
-
32 mm
-
Spindle Motor Power(kW):
-
5.5
-
Max. Turned Length (mm):
-
150
-
Travel (X Axis)(mm):
-
670 mm
-
Travel (Z Axis)(mm):
-
250 mm
-
Place of Origin:
-
Guangdong, China
-
Dimension(L*W*H):
-
2250x1500x1950 mm
-
Brand Name:
-
DAS
-

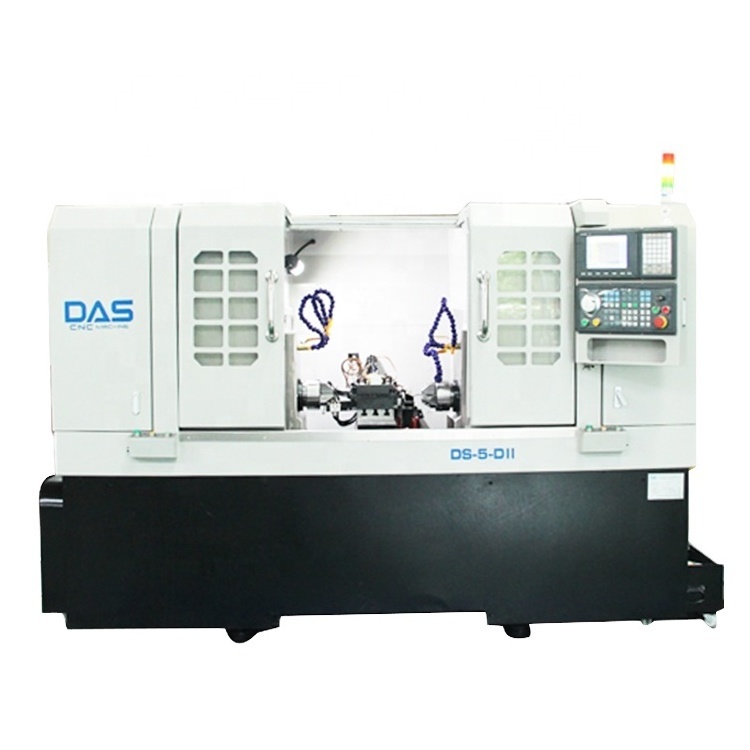

Model Number:
-
DS-5-DII
-
Voltage:
-
220V/380V,50HZ
-
Weight (KG):
-
2800
-
Applicable Industries:
-
Metal ,Aluminum spare part
-
CNC or Not:
-
CNC
-
Cnc lathe tools Warranty:
-
12 Months
-
After-sales Service Provided:
-
we have technology team help you
-
unit head motor power(kw):
-
standard 1.3/optional 1.8
-
unit head speed:
-
1-4500(r/min)
-
unit head motor torque:
-
4.5/(6.2)mm
-
unit head structure:
-
1 with 2 gear (double short axis)
-
Keywords:
-
cnc cutting drilling lathe
-
Name:
-
Metal Cnc Lathe
-
Machine Type:
-
Flat Bed CNC Lathe
Quick Details
-
Type:
-
slant bed
-
Max. Length of Workpiece (mm):
-
150mm
-
Year:
-
New
-
Max. Spindle Speed (r.p.m):
-
4500 r.p.m
-
Max. Weight of Workpiece(kg):
-
Enquiry us
-
Spindle Bore(mm):
-
56mm
-
Width of bed (mm):
-
32 mm
-
Spindle Motor Power(kW):
-
5.5
-
Max. Turned Length (mm):
-
150
-
Travel (X Axis)(mm):
-
670 mm
-
Travel (Z Axis)(mm):
-
250 mm
-
Place of Origin:
-
Guangdong, China
-
Dimension(L*W*H):
-
2250x1500x1950 mm
-
Brand Name:
-
DAS
-
Model Number:
-
DS-5-DII
-
Voltage:
-
220V/380V,50HZ
-
Weight (KG):
-
2800
-
Applicable Industries:
-
Metal ,Aluminum spare part
-
CNC or Not:
-
CNC
-
Cnc lathe tools Warranty:
-
12 Months
-
After-sales Service Provided:
-
we have technology team help you
-
unit head motor power(kw):
-
standard 1.3/optional 1.8
-
unit head speed:
-
1-4500(r/min)
-
unit head motor torque:
-
4.5/(6.2)mm
-
unit head structure:
-
1 with 2 gear (double short axis)
-
Keywords:
-
cnc cutting drilling lathe
-
Name:
-
Metal Cnc Lathe
-
Machine Type:
-
Flat Bed CNC Lathe
Products Description
* Machine tool bediscasting with resin sand, its features strong vibration resistance and difficult deformation. Lathe bed tilts
45° , the inclined placement of lathe carriage and tool holder makes machine tool operation and chip removal more convenient.
CNC36C/46C pleasant design appearance and less space occupation.
* High-precision spindle, comprising Japan NSK precise bearings; Three-jaw hydraulic chuck or other elastic clamp can be directly
fitted on the main shaft flange.
* The drive part of machine tool uses HIWIN/PMI
high precision P3 class ball bearing screw and high speed linear slide rail, a famous brand from Taiwan and is provided with
computer automatic lubrication system for forced lubrication of linear guide rail and ball bearing screw. For X axis and Z
axis, high rigidity linear slide rail is adopted with optimum span between rails through calculation. With low resistance, high
rigidity and high precision, the displacement speed can reach up to 24M/min so as to improve working efficiency and reduce
processing time.
* Machinable for long axial and largeplate of products; Easy to process, slender bar can be equipped with following tool holder
45° , the inclined placement of lathe carriage and tool holder makes machine tool operation and chip removal more convenient.
CNC36C/46C pleasant design appearance and less space occupation.
* High-precision spindle, comprising Japan NSK precise bearings; Three-jaw hydraulic chuck or other elastic clamp can be directly
fitted on the main shaft flange.
* The drive part of machine tool uses HIWIN/PMI
high precision P3 class ball bearing screw and high speed linear slide rail, a famous brand from Taiwan and is provided with
computer automatic lubrication system for forced lubrication of linear guide rail and ball bearing screw. For X axis and Z
axis, high rigidity linear slide rail is adopted with optimum span between rails through calculation. With low resistance, high
rigidity and high precision, the displacement speed can reach up to 24M/min so as to improve working efficiency and reduce
processing time.
* Machinable for long axial and largeplate of products; Easy to process, slender bar can be equipped with following tool holder
|
Name
|
TX600-6P
|
|
The style of installation tool
|
12 position knife tower
|
|
Adjacent tool change time (s)
|
0.4
|
|
Tool change style
|
Rotate
|
|
Square knife knife holder (mm)
|
25×25
|
|
Round hole knife holder (mm)
|
φ25
|
|
|
|
|
With chuck size
|
6 Inch
|
|
Spindle speed (r/min)
|
45-4500
|
|
Spindle bore (mm)
|
φ56
|
|
Center height (mm)
|
80
|
|
The maximum diameter of rotation (mm)
|
500
|
|
Spindle motor power (KW)
|
7.5
|
|
Minimum system Resolution
|
0.001
|
|
X/Z Axis stroke (mm)
|
200/350
|
|
X/Z axis fast moving speed (m/min)
|
26(Factory setting)
|
|
X/Z axis Repetitive positioning accuracy (mm)
|
±0.003
|
|
Taper (mm)
|
≤0.003/100mm
|
|
Card position size (mm)
|
≤0.003
|
|
X servo-motor (KW)
|
1.8
|
|
Z servo-motor (KW)
|
1.8
|
|
Hydraulic station (KW)
|
1.5
|
|
Water tank motor power (KW)
|
180W
|
|
Cooling water tank capacity (L)
|
100
|
|
Power (KW)
|
11
|
|
Weight (KG)
|
3500
|
|
Size (L*W*H mm)
|
2400x1650x1750
|
