Quick Details
-
Gross Vehicle Weight:
-
4275
-
Drive Wheel:
-
4X2
-
Brand Name:
-
FOTON
-
Model Number:
-
BJ3042DBJEA-G1
-
Place of Origin:
-
Hubei, China
-
Size:
-
5800x2065x2350mm
-
Chassis for optional:
-
JMC,JAC,FAW,BEIBEN,SHACMAN,HONGYAN,HOWO,DONGFENG,HINO,FOTON
-
Contact person:
-
Mr. Lisbon Lee
-
Mobile:
-
008615826750255 (Whatsapp)
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
Euro 1
-
Horsepower:
-
< 150hp
-
Gross Vehicle Weight:
-
4275
-
Drive Wheel:
-
4X2
-
Brand Name:
-
FOTON
-
Model Number:
-
BJ3042DBJEA-G1
-
Place of Origin:
-
Hubei, China
-
Size:
-
5800x2065x2350mm
-
Chassis for optional:
-
JMC,JAC,FAW,BEIBEN,SHACMAN,HONGYAN,HOWO,DONGFENG,HINO,FOTON
-
Contact person:
-
Mr. Lisbon Lee
-
Mobile:
-
008615826750255 (Whatsapp)

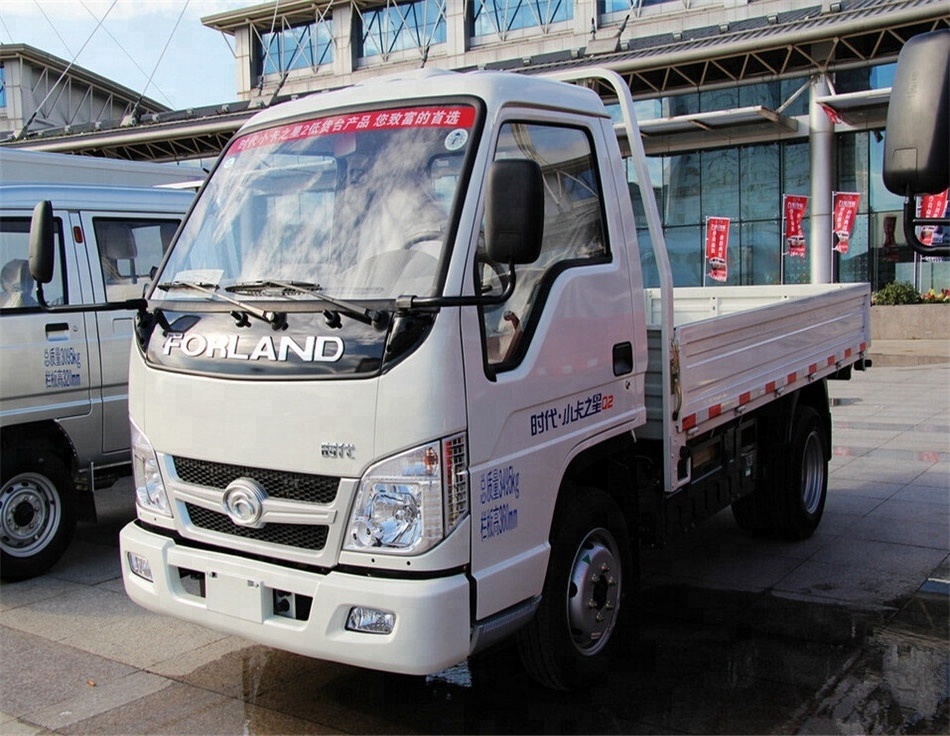

FOTON small cargo truck for Africa
|
Chassis model |
BJ 3042DBJEA-G1 |
|
|
Engine |
||
|
Engine model (E mission standard) |
YN33CRD2 (Euro I ) |
|
|
Engine description |
I n-line /4 cylinders / turbo charged/inter-cooled / diesel engine |
|
|
Rated power of engine (kw/ HP ) |
75/102 |
|
|
Maximum torque (N.m @ rpm) |
265@ 1 600-24 00 |
|
|
D isplacement (L) |
3.298 |
|
|
Gearbox |
||
|
Description |
M anual, 5 forward gears,1 reverse gear |
|
|
Front / Rear axle |
||
|
Front axle load ( Kg ) |
1625 |
|
|
Rear axle load(Kg) |
2650 |
|
|
Drive type |
4X2 |
|
|
Type of tire |
7.00 - 16 |
|
|
Quantity of tires |
6+1 |
|
|
Quantity of leaf spring |
9 / 11+8 |
|
|
Brake system |
Service brake type |
Drum type, air pressure double loop braking |
|
Parking brake type |
Energy storage spring rear wheel braking |
|
|
Steering device |
Left hand drive,p ower steering |
|
|
Weight parameter |
||
|
Curb weight (Kg) |
2590 |
|
|
Rated load(Kg) |
1490 |
|
|
Actual load capacity (Kg) |
3000 |
|
|
Performance parameter |
||
|
Maximum speed (km/h) |
80 |
|
|
Maximum grade ability (%) |
≥ 25% |
|
|
Fuel consumption unloaded (L/100km) |
4.9 |
|
|
General fuel consumption (L/100km) |
10.8 |
|
|
Minimum ground clearance (mm) |
48 0 |
|
|
Dimension parameters |
||
|
Overall dimensions (LxWxH)mm |
5800 × 2065 × 2 350 |
|
|
Internal van dimensions (LxWxH)mm |
380 0× 190 0× 55 0 |
|
|
Wheelbase (mm) |
336 0 |
|
|
Front/rear wheel track (mm) |
1 510 / 1590 |
|
|
Front/rear suspension (mm) |
1 115 / 1395 |
|
|
Cab in |
Single row , metallic painting,fashion dashboard, adjustable steering wheel |
|
FAQ
Q:How about the warranty?
A:One year .
Q:Do you have ISO certificate ?
A:Yes , we have,pl ease contact us to get our certifica te s.
Q:How about the delivery time?
A: Most of our trucks have stock ,we can deliver to you within 7 days, if specially ordered , normally we need around 30 days for production.
Q: How many units of truck does your factory produce per year?
A:Almost 3 0 00 units .Nearly 300Units per month.
Q: How do you control the quality of product?
A:Our Factory has standard production worksh o p,g e t s ISO CCC BV Certificat es ,our workers are well trained. E very unit of product undergoes a rigorous inspection process.
Q: How about your product After-sales service system?
A:Our main export countr ies have accepted after-sales
service,some countries use the third party service.
Q: Do you accept c ustom order? What’s is your MOQ order?
A:Yes, we do, our MOQ is 1 unit .
Q: What’s the payment terms?
A:By T/T or L/C at sight.
Q: How about shipment?
A: 20FT container, 40FT container,40FT high container,
open-top container, flat bed container , Ro-Ro ship or b ulk
s hip according to the size the products.
Q:Which country do you have exported to?
A:We have exporte d to many countries around the world ,
such as :
Albania,Algeria,Angola,Afghanistan,
Bolivia ,
Congo,Cameroon,Chile, Cote d'lvoire ,
Guinea, Ghana
Indonesia,Iran,Iraq,
Jamaica,Jordan,
Kenya,Kuwait,Kazakhstan, Kiribati
Laos,Libya,
Malaysia,Maldives,Morocco,Myanmar,Mongolia,
Nigeria ,
Peru,Philippines ,
Qatar ,
Saudi Arabia,Sudan,South Sudan,
Tajikistan,Turkmenistan,Tanzania,Togo,Tunisia,
Venezuela, Vietnam ,Uzbekistan , Zambia , etc.
Our factory production line:
Aerial working platform truck,
Cement tank transport truck , Concrete mixer truck,
Dump truck /Tipper truck ,
Fire fighting truck, Fecal suction tanker truck
Hook lift garbage truck,
Oil/fuel tank truck,
Refrigerator truck, Refuse collection truck,Road wrecker truck,
Sewage suction truck, Skip loader waster truck, S emi-trailer.
Truck mounted crane,Trash /garbage compactor truck,
W ater/sprinkler truck
If need more detailed information,please feel free to contact me.
Welcome to visit our company in China!
